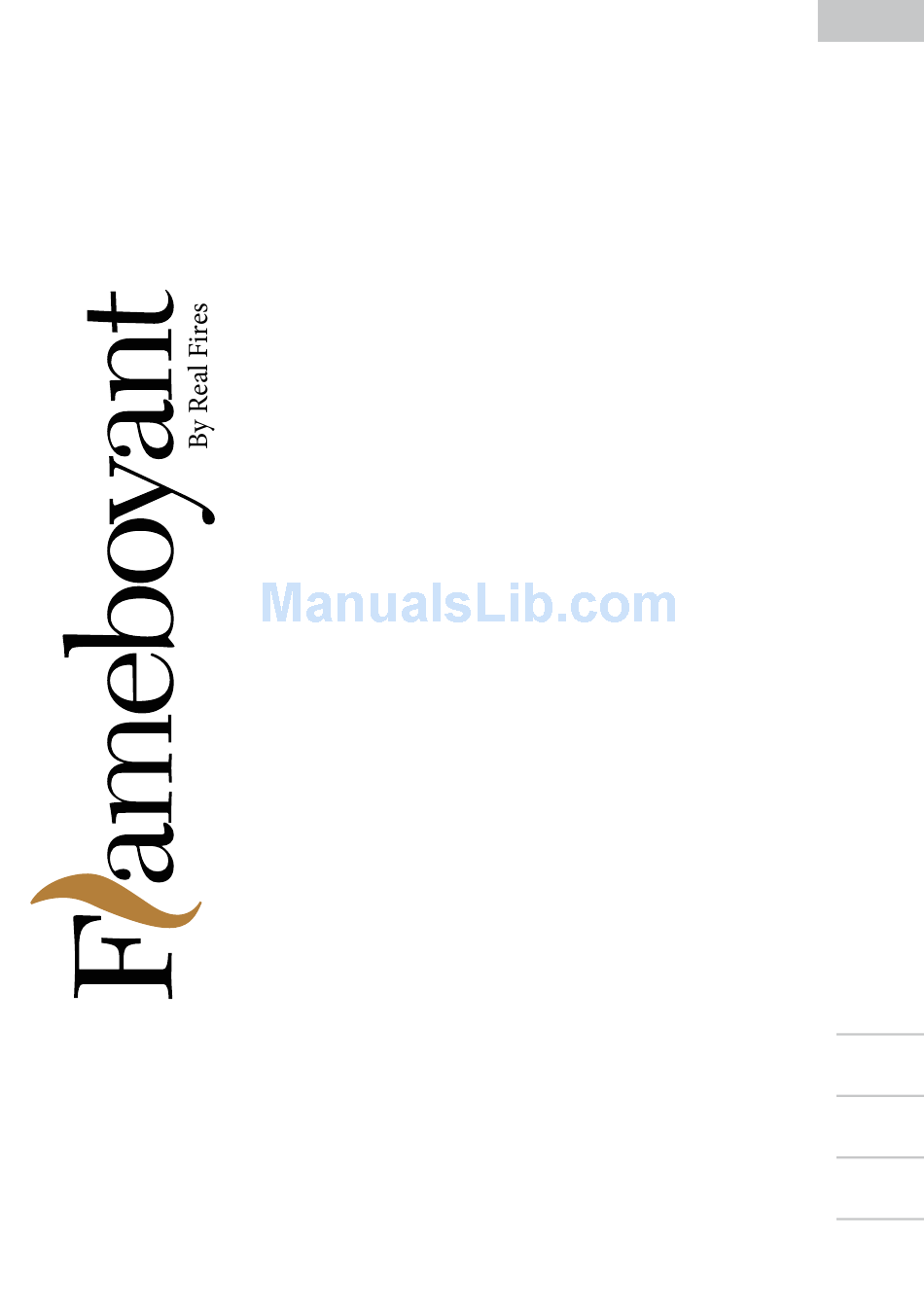

- Page 1 Electronic Range RF800 User Guide & Service Manual Models Minimal Pearl Modern Classic...
- Page 2 Thank you for choosing to purchase a Real Fires fireplace for your home. Our products are proudly New Zealand inspired and manufactured from the finest materials. This User Guide is designed to familiarise you with the fire, its features, operation and care. We know you will get many years of enjoyment from your Real Fires fireplace.
-
Page 3: Table Of Contents
Real Fires Electronic Range RF800 User Guide & Service Manual Models Pearl, Minimal, Modern, Classic Contents Important Notes Specifications Fire Features Operating Instructions Remote Control Notes Remote Control Operation Auto Off Timer Logs and Coals, Pebbles, Glass Safety Power Failure... -
Page 4: Important Notes
• Shut off valve at the gas meter or cylinders. • Call a technician. Real Fires gas fires are designed to provide warmth, comfort and ambience for your home. The Electronic range of Real Fires incorporates electronic flame control and an integrated two-speed fan, all operated from a remote control. -
Page 5: Fire Features
If the fire has not started after three attempts, contact the installer or a Real Fires representative. It is recommended that the fire is started on its maximum gas rate (refer to the Remote Control section on page 4). -
Page 6: Remote Control Notes
Real Fires Electronic Range User Guide & Service Manual Remote Control Notes There are a few things you should know about your Remote Control to keep it working at its best: • It uses four AAA batteries. With new batteries the Remote Control will work from about 8 metres away from the fire. -
Page 7: Logs And Coals, Pebbles, Glass
This is quite normal and will not affect the performance of the fire. Safety Real Fires are factory tested and the installation should have been tested by the installer. You should not experience any odour from your fire other than an initial burn-off smell the first time it is used. -
Page 8: Cleaning
Real Fires Electronic Range User Guide & Service Manual Cleaning Regular cleaning of your Real Fire is important to keep it looking its best. Some points on cleaning: • Do not use abrasive cleaners on any panels. • All of the exterior painted panels can be cleaned using household cleaners. -
Page 9: Warranty Statement
User Guide on page 13. Service In order for your Real Fire to give years of comfort and enjoyment, Real Fires recommend that your Real Fire is serviced on an annual basis by a licensed service gas fitter. Please refer to the back of this User Guide for contact details. -
Page 10: Service Instructions
Real Fires Electronic Range User Guide & Service Manual Service Instructions Disconnect the mains power before commencing any service work. Servicing is only to be carried out by a certified gas fitter. Refer to the Parts Diagrams on page 11 for more details. - Page 11 Check the main injectors • Inspect the injectors for any sign of damage or blockage and remedy as required. Service the pilot: • Inspect the pilot and flame rods for any signs of damage or wear. By blocking the main injectors (a silicon tube across both injectors works well) the fire can be started and operated with just the pilot operating if required.
-
Page 12: Wiring Diagram
Real Fires Electronic Range User Guide & Service Manual Recheck burner pressure: • Connect a manometer to the burner pressure test point. • Reconnect the power and start the fire. • Using the remote control, adjust the burner pressure to its maximum and check the pressure against the data plate. -
Page 13: Parts Diagrams
Parts Diagrams Fan Cover Main Injectors Control Box Cover (with Tube attached) Pilot Assembly Power Supply Regulator Trim Mounting Brackets Trim Retainer Control Lead Control Box & Grommet Fuse Gas Control Assembly Aeration Sleeves Control Panel Gas Contro Valvel Earth Tab Spring Pilot Head Washer... -
Page 14: Troubleshooting
Real Fires Electronic Range User Guide & Service Manual Troubleshooting Problem Possible Cause Remedy ON/OFF Button Mains power Check mains supply and (Front Panel) does Disconnected isolating switch not work (no spark Gas control locked out Press ON/OFF button noise) -
Page 15: Installation Information
Installation Information Installer’s Name Registration Number Certification Number Date of Installation Date of Commissioning Real Fire Model Burner Media Installed Serial No. (from data plate) Date of Manufacture (from data plate) Owner’s Name Installation Address... -
Page 16: Service Record
Real Fires Electronic Range User Guide & Service Manual Service Record Serviced by Registration No. Company Date Comments: Serviced by Registration No. Company Date Comments: Serviced by Registration No. Company Date Comments: Serviced by Registration No. Company Date Comments: Serviced by Registration No. -
Page 17: Real Fires Warranty Registration
Real Fires Warranty Registration Please fill in the details below as requested and return to Real Fires NZ Ltd in order to ensure your Real Fire Warranty is registered. Owner’s Name Owner’s Address Installation Address (if different from above) SEE INSTALLATION CERTIFICATE FOR DETAILS REQUESTED BELOW Real Fire Model Serial No. - Page 18 Real Fires Electronic Range User Guide & Service Manual Fold here, tape and return Affix stamp here Real Fires NZ Limited PO Box 100744 North Shore, North Shore City 0745 New Zealand...
- Page 19 Service Record Serviced by Registration No. Company Date Comments: Serviced by Registration No. Company Date Comments: Serviced by Registration No. Company Date Comments: Serviced by Registration No. Company Date Comments: Serviced by Registration No. Company Date Comments:...
- Page 20 Flameboyant.com.au Regency Fireplace Products Australia Pty Ltd. 21-23 South Link Dandenong South Vic 3175 Australia Phone 1 800 081 978 Fax 03 9799 7822 Email salesau@regency- re.com 65000 Issue B User Guide RF800 Electronic...
