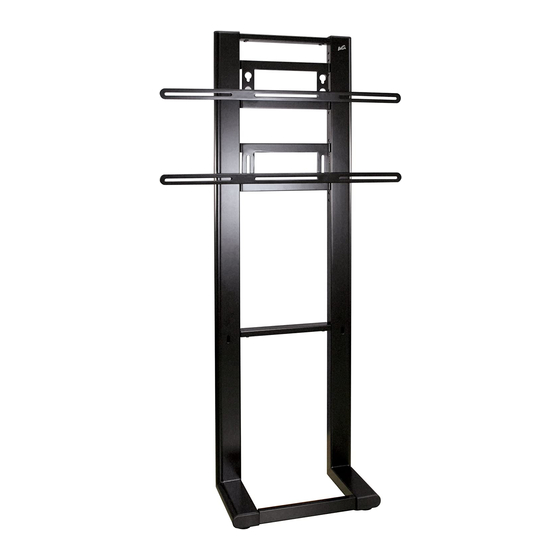

PP-59 Optional Flat Panel TV Mounting System
ASSEMBLY INSTRUCTIONS
I
D
• A P
C
P
P
TALIAN
ESIGNED
RODUCT OF
HINA
ATENT
ENDING
Bell'O International Corp. will not be responsible for failure to assemble as directed or for the improper assembly, use or handling of this stand.
© 2006 BELL'O INTERNATIONAL CORP.
Advertisement
Related Manuals for Bell'O PP-59
Summary of Contents for Bell'O PP-59
-

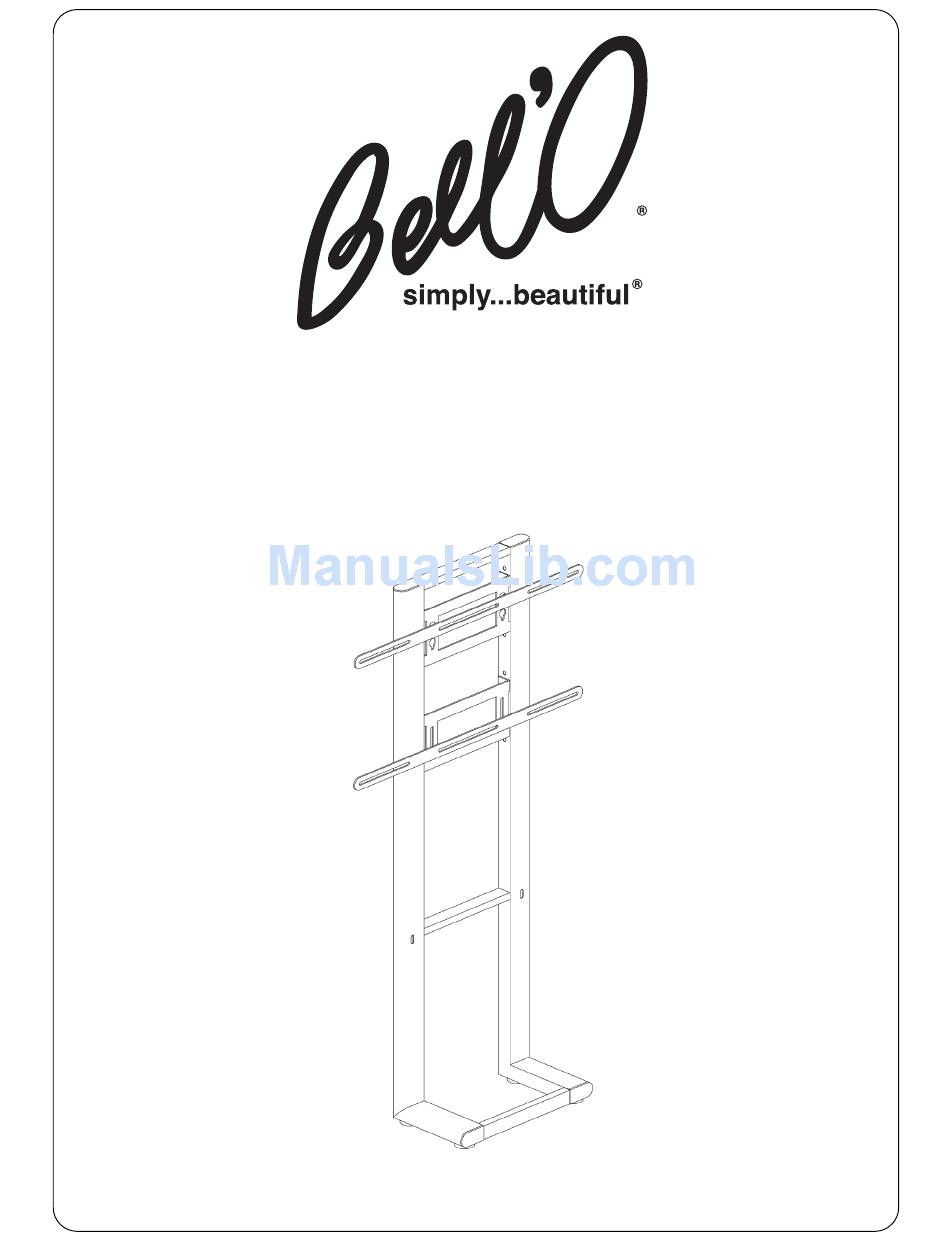

Page 1: Assembly Instructions
PP-59 Optional Flat Panel TV Mounting System ASSEMBLY INSTRUCTIONS • A P TALIAN ESIGNED RODUCT OF HINA ATENT ENDING Bell’O International Corp. will not be responsible for failure to assemble as directed or for the improper assembly, use or handling of this stand. - Page 2 IN THE EVENT THAT ANY PARTS ARE DAMAGED OR MISSING, DO NOT CONTACT THE STORE WHERE THIS PRODUCT WAS PURCHASED. PLEASE CONTACT BELL'O INTERNATIONAL CORPORATION AT 1-888-235-7646 THE PP-59 OPTIONAL FLAT PANEL TELEVISION MOUNTING SYSTEM IS DESIGNED FOR USE WITH ONLY THE FOLLOWING CABINET MODELS: • WAVS-320 • WAVS-325 •...
-
Page 3: Parts List
PARTS LIST PART DESCRIPTION QUANTITY A. FRAME CROSS BARS 3 PC B. TOP MOUNTING BRACKET 1 PC C. BOTTOM MOUNTING BRACKET 1 PC D. RIGHT UPRIGHT FRAME 1 PC E. LEFT UPRIGHT FRAME 1 PC F. UPPER FLAT PANEL MOUNTING BAR 1 PC G. - Page 4 HARWARE LIST PART DESCRIPTION QUANTITY 1. 10mm SHORTER SCREW 12 PCS 2. 15mm LONGER SCREW 8 PCS 3. 5/16" NUT 2 PCS 4. LEVELING FEET 4 PCS 5. 60mm MOUNTING BOLTS 2 PCS 6. ALLEN WRENCH 1 PC 7. FLAT WRENCH 1 PC FOR YOUR SAFETY, PLEASE FOLLOW THESE PRECAUTIONS: ! ALWAYS REMOVE THE TV AND OTHER EQUIPMENT FROM THE STAND PRIOR TO MOVING THE ASSEMBLED UNIT.
- Page 5 ASSEMBLY INSTRUCTIONS NOTE: ONE PERSON CAN ASSEMBLE THIS FLAT PANEL MOUNTING SYSTEM, BUT TWO PEOPLE ARE REQUIRED TO MOUNT THE FLAT PANEL TV TO THIS SYSTEM AND TO SLIDE THE FURNITURE CABINET TO DESIRED LOCATION. Fig. 1 A. PLACE the Right upright frame (D) on a soft surface with the bottom L shaped base of the frame facing upward.
- Page 6 Fig. 2 B. REPEAT this assembly for the Left upright frame (E) as shown in Fig. 2.
- Page 7 Fig. 3 C. SCREW the four leveling feet (4) into the bottom of the Right (D) and Left (E) upright frames as shown in Fig. 3.
- Page 8 Fig. 4 D. USING TWO PEOPLE, HOLD the TV up to the partially assembled Flat Panel Mounting System to approximate the height location where you want the TV to be mounted and to determine the location of the TOP Mounting Bracket (B). E.
- Page 9 Fig. 5 Wood Cabinet H. PLACE the Flat Panel mounting system against the REAR of the Furniture Cabinet with the L-shaped base of the Flat Panel Mounting System frame underneath the cabinet and facing forward as shown in Fig. 5. ALIGN the cutout slots in the frame with the threaded inserts in the rear of the Furniture Cabinet.
- Page 10 Fig. 6 I. MOUNT the Flat Panel Mounting Bars (F&G) to the rear of the TV, as described below and as shown in Fig. 6, using the screws that were included with your TV. If you do not have the TV screws, there is an assortment of common sizes included with this Flat Panel Mounting System.
- Page 11 Fig. 7 M. USING TWO PEOPLE, CAREFULLY LIFT the TV and PLACE the post of the TOP Mounting Bar (F) into the key hole slot of the TOP Mounting Bracket (B). PLACE the threaded post of the BOTTOM Mounting Bar (G) into the vertical slot of the BOTTOM Mounting Bracket (C).
- Page 12 This warranty gives you specific legal rights. You may also have other rights, which vary from state to state. BELL'O INTERNATIONAL CORPORATION, 711 Ginesi Drive, Morganville, NJ 07751-1235 Phone: (732) 972-1333 Fax: (732) 536-6482 Web: www.bello.com E-mail: sales@bello.com...
