MAINTENANCE
GUIDE
The following section is provided to help you with maintenance
and repairs to your Evader EXT2. Pay extra attention to the notes
and tips for proper assembly.

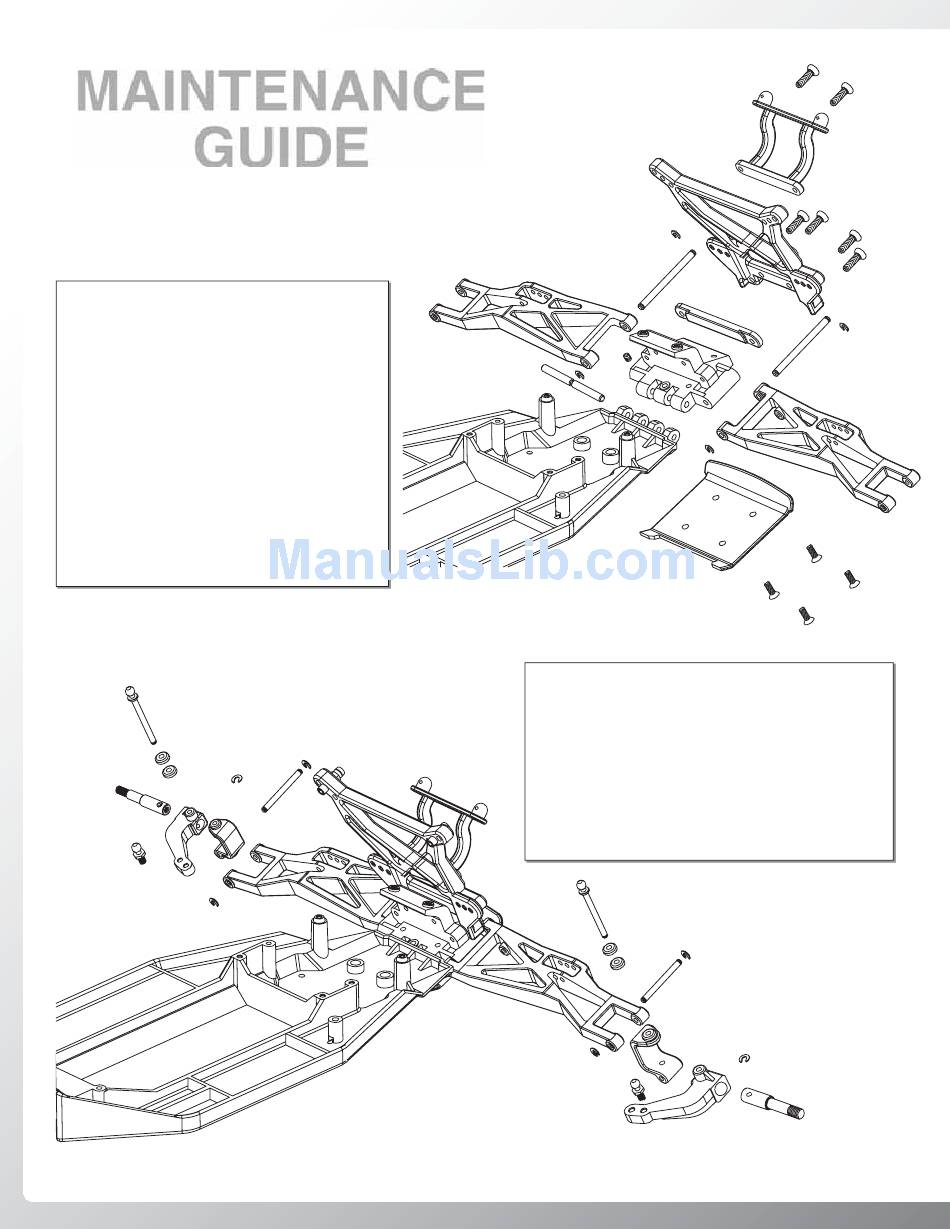

Bulkhead, Bulkhead Brace, Front Suspension Arm,
Front Shock Tower, Front Bumper
1. Attach the front bulkhead (51) to the chassis (1) using
the bulkhead hinge pin (103).
2. Secure the bulkhead hinge pin in place using the 3mm
set screw (K).
3. Attach and secure the front suspension arms (38,39) to
the front bulkhead using the front inner hinge pins (104).
4. Secure the rear of the front inner hinge pin with a
2.5mm e-clip (S).
5. Install the front bulkhead brace (50) onto the two front
inner hinge pins.
6. Secure the front bulkhead brace using 2.5mm e-clips (S).
7. Attach the front shock tower (49) to the front bulkhead
using four 3x10mm round head screws (C).
8. Secure the front body mount (57) to the shock tower
using two 3x10mm round head screws (C).
9. Attach the front bumper (2) to the front bulkhead using
four 4-40x5/16" fl at head screws (B).
94
93
93
R
91
81
24
R
R
95
28
38
104
38
K
S
103
1
Front Knuckle Arm, Hub Carrier, Axle
1. Attach the front hub carriers (28) to the front suspension arms
(38,39) using the front outer hinge pins (95).
2. Secure the hinge pins with two 2mm e-clips (R).
3. Install the front axles (91) into the knuckle arms (24,25).
4. Install two spacers (93) onto each kingpin (94).
5. Insert the knuckle arms into the front hub carriers and then
secure them in place with the kingpins. Note: The spacers go
on the top of the hub carriers.
6. Secure the kingpins in place using 2mm e-clips (R).
7. Install the short ball studs (81) into the outer holes of the
knuckle arms.
94
93
93
39
R
81
10
C
57
49
S
C
50
104
39
51
S
2
B
R
95
28
R
91
25
S
