MERCURY
PRO
Copyright © 2011 American Weigh Scales, Inc.
All rights reserved. Rev. 1.0
User Manual
MPR-180 (396lb x 0.2lb)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MERCURY PRO MPR-180 and is the answer not in the manual?

Questions and answers

Related Manuals for AWS MERCURY PRO MPR-180

Summary of Contents for AWS MERCURY PRO MPR-180

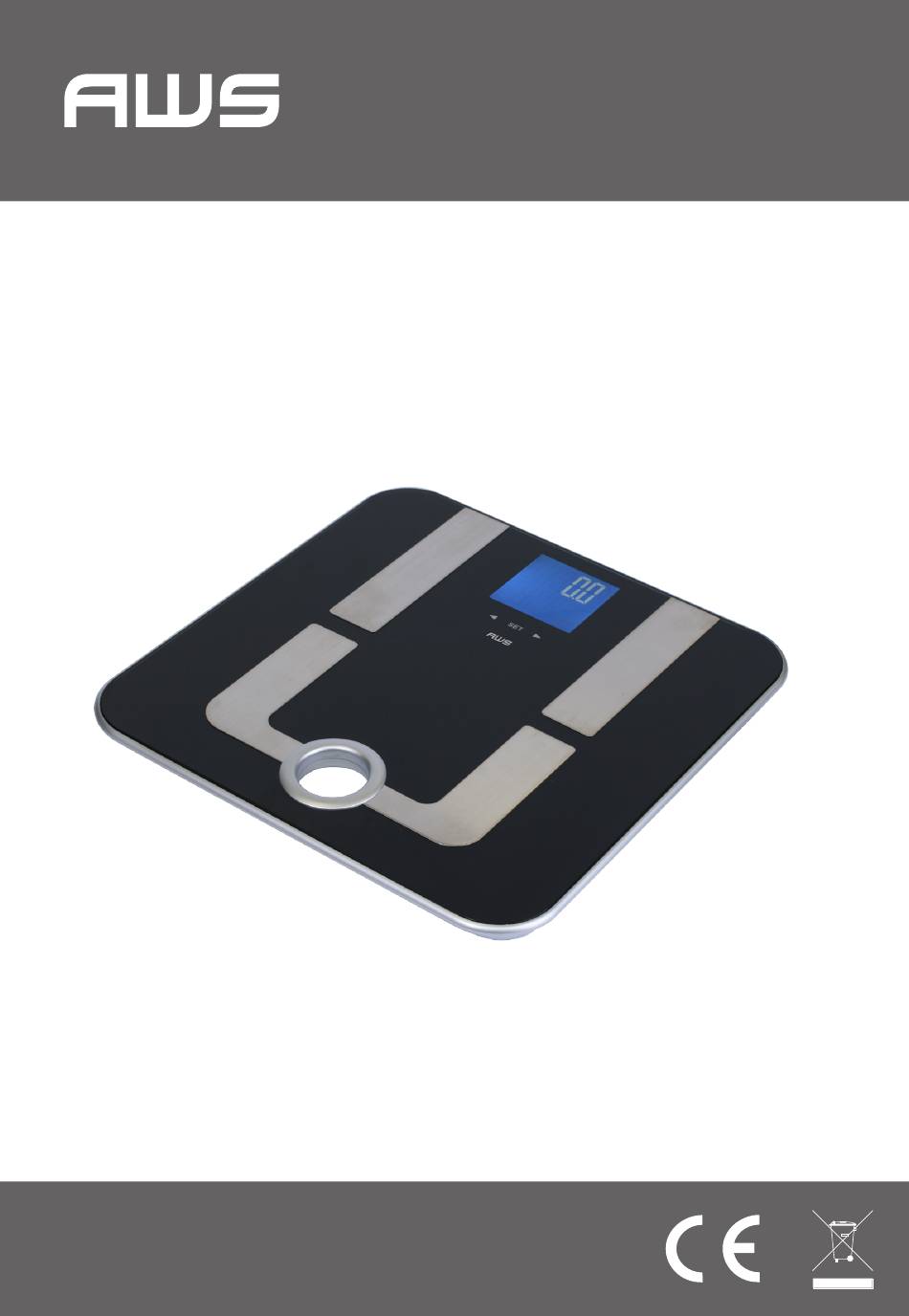

  • Page 1 MERCURY User Manual MPR-180 (396lb x 0.2lb) Copyright © 2011 American Weigh Scales, Inc. All rights reserved. Rev. 1.0...
  • Page 2 MERCURY PRO Thank you for purchasing the American Weigh MERCURY PRO digital body fat scale. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind: •...
  • Page 3 Special Note on Body Fat Scales This scale uses bioelectrical impedance analysis (BIA) to calculate body fat %. This technology works by measuring the resistance (impedance) of small electrical currents through the body. When the user’s height and body impedance are known, the scale can accurately determine total body water (TBW) and fat-free mass (FFM).

  • Page 4: Key Description

    MERCURY PRO I. Part List 1. Scale 2. AAA Batteries (x4) II. Key Description Front Panel Bottom of Scale kg FAT BONE kg FAT UNIT BONE Unit Key Right Key Set Key Left Key III. Battery Installation 1. Before using the scale for the first time, check the battery compartment and remove any plastic insulation strips or packaging that may be in place to prevent battery drainage during shipping/storage.

  • Page 5: Changing The Unit Of Measure

    IV. Scale Only Operation 1. Place the scale on a flat, level surface. Do not weigh on carpet as it may affect the accuracy. 2. Step onto the platform. Once the weight has stabilized, it will be locked on the display. 3. The scale will turn off automatically after 10 seconds of non-use.
  • Page 6 MERCURY PRO BONE 4. Height: Use the key to select your kg FAT height. Touch the SET key to confirm. BONE kg FAT 5. Age: Use the key to select your age BONE Touch the SET key to confirm BONE 6. Your personal data data will be saved and the scale will display “0.0”, indicating it is ready to begin weighing.

  • Page 7: Symbol Description

    kg FAT 6. When analysis is complete, the body fat data will cycle on the display three times before the scale turns off. BONE BONE 7. For future weighings, the scale will remember you based on weight and automatically select the correct user ID no. 8.
  • Page 8 MERCURY PRO Body Water % Female Male Healthy Healthy Healthy Healthy Healthy Healthy 10-15 <57 57.1-67 >67 <58 58.1-72 >72 16-30 <47 47.1-57 >57 <53 53.1-67 >67 31-60 <42 42.1 >52 <47 47.1-61 >61 61-80 <37 37.1-47 >47 <42 42.1-56 >56 Body Muscle % Female...
  • Page 9 X. Error Codes 1. Lo - Batteries are low. Replace the batteries. 2. ----- - Maximum capacity exceeded. This scale cannot be used to give measurements over 396lbs. XI. Specifications MPR-180 Max. Capacity 396lb / 180kg / 28st Readability 0.2lb / 0.1kg / 0.2lb Power 4 x AAA Dimensions...
