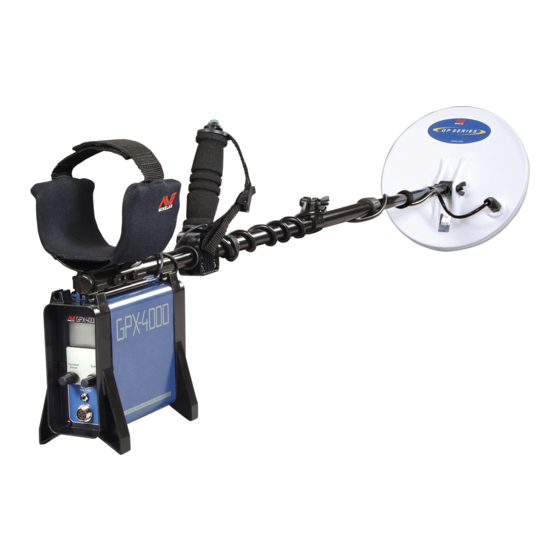

Metal detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version

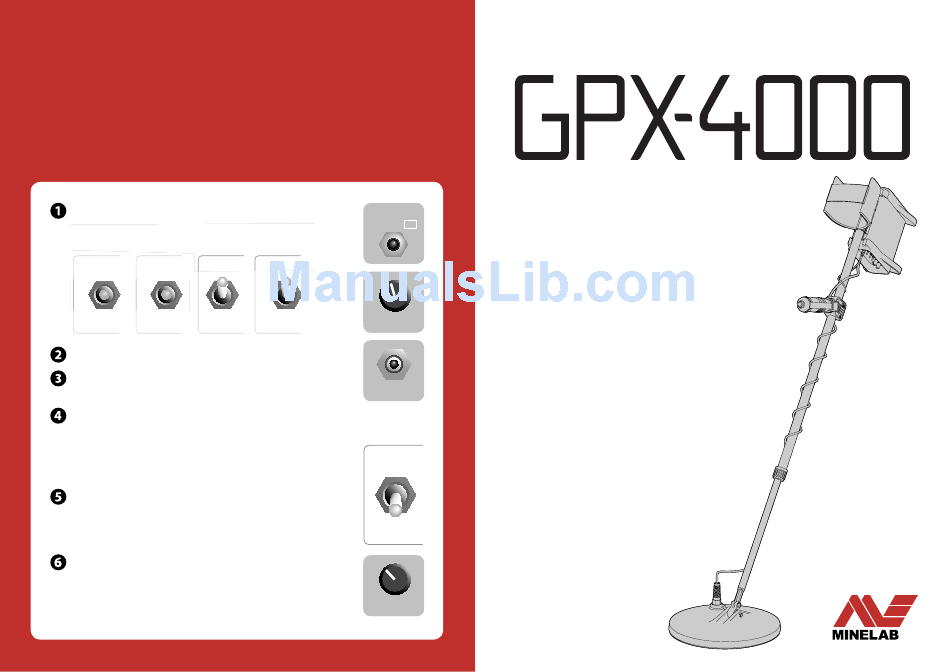

Quick Start

Set the front panel switches to the following positions:
Search
Search
Soil /
Soil /
Ground
Ground
Mode
Mode
Timings
Timings
Balance
Balance
Patch
Patch
Sensitive
Sensitive
Fixed
Fixed
G
G
N
N
Deep
Salt
Tracking
Press the On/Off button on the rear control panel.
Turn the Threshold control up until a tone is audible
through the headphones.
(pg. 34)
Raise the coil off the ground and Press the Auto Tune
button to reduce electrical interference. The tuning
process takes approximately 60 seconds. Do not move the
coil or pass metal objects near the coil during the tuning
process.
(pg. 33)
Whilst lowering and raising the coil between 25mm and
100mm (1" and 4") from the ground, change the Ground
Balance switch to Tracking. Any variations in the Threshold
will smooth out within 3-5 seconds.
Adjust the Threshold to a very faint but still audible level.
It should be smooth with only minor fluctuations.
You are now ready to start searching!
On/Off
Hold for
FP
Coil /
Coil /
Rx
Rx
Double D
Double D
M
Threshold
Cancel
(pg. 25)
Auto Tune
Ground
Balance
Fixed
Tracking
(pg. 40)
(pg. 34)
Threshold
