Physical Connections

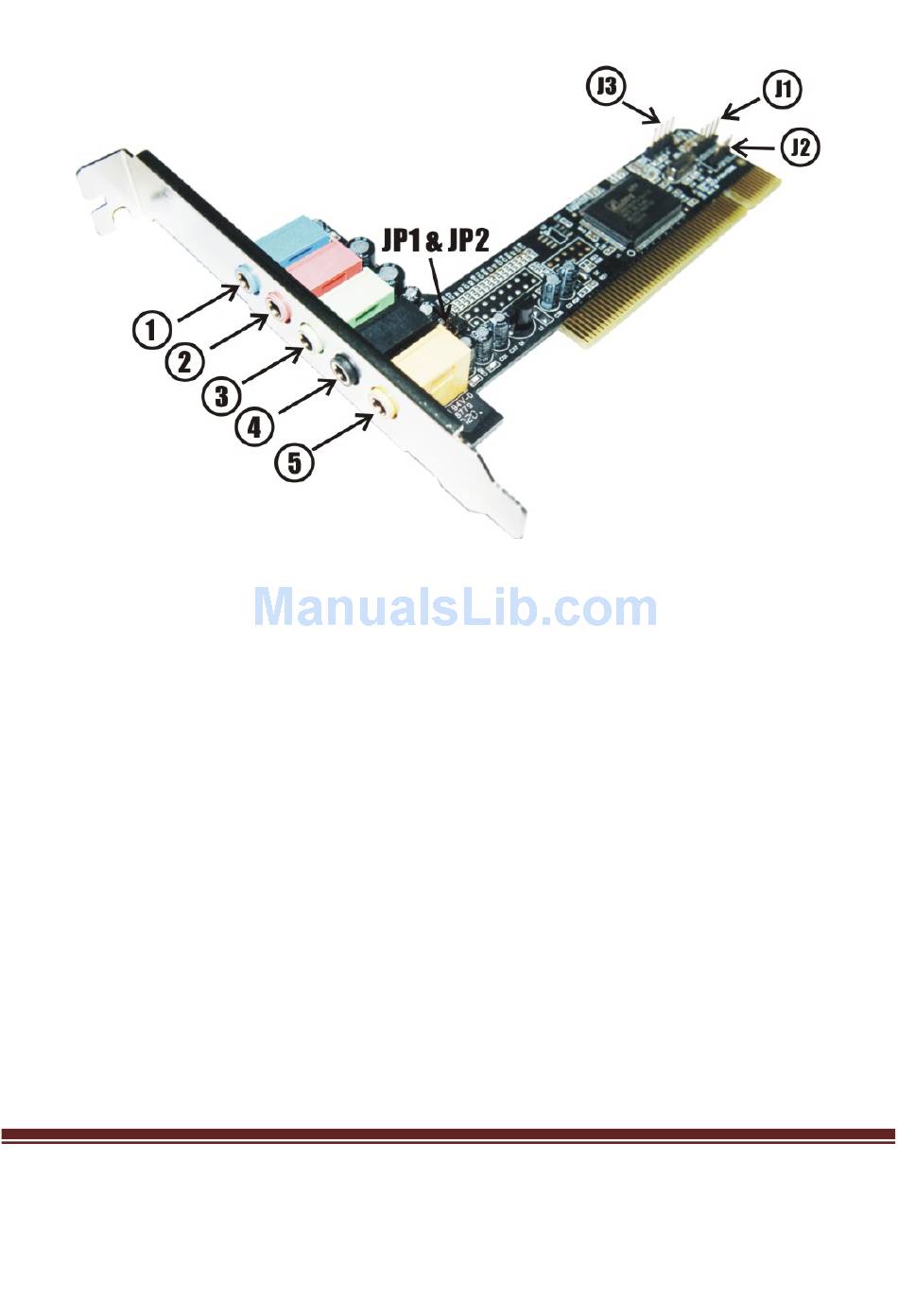

The rear panel of this 5.1 Channel PCI Sound Card has the following
jacks:
1. Line In (blue) – Connect to tape/CD/DVD player, or other audio
sources for output mixing and/or recording
2. Mic In (pink) – Connect to microphone
3. Front-Speaker (green) – Output to speakers with amplifier or
earphones or audio-in of home stereo
4. Rear-Speaker (black) – Connect to the rear speakers while
four/six channel speakers mode is enabled
5. Center/Sub-woofer (orange) – Connect to the center speaker
