Summary of Contents for C-Media CMI8738

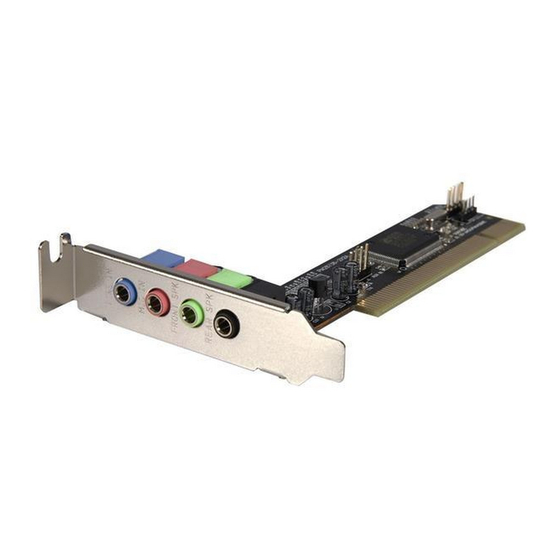

- Page 1 C-Media CMI8738 4 Channel Sound Card User Manual Ver. 1.00 All brand names and trademarks are properties of their Respective owners. Jun/07 MN4000000027...
-
Page 2: Package Contents
ACPI compliant power down management Support Windows® 2000, XP/2003 and Vista Bus Interface PCI Bus 32bit Package Contents 1 x C-Media CMI8738 4 Channel Sound Card 1 x Driver CD 1 x Manual Note: Contents may vary depending on the market/country. Jun/07... -
Page 3: System Requirements
System Requirements Pentium-class computer with one available PCI slot Windows® 2000, XP/2003, Vista DirectX 8.1 above is required Hardware & Software Installation It is recommended that you remove any previously installed sound card and drivers prior to installing this 4 Channel Sound Card to avoid any conflicts. -
Page 4: Physical Connections
step. Place the Driver CD into the CD-ROM drive. Click the Start button on the taskbar and click Run. Type “D:\SOUND\ CMedia8738\setup.exe”. (Assuming you have placed the CD in CD-ROM drive labeled as D). Follow any on-screen instructions to complete the software installation. - Page 5 The rear panel of this 4 Channel Sound Card has the following jacks: Line In (blue) – Line-In Connect to the audio output port of stereo Mic In (pink) – Connect to the Microphone (Mono) Front-Speaker (green) – Output to speakers with the amplifier or earphones or Audio-in of home stereo Rear-Speaker (black) –...
