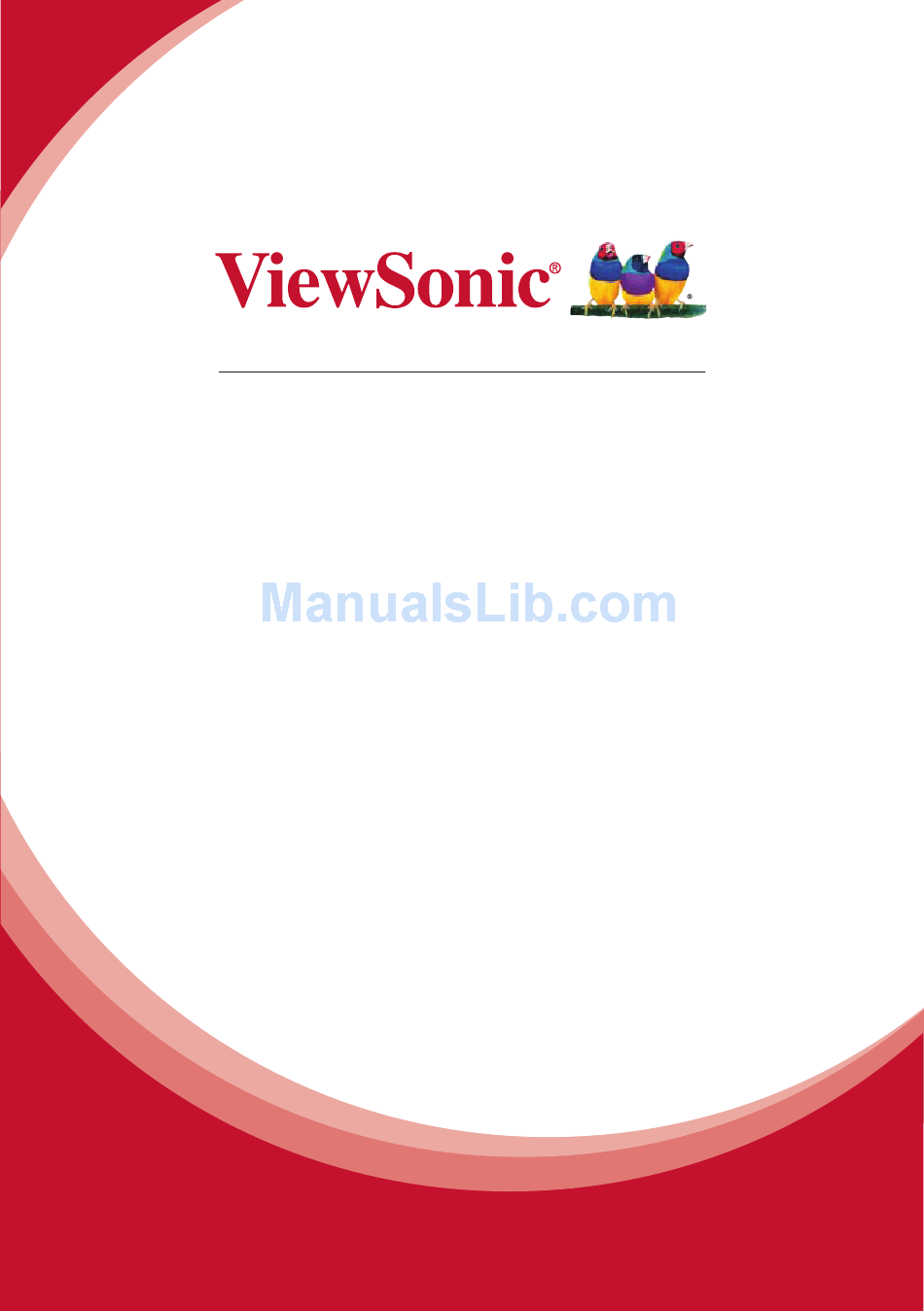

  • Page 1 VT3250LED/VT4250LED LCD TV User Guide Model No. VS14095-1E/VS14096-1E...

  • Page 2: Important Safety Instructions

    Important Safety Instructions Read these instructions completely before using the equipment. Keep these instructions in a safe place. Heed all warnings. Follow all instructions. Do not use this equipment near water. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Clean with a soft, dry cloth.

  • Page 3: Compliance Information

    Compliance Information CE Conformity for European Countries The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/ Following information is only for EU-member states: The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/ EC (WEEE).

  • Page 4: Declaration Of Rohs Compliance

    Declaration of RoHS Compliance This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum Substance...

  • Page 5: Copyright Information

    ___________________________________________ Product disposal at end of product life ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more. USA & Canada: http://www.viewsonic.com/company/green/recycle-program/ Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/...
  • Page 6 This manual provides as an operational guide to user. All statements, technical information, and recommendations in this manual and in any guides or related documents are believed reliable, but the accuracy and completeness thereof are not guaranteed or warranted, and they are not intended to be, nor should they be understood to be, representations or warranties concerning the products described.

  • Page 7: Table Of Contents

    Table of Contents Important Information ������������������������������������������������������������������������������������ 2 WARNING ....................2 CAUTION ....................2 NOTIFICATION ..................3 Important Safety Information ������������������������������������������������������������������������ 4 Usage Instructions ����������������������������������������������������������������������������������������� 5 Installation ....................5 AC Power Cable ..................6 LCD Screen ....................6 Wiring ......................7 Electric Shock .....................

  • Page 8: Important Information

    Important Information WARNING CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE, NE PAS OUVRIR PRECAUCION RIESGO DE CHOQUE ELECTRICO NO ABRIR This symbol is intended to alert the user to the presence of insinuated “dangerous voltage” within the TV’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 9 To prevent electric shock, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. Use the Wall-Mount bracket or TV stand which was recommended by ViewSonic, and please consult your dealer for detailed information.

  • Page 10: Notification

    NOTIFICATION Radio Frequency Interference Statement Warning: These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 11: Important Safety Information

    Important Safety Information 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
  • Page 12 16. Avoid operating the TV at temperatures below 32°F (0°C). 17. If the TV is transported directly from a cold to a warm location, or if the room temperature changes suddenly, the picture may be blurred or show poor colour due to moisture condensation.

  • Page 13: Usage Instructions

    Usage Instructions Installation Placement It is recommended to watch the TV at a distance of 3 -7 times which of the screen height, and in moderate brightness. Watching the TV for too long or in a dark room may cause eye fatigue.
  • Page 14 Outdoor Use Do not install this TV outdoors. If the TV is exposed to rain, it may result in a fire or an electric shock. Do not expose the TV to direct sunlight, it may heat up and become damaged. Wall-Mount Wall-Mount installation requires the use of a Wall-Mount Bracket.

  • Page 15: Ac Power Cable

    AC Power Cable • Use the AC power cord specified by ViewSonic and suitable for the voltage where you use it. • The plug is designed, for safety purposes, to fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.

  • Page 16: Lcd Screen

    LCD Screen • Although the LCD screen is made with high-precision technology and has effective pixels of 99.99% or more, black dots or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.

  • Page 17: Wiring

    Broken Pieces Do not throw anything at the TV. The screen glass may break by the impact and cause serious injury. If the surface of the TV cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result.

  • Page 18: Electric Shock

    Electric Shock Do not touch the AC power cord or the TV with a wet hand. If you plug/unplug the AC power cord from the TV with a wet hand, it may cause electric shock. Lightning Storms For added protection for this TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna.

  • Page 19: Overloading

    Overloading This TV set is designed to operate on a 220~240 VAC supply only. Take care not to connect too many appliances to the same AC power outlet as this could result in a fire or an electric shock. Optional Equipment Do not install optional equipment too close to the TV set.

  • Page 20: Antennas

    Antennas Outdoor antenna grounding If you want to connect an outdoor antenna, please assure that it is grounded to avoid bolt damages. Please notice the regulation EN 50083-1. Please avoid water drops or spray water, also don’t put liquid filled cases (e.g. vases) next to the unit.

  • Page 21: Batteries

    Batteries • Do not dispose of batteries in a fire. • Do not short circuit, disassemble or overheat the batteries. • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. • The batteries (batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

  • Page 22: Cleaning

    Cleaning Cleaning the AC power plug Unplug the AC power plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate and result in a fire. Cleaning the screen surface/ cabinet of the TV set •...

  • Page 23: Magnetic Influence

    Magnetic Influence This TV contains a strong magnet in the speaker unit that generates a magnetic field. Keep any items susceptible to magnetic fields away from the speaker. Sound If a snapping or popping sound from the TV is continuous or frequent while the TV is operating, unplug the TV and consult your dealer or service technician.

  • Page 24: Carrying The Tv

    Carrying the TV Carry the TV in the specified manner To avoid dropping the TV and causing serious injury, be sure to follow these guidelines: Before carrying the TV, disconnect all cables. Carrying the large size TV requires two or more people. When you carry the TV, place your hand as illustrated and hold it securely.

  • Page 25: Ventilation

    Ventilation The slots and openings in the TV are provided for necessary ventilation. To ensure reliable operation of the TV and to protect it from overheating, these slots and openings must never be blocked or covered. Unless proper ventilation is provided, the TV may gather dust and get dirty. For proper ventilation, observe the following: •...
  • Page 26 Installed with stand 11 7/8 inches 30 cm 4 inches 4 inches 10 cm 10 cm Leave at least this space around the set. 4 inches 10 cm Never install the TV set where Air circulation is blocked. Objects and ventilation holes Never push objects of any kind into the TV through the cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or an electric shock.

  • Page 27: Moisture

    Moisture Moisture and flammable objects • The TV must not be exposed to dripping or splashing. Do not place objects filled with liquids, such as vases, on the TV. • Do not use power-line operated TV sets near water— for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

  • Page 28: Servicing

    Ask a qualified service technician to dispose of the TV. Thank you for purchasing this ViewSonic high-definition television. The quality of the image you see on your ViewSonic TV is only as good as the quality of the signal it receives. Mobile telephone warning To avoid disturbances in picture and sound, malfunctioning of your TV or even damage to the TV, keep away your mobile telephone from the TV.
  • Page 29 End of life directive We are paying a lot of attention to produce environmental friendly in green focal areas. Your new receiver contains materials, which can be recycled and reused. At the end of its life, specialized companies can dismantle the discarded receiver to concentrate the reusable materials and to minimize the amount of materials to be disposed Please ensure you dispose of your old receiver according to local regulations.

  • Page 30: Package Contents

    Package contents After unpack the TV box, please check the TV and all accessories are well presented and undamaged. TV Set Base Base Screw Flat Stand Cover Remote Control Remote Control Battery User Manual Quick Start Guide User Manual...

  • Page 31: Controls & Connections

    Controls & Connections Front view Power Switch Power Indicator IR Receiver Speaker Speaker No Item Description MENU Press to open or exit the OSD (on-screen display) menu. Press to select the input source. (INPUT) Press to increase the sound volume level. Press to decrease the sound volume level.

  • Page 32: Rear View

    Rear view Item Description Connect PC’s video output connector using HD15- HD15 cable (Analogue RGB), and connect PC’s audio out jack using audio cable. For some Apple Macintosh computers, it may be PC IN necessary to use an adapter (not supplied). In the (RGB/AUDIO) case, connect the adapter to the computer before connecting the HD15-HD15 cable.
  • Page 33 USB 1 / 2 Insert USB storage device to view JPEG photos. Connects to your headphones. If your headphones do not match the jack, use a suitable plug adapter (not Headphone Output supplied). While headphones are connected, the TV speakers are muted. Connect to the Component video (Y/Pb/Pr) output COMPONENT of video devices , and to the left/right audio channel...

  • Page 34: Activate The Remote Control

    Activate the remote control Installing batteries 1. Turn the remote control to reveal its back side, and open the lid of the battery compartment. 2. Insert the batteries (supplied) ensuring that the positive and negative marked battery terminals match the (+) and (-) marks in the battery compartment. Note that these batteries are provided for your convenience so that you can operate the display straight away.

  • Page 35: Attaching The Base

    Attaching the Base IMPORTANT: The base of the ViewSonic LCD TV must be assembled prior to usage� 1. Place the TV set facing down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to TV set.

  • Page 36: Wall-Mounting

    TV’s weight. 8. For product protection and safety reasons, ViewSonic strongly recommends that you use the Wall-Mounty Bracket model designed for your TV and the Wall- Mounting of your TV should be performed by ViewSonic dealer or licensed contractor. Note: 200 mm x 100 mm (32”) wall mount bracket is not included.

  • Page 37: Pc Input Signal Reference Chart

    PC Input Signal Reference Chart After connecting the PC to the TV, set the output signal from the PC according to the chart below. Presetting PC Mode Standard Resolution Refresh Rate (Hz) VESA 640 x 480 VESA 800 x 600 VESA 1024 x 768 VESA...

  • Page 38: Remote Control Unit

    Remote Control Unit Buttons located at the right side of the TV will operate the same as these buttons on the remote control� 1� (POWER) Press to turn the LCD TV on or enter standby mode. 2� (Input source) Select an input source. 3�...
  • Page 39 19� OK Press to activate a setting. 20� MENU Press to activate the LCD TV OSD. 21� EXIT Press to exit the LCD TV OSD or return to the previous layer. 22� Colour button Press buttons to select the pictures with various colours of text. Different channels display different functions.

  • Page 40: Switching Input Source

    Switching Input Source You can press to choose the input source on the display menu. 1. Press to display the INPUT LIST menu. 2. Press to select an input source. 3. Press OK to enter. Input List YPbPr SCART HDMI 1 HDMI 2 HDMI 3...

  • Page 41: Osd (On-Screen Display) Menu

    OSD (On-Screen Display) menu Operations in the OSD menu Initial Setup When you first start up this ViewSonic LCD TV set, please follow the Initial Wizard to your TV. 1� Selecting Language Press to select your preferred language, and press OK.
  • Page 42 3� Selecting your mode Press to select "HOME" or "SHOP" mode, then press OK. Initial Setup Mode select HOME Please select your mode SHOP Select Back Next Exit EXIT 4� Selecting your scan mode Press to select "Analogue" or "Analogue and Digital", then press OK. Initial Setup Scan Mode Please select your scan mode...

  • Page 43: Adjust Picture Setting

    6� Initial Setup Completed Press OK to exit the Initial Setup. Initial Setup Completed Congratulations !! Completed Initial Setup. Please press [OK] to exit the wizard. Back Exit Adjust Picture Setting Picture Smart Picture Personal Brightness Contrast Colour Tint Sharpness Colour Temperature Normal Advanced Control...
  • Page 44 Preset for all inputs can also be accessed by pressing picture on the remote control to directly toggle the modes. Personal The user can set their favourite setting. For standard picture settings. Standard Recommended for home entertainment. Smart Picture Vivid For enhances picture contrast and sharpness.

  • Page 45: Adjust Sound Setting

    Adjust Sound Setting Sound Sound Mode Personal Equalizer 120Hz Equalizer 500Hz Equalizer 1.5KHz Equalizer 5KHz Equalizer 10KHz Balance Digital Audio Out Select Exit Enter EXIT 1. Press MENU to call out MENU. 2. Press to select "Sound" , and press OK to enter. 3.

  • Page 46: Adjust Tv Setting

    Balance Emphasizes left or right speaker balance. Digital Selects the digital audio out from menu options: Off, Dolby Digital, or PCM. Audio Out Enable or disable automatic volume level. This function enables you to choose the type of additional narration during the TV watching from menu options: Normal, Hard of Hearing, or Audio Description.
  • Page 47 Enter the channels submenu, and choose from Channel Scan, Update Scan, Single RF Scan, Analogue Manual Scan, Favourite Network Select, Channel Skip, Channel Sort, Channel Edit, Decoder, Analogue Ch Fine Tune, and Clean Channel List. Channel Scan will re-tune the television automatically. It is Channel Scan recommended to run the channel scan periodically to ensure that all new services are added.

  • Page 48: Adjust Features Setting

    Adjust Features Setting Features Menu Language English 4:3 Mode Picture Format Auto Time Subtitle Teletext Language Common Inerface Select Exit Enter EXIT 1. Press MENU to call out MENU. 2. Press to select "Features" , and press OK to enter. 3.
  • Page 49 To display the transmitted subtitle on the screen. Either this text can Analogue be permanently displayed (assuming that the service is available in Subtitle the broadcast) or only when mute is active. 1st Subtitle Use the digital subtitle function when two or more subtitle languages Subtitle are broadcast.

  • Page 50: Adjust Eco Setting

    Adjust Eco Setting Enter Select Exit EXIT 1. Press MENU to call out MENU. 2. Press to select “Eco” , and press OK to enter. 3. Press to select Eco. 4. Press / to adjust. 5. Press MENU/ EXIT to exit. Item Description Disables automatic backlight control.

  • Page 51: Troubleshooting

    Troubleshooting Condition Explanation / Solution No picture No picture Check the Power Saving settings. Make sure the power cord is connected securely. Turn on the power of the TV. Cannot receive any channels Check antenna/cable connections. Make sure the Cable setting is correct for your TV signal source. Perform Channel Scan to add receivable channels TV is locked to one channel that are not present in the TV’s memory.
  • Page 52 Make sure that the antenna is connected using a 75- ohm coaxial cable. Keep the antenna cable away from other connecting Noisy picture cords. To avoid TV interference, make sure to use an undamaged antenna cable. No sound/Noisy sound Check the volume control. Press MUTE or + so that disappears from the screen.
  • Page 53 Some wide screen programs are filmed in aspect ratios that are greater than 16:9 (this is especially common with theatrical releases). Your TV will show these programs with black bands at the top and Black bands appear at the bottom of the screen. For more details, check the edges of the screen documentation that came with your DVD (or contact your programme provider).

  • Page 54: Dimensions & Specifications

    Dimensions & Specifications Model VT3250LED VT4250LED Screen Size 32” diagonal 42” diagonal Resolution 1920 x 1080 1920 x 1080 Bulgarian, Croatian, Czech, Danish, Dutch, Eng- lish, Finnish, French, Gaeilge, German, Greek, Hungarian, Italian, OSD Languages Norwegian, Polish, Portuguese, Rumanian, Rus-...
  • Page 55 JPEG JPEG Caution: ViewSonic is not responsible if the USB storage device is not supported, nor is it responsible for damage or loss of data from the device� Tips: 1. If can’t detect the connected device, it would be caused by the connected device driver not by TV failure�...

  • Page 56: Customer Support

    Customer Support For technical support or product service, see the table below or contact your reseller. Note: You will need the product serial number. Country/Region Web Site Email Austria www.viewsoniceurope.com/aus/ service_at@viewsoniceurope.com Belgium www.viewsoniceurope.com/befr/ service_be@viewsoniceurope.com Bulgaria www.viewsoniceurope.com service_bg@viewsoniceurope.com Czech Republic www.viewsoniceurope.com/cz/ service_cz@viewsoniceurope.com Denmark www.viewsoniceurope.com/dk/...

  • Page 57: Limited Warranty

    Replacement product or parts may include remanufactured or refurbished parts or components. How long the warranty is effective: ViewSonic LCD TVs are warranted for 1 year for all parts excluding the light source and 1 year for labor from the date of the first customer purchase.
