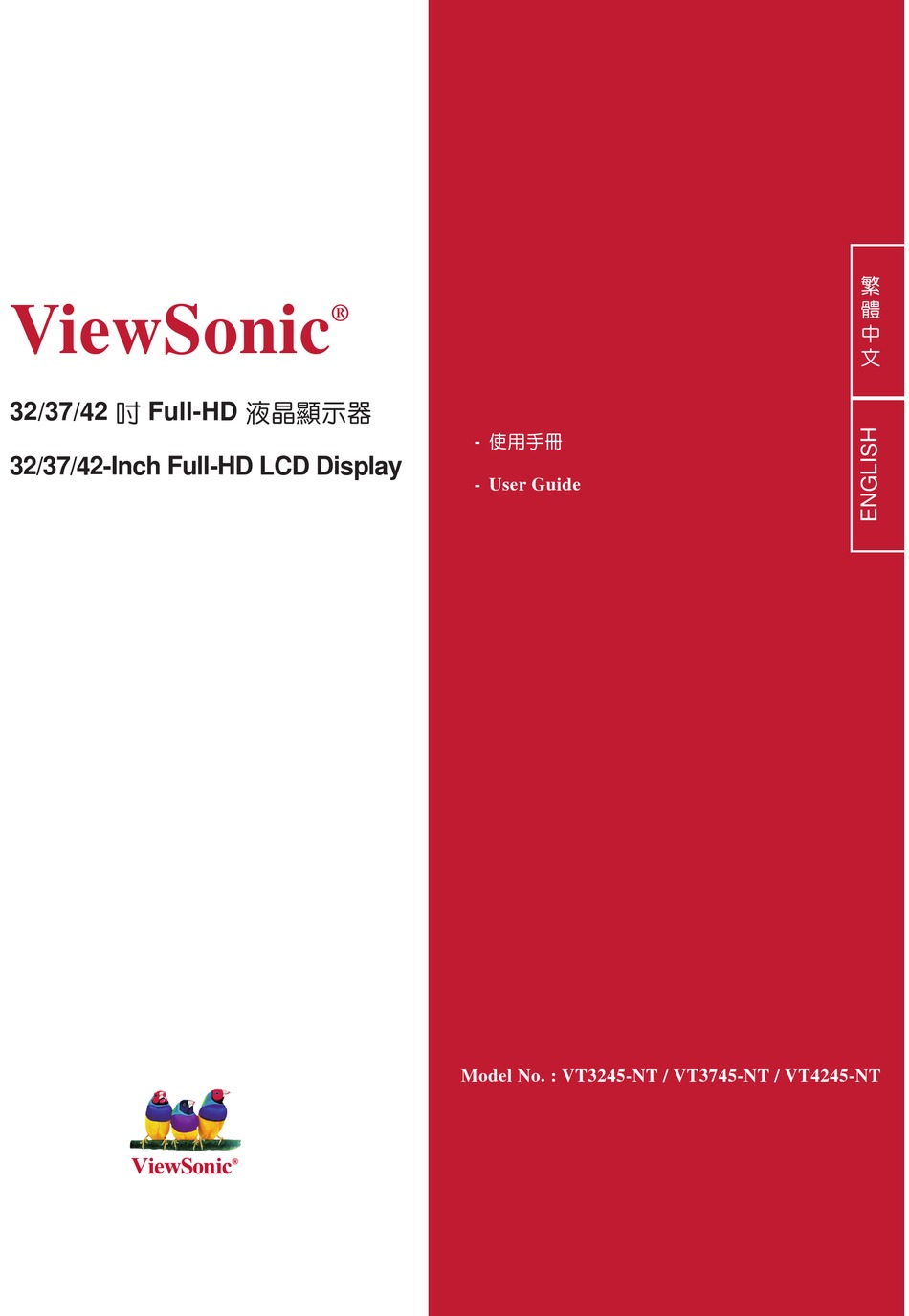

ViewSonic 32/37/42 吋 Full-HD 液晶顯示器 Digital Photo Frame 32/37/42-Inch Full-HD LCD Display DPX702 ® ® - Quick Start Guide - 使用手冊 - User Guide Model No. : VT3245-NT / VT3745-NT / VT4245-NT Model No. : VS12078 繁 體 中 文... -
Page 2: Table Of Contents
Contents Important Safety Instructions ...1 Declaration of RoHS Compliance ...2 Copyright Information ...3 Product Registration ...3 Antenna Installation Instructions ...4 Cleaning the LCD Display ...4 Overview of the LCD Display ... 5 Product components ...5 Front view ...6 Rear view (32/42-inch) ...7 Rear view (32/42-inch) ...8 Remote Control ...9 Remote Control ...10... -
Page 3: Important Safety Instructions
Be sure that the power outlet is located near the unit so that it is easily accessible. Only use attachments/accessories specified by the manufacturer. ViewSonic VT3245-NT/VT3745-NT/VT4245-NT M4 x 14mm 1... -
Page 4: Declaration Of Rohs Compliance
Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. The “HD ready” Logo is a trademark of EICTA. ViewSonic Proposed Maximum Actual Concentration Concentration 0.1%... -
Page 5: Copyright Information
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions con- tained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 6: Antenna Installation Instructions
Disclaimer ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the LCD Display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD Display. -
Page 7: Overview Of The Lcd Display
* If any of these items were missing or damaging, please contact service party for assistance. Used or discharged batteries must be properly disposed of or recycled in compliance with all applicable laws. For detailed information, contact your local solid waste disposal authority ViewSonic Batteries recycle VT3245-NT/VT3745-NT/VT4245-NT... -
Page 8: Front View
Increase or decrease the volume. 選擇 CH p/q Increase or decrease channel number. 電源 POWER crease or decrease ch Power indicator LED indicates if the LCD power is turned on (blue) or in stand-by state (red). ViewSonic Power Indicator LED VT3245-NT/VT3745-NT/VT4245-NT... -
Page 9: Rear View (32/42-Inch)
COMPONENT IN COMPONENT AUDIO IN AUDIO OUT ANTENNA/TV MODULE CONNECTORS ViewSonic 6 7 8 9 FUNCTION Connect to the AC outlet. Connect to the S-Video output jack of your video/audio device. Connect to the A/V output jack of your A/V device. -
Page 10: Rear View (32/42-Inch)
S-VIDEO IN RS232 IN AUDIO OUT ANTENNA/TV MODULE CONNECTORS ViewSonic FUNCTION Connect a USB source. Connect to the VGA output of your PC or portable computer. Connect to the HDMI output of your PC or portable computer or A/V device. -
Page 11: Remote Control
離開 確認 節目指南 選單 雙語 凍結 影像 音效 ViewSonic 電源 POWER Turn power ON or OFF. SOURCE HOTKEYS Press the hotkeys to select the input source. 頻道往返 RETURN Switch to the previous viewed channel. 音量 +/- VOL+/- Increase + or decreases - the volume. -
Page 12: Remote Control
頻道 顯示 靜音 訊號源 確認 節目指南 雙語 凍結 影像 ViewSonic 凍結 FREEZE Freeze the present image on the screen. To continue, 電源 press the button again. 音樂 雙語 MTS 數位相框 Switch between monaural, stereo, and audio modes. This function enable you to receive a second language or unrelated audio. -
Page 13: Getting Started
Connecting power Connect the supplied power cord to the AC IN jack on the rear of Display. Connect the other end of the power cord to a power outlet.(AC 110V 60Hz). ViewSonic VT3245-NT/VT3745-NT/VT4245-NT... -
Page 14: Cable Connections
Cable Connections PC Connector Supported Resolutions Mode Standard Resolution Composite 720x400(70Hz) VESA 40x40(0Hz) VESA 00x00(0Hz) VESA 024x7(0Hz) VESA 30x7(0Hz) VESA 20x720(0Hz) VESA 20x024(0Hz) VESA 20x00(0Hz) ViewSonic HDMI Compatibility table of PC Inputs SVHS YPbPr HDMI VT3245-NT/VT3745-NT/VT4245-NT... - Page 15 PCs, and portable PCs. Component cable Connect to devices such as DVD players, Digital TV receivers, and Digital satellite receivers. Audio cable Connect to devices with audio output such as DVD re- corders, VCRs, and Home theater audio equipment. ViewSonic (37-inch) VT3245-NT/VT3745-NT/VT4245-NT...
- Page 16 Progressive Scan Component Video or component video. S-Video provides a high signal quality. Composite Video (a yellow Video jack ) provides a good video output. Please follow the correct step to connect existing audio/video equipment. ViewSonic Compatibility table of Video Inputs...
-
Page 17: Basic Operation
選單 雙語 凍結 影像 音效 ViewSonic Turn the LCD Display ON Press the POWER key to turn on or off the pow- er of the LCD Display. The indicate light is blue as power ON and orange as power OFF. -
Page 18: Basic Operation
訊號源 離開 確認 節目指南 選單 雙語 凍結 影像 音效 ViewSonic Display Press key to display channel number (in 顯示 TV mode) and information of ouput signal. Press key to switch monaural and stereo 雙語 modes. This function enable you to receive a second language or unrelated audio. -
Page 19: Using The Osd Menu
Press 選單 key on the control panel or 離開 key on the remote control to exit OSD menu. After change settings on the OSD menu, the new settings are confirmed automatically when OSD picture vanish, even did not press the menu to exit the OSD system. ViewSonic PICTURE PICTURE MODE... -
Page 20: Picture Adjustment
In preset Picture Modes, it is allowed to adjust each subpicture-item setting. Press pq key to select item and press tu key or +/- key to adjust setting. ViewSonic Press 選單 key on the control panel or the remote con- trol to view OSD menu. - Page 21 Press 選單 key on the control panel or 離 開 key on the remote control to exit OSD menu. ViewSonic (BRIGHTNESS) Adjust the levels of light on your screen. It should be used in conjunction with the con- trast option.
-
Page 22: Sound Adjustment
In default SOunD MODE, it is allowed to adjust each sub audio-item setting. Press pq key to select an item and press tu key or +/- key to adjust the settings. ViewSonic Press 選單 key on the control panel or the remote con- trol to view OSD menu. - Page 23 Press tu or +/- key to select STANDARD, MUSIC, MOVIE, SPEECH, USER. Press 選單 key on the control panel or 離 開 key on the remote control to exit OSD menu. ViewSonic (TREBLE/BASE) Adjust the high frequency content in audio output. (BALANCE) Balance the volume of right and left speakers.
-
Page 24: Tv Tuner Adjustment
The Tuner Adjustment enables user to adjust the settings of tuner function. • Tuner Adjustment can only be operated in TV mode. ViewSonic Press 選單 key on the control panel or the remote con- trol to view OSD menu. HDMI-1 PICTURE PICTURE MODE... -
Page 25: Dtv Osd Functions
Press pq key to select [DTV] mode then press tu or +/- key to enter sub-menu (make sure the input source is in DTV mode). DTV OSD MENU includes these main options: • AUTO SEARCH • CHANNEL EDIT • SIGNAL STRENGTH AUTO SEARCH CHANNEL EDIT SIGNAL STRENGTH Move ViewSonic CHANNEL Select Return Exit VT3245-NT/VT3745-NT/VT4245-NT... - Page 26 DTV Channel Management DTV Functions ViewSonic Press pq key to select (CHANNEL EDIT). Press u key to enter the CHANNEL EDIT submenu. CHANNEL Move Select Press 選單 key on the control panel or 離開 key on the remote control to exit OSD menu.
-
Page 27: Pc Setup
PC mode settings: AUTO AD- jUST, H POSITION, V POSITION, PHASE, and CLOCK (make sure the input source is in PC mode). ViewSonic Press 選單 key on the control panel or the remote con- trol to view OSD menu. PC SETUP... -
Page 28: Setup Adjustment
MODE, CLOCK SET, SCREEN MODE, ASPECT, BLUE BACK, and BACKLIGHT. • You can reset all the OSD settings in this option. ViewSonic Press 選單 key on the control panel or the remote con- trol to view OSD menu. HDMI-1 SETUP LANGUAGE... -
Page 29: Using A Usb Source
Press 音樂 key or 數位相框 key on the control to select the desired media type: • Press 音樂 key to play music • Press 數位相框 key to view photos ViewSonic NAME ARTIST USB device is not connected File types: *.jPG... -
Page 30: Program Guide
5. Program time and name: Displays the program time and full name. 6. Program account: Presents more detail information if any. The following keys are relevant to the operation: pqtu keys: browses the channels 確認/PLAY key: selects and change the channels 選擇pq key: page up or down ViewSonic VT3245-NT/VT3745-NT/VT4245-NT... -
Page 31: Other Information
External influences such as lightning or static electricity may cause improper operation. In this case, operate the unit after first turning on the power, or plugging the AC cord and plugging it in again after 1 to 2 minutes. ViewSonic VT3245-NT/VT3745-NT/VT4245-NT... -
Page 32: Customer Support
For technical support or product service, see the table below or contact your reseller. You will need the product serial number. Country/ Website Region Taiwan www.viewsonic.com.tw Hong Kong www.hk.viewsonic.com/support/ T= 852 3102 2900 ViewSonic T=Telephone E-mail F= Fax T=886 2 2246 3456 F=886 2 2249 1751 service@tw.viewsonic.com... -
Page 33: Limited Warranty
How long the warranty is effective: ViewSonic LCD Displays are warranted for 1 year for all parts excluding the light source and 1 year for labor from the date of the first customer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser.
