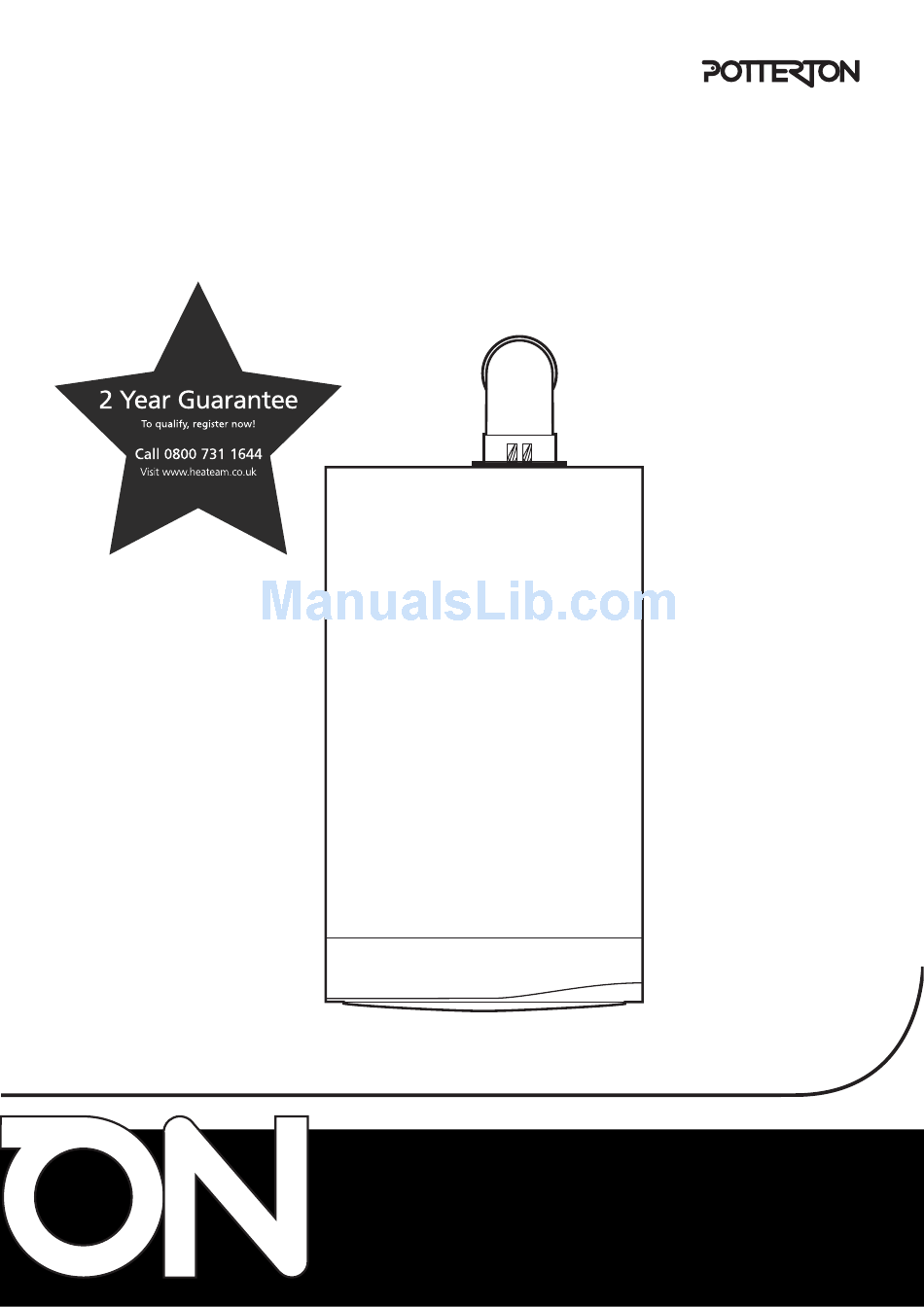

- Page 1 You can rely on User Guide and Heatmax Important Warranty Information Combi HE Range Condensing Combination Boiler Please keep these instructions in a safe place. If you move house, please hand them over to the next occupier. © Baxi Heating UK Ltd 2012...
-
Page 2: Table Of Contents
Contents Section Page Natural Gas Quick Reference Guide Potterton Heatmax Combi 24 HE G.C.N 47 393 27 Troubleshooting Potterton Heatmax Combi 28 HE G.C.N 47 393 28 Potterton Heatmax Combi 33 HE Repressurising System G.C.N 47 393 29 Clearances Care of the Boiler... -
Page 3: Quick Reference Guide
1.0 Quick Reference Guide Reset ON/OFF/Reset Display Central Heating Domestic Hot Water System Pressure Gauge Position of Selector Switch Temperature Control Temperature Control Optional Timer Reset Reset Reset Reset OFF Position Central Heating & Hot Water Domestic Hot Water Reset The boiler will not operate. -
Page 4: Troubleshooting
Boiler not working 2.0 Troubleshooting START Make sure the gas supply is Is the ( ) or ( ) light on Is the ON/OFF/Reset turned ON and check if other and the ( ) on ? Select Switch in the gas appliances are operating ) position and (e.g. - Page 5 2.0 Troubleshooting Is the Timer ON and calling for Is the Room Thermostat (if heat ? fitted) set high enough ? Typical examples of external timer CH ON CH OFF Turn Room Thermostat to maximum setting (typical example shown). Ensure timer is set for Central Heating ON (see any instructions supplied with timer).
-
Page 6: Repressurising System
3.0 Repressurising System Central Heating System Pressure 1. The water pressure in the central heating system is indicated by the pressure gauge. 2. With the system cold and the boiler not operating the Fig. 1 pressure should be at least 0.5 bar. During operation the Normal Pressure pressure should not exceed 2.5 bar, and will normally be between 1.0 and 2.0 (Fig. -
Page 7: Clearances
4.0 Clearances For your Safety 5mm Min 450mm 5mm Min 1. This appliance must have been installed in accordance with the manufacturer’s instructions and the regulations in force. 200mm Min (300mm Min if 2. Any modification that may interfere with the normal using 80/125mm operation of the appliance without express written flueing system) -
Page 8: Care Of The Boiler
5.0 Care of the Boiler Cleaning the Outer case The painted panels should be wiped with a damp cloth and then dried completely. DO NOT USE ABRASIVE CLEANING AGENTS. Protection & Precaution 1. The boiler incorporates an integral frost protection feature that will operate in both modes. -
Page 9: Legislation
6.0 Legislation Installation, Commissioning, Service & Repair 1. This appliance must be install in accordance with the manufacturer’s instructions and the regulations in force. Read the instructions fully before installing or using the appliance. 2. In GB, this must be carried out by a competent person as stated in the Gas Safety (Installation &... -
Page 10: Notes
7.0 Notes © Baxi Heating UK Ltd 2012... -
Page 11: Emergency
8.0 Emergency Warning ! If you smell gas Do not operate light switches Do not operate any electrical equipment Do not use a telephone in the hazardous area Extinguish any naked flame and do not smoke Open windows and doors in the hazardous area Turn off the gas supply at the meter Warn any other occupants and vacate the premises Telephone the National Gas Emergency Service on:-... -
Page 12: Warranty & Service
A T r a d i n g D i v is i o n o f B ax i H eat i ng U K Ltd ( 38 79 15 6) Brooks House, Coventry Road, Warwick. CV34 4LL After Sales Service 0844 871 1560 Technical Enquiries 0844 871 1555 After Sales Service 0844 871 1560 Website www.potterton.co.uk e&oe © Baxi Heating UK Ltd 2012 UK N...
