Summary of Contents for Potterton Gold H Range

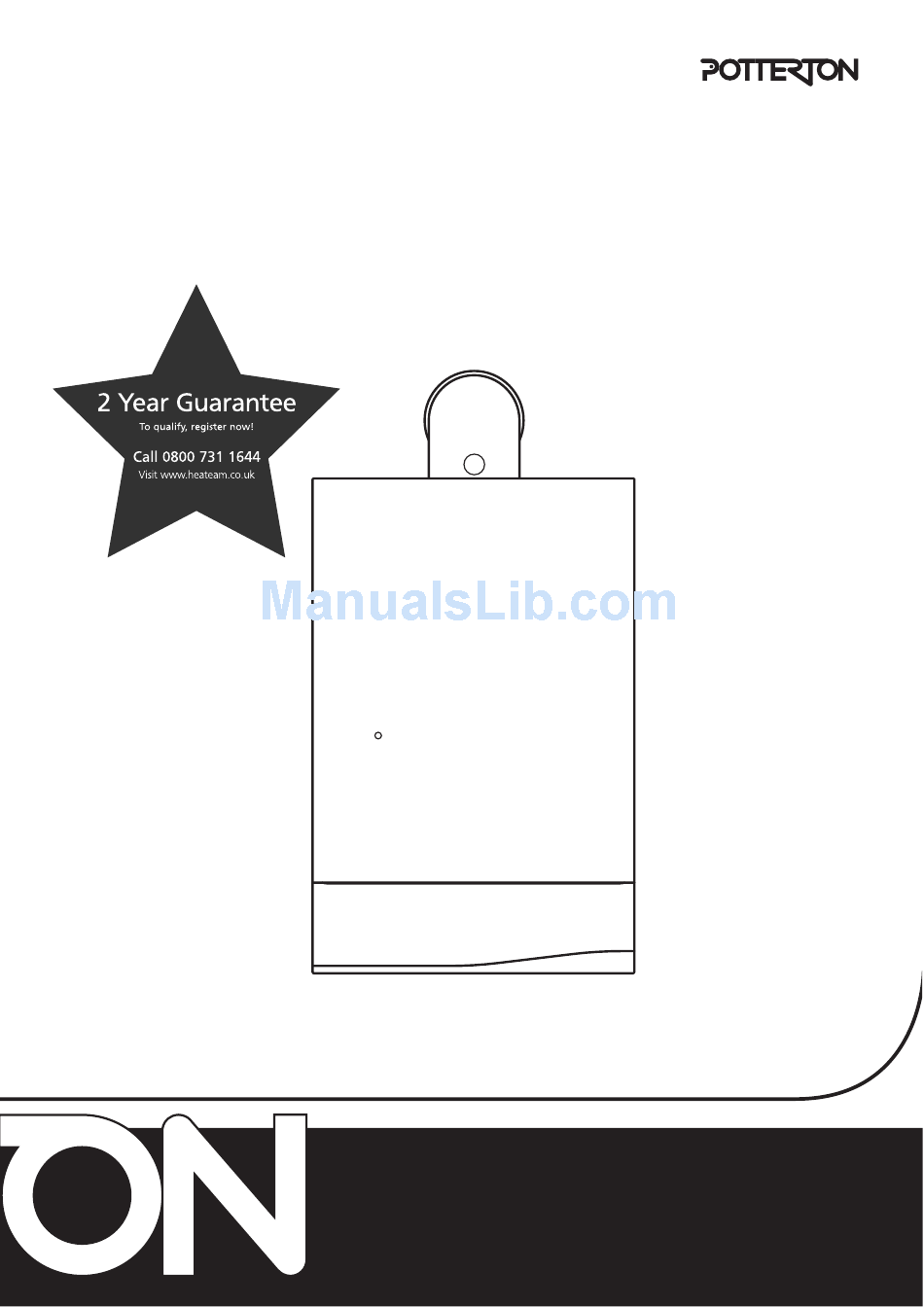

- Page 1 You can rely on Gold H User Guide and Range Important Warranty Information Condensing Boiler Please keep these instructions in a safe place. If you move house, please hand them over to the next occupier. © Baxi Heating UK Ltd 2011...
-
Page 2: Table Of Contents
Contents Section Page Natural Gas Operating the Boiler Potterton Gold H 15 Troubleshooting G.C.N 41-592-12 Potterton Gold H 18 G.C.N 41-592-13 Clearances Potterton Gold H 24 G.C.N 41-592-14 Care of the Boiler Legislation Notes Emergency Warranty & Service The Benchmark Scheme... -
Page 3: Operating The Boiler
1.0 Operating the Boiler In Operation 1. The Potterton Gold H is a range of high efficiency condensing boilers. 2. In common with other condensing boilers its exceptional efficiency means the flue gases are cooled to such an extent that steam is often visible at the outside flue terminal. -
Page 4: Troubleshooting
Boiler not working 2.0 Troubleshooting START Make sure the gas Is there electricity to the Ignition Spark will commence supply is turned ON boiler ? and check if other gas appliances are operating (e.g. fire, Boiler flame established cooker). (Check that a flame is visible through the sight glass) Check electrical supply to boiler is switched on. - Page 5 2.0 Troubleshooting Is the Room Thermostat (if Is the Timer ON and fitted) set high enough ? calling for heat ? Typical examples of external timer CH OFF CH ON Turn Room Thermostat to maximum setting (typical example shown) Ensure timer is set for Central Heating ON (see any instructions supplied with timer) If you don’t know what you need to do...
-
Page 6: Clearances
3.0 Clearances 390mm 5mm Min 5mm Min For your Safety 1. This appliance must have been installed in accordance with the manufacturer’s instructions and the regulations 200mm in force. 2. Any modification that may interfere with the normal operation of the appliance without express written permission from the manufacturer or his agent could invalidate the appliance warranty. -
Page 7: Care Of The Boiler
4.0 Care of the Boiler Cleaning the Outercase 1. The painted panels should be wiped with a damp cloth and then dried completely. DO NOT USE ABRASIVE CLEANING AGENTS. Frost Protection 1. The boiler does not have integral frost protection. It is recommended that the installer fits a suitable protection device to the system controls if required. -
Page 8: Legislation
5.0 Legislation Installation, Commissioning, Service & Repair 1. This appliance must be install in accordance with the manufacturer’s instructions and the regulations in force. Read the instructions fully before installing or using the appliance. 2. In GB, this must be carried out by a competent person as stated in the Gas Safety (Installation &... -
Page 9: Notes
6.0 Notes © Baxi Heating UK Ltd 2011... - Page 10 6.0 Notes © Baxi Heating UK Ltd 2011...
-
Page 11: Emergency
7.0 Emergency Warning ! If you smell gas Do not operate light switches Do not operate any electrical equipment Do not use a telephone in the hazardous area Extinguish any naked flame and do not smoke Open windows and doors in the hazardous area Turn off the gas supply at the meter Warn any other occupants and vacate the premises Telephone the National Gas Emergency Service on:-... -
Page 12: Warranty & Service
Brooks House, Coventry Road, Warwick. CV34 4LL After Sales Service 0844 871 1560 Technical Enquiries 0844 871 1555 After Sales Service 0844 871 1560 Website www.potterton.co.uk e&oe 720514003 (5/11) © Baxi Heating UK Ltd 2011...
