Infinity MODULUS Owner's Manual page 9

For Wall-Mounting
Note: The customer is responsible for the correct selection and use
of mounting hardware (available through hardware stores) that will
ensure the proper and safe wall-mounting of the speakers.

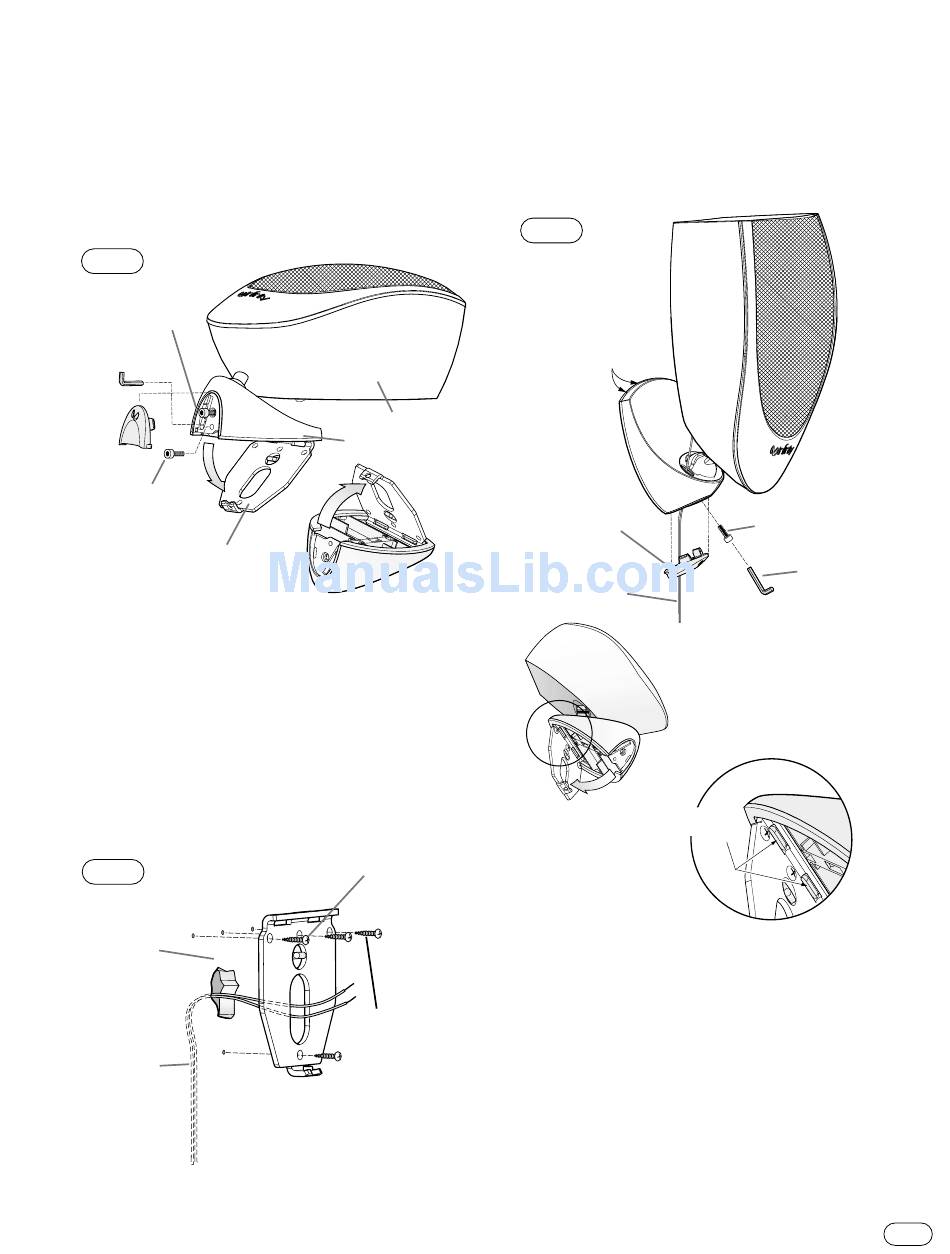

1. Remove the Modulus from its box. Remove rubber cover from
the base and pull out Allen wrench. Use Allen wrench to remove
mounting plate screw and remove mounting plate from base.
F 6
IGURE
Adjustment
Screw
Allen Wrench
housed
in Base
Rubber
Cover
Mounting Plate Screw
Mounting Plate
2. Secure the mounting plate to a wall stud using (4) #8-32
wood screws with a minimum 1-1/4" length. If fastened to
sheetrock or wallboard with a minimum 1/2" depth, use #8
screws with plastic inserts or anchors. Do not mount directly to
sheetrock or wallboard without plastic inserts or anchors
designed for #8 screws. One of the mounting plates in the
Modulus system has a built-in bubble level for leveling while
securing to the wall.This mounting plate should be used as a
template for mounting the mounting plates that do not include
a bubble level.
2a. In cases where you would like to run the speaker wires through
the wall, the mounting plate has a center hole for wire access.
WALL
F 7
IGURE
Hole in the wall
Speaker Wires
3. Run the speaker wires through the base as shown below.
Attach base to mounting plate by slipping the returns on
underside of base into slots on the top of the mounting plate
and hinging the base downward. Secure base by inserting and
tightening mounting plate screw.Tighten adjustment screw,
Speaker
Base
fixing the speaker in position.
Viewed from below
Bubble Level
4. Insert the Allen wrench back into holder in base
and attach rubber cover.
#8-32 wood
screws (not
included)
F 8
IGURE
Returns on
underside of Base
Rubber Cover
Speaker Wires
Note: Base has returns
that grab Mounting Plate
Adjustment Screw
Allen Wrench
MODULUS
5
