Subwoofer Controls; Rear Panel; Front Panel - Infinity MODULUS Owner's Manual

S
UBWOOFER

Rear Panel

Line Level
Input
In Out
Select
L L
Speaker
R R
Line
+ +
Right
Left
+ +
In Out
SPEAKER LEVEL
Caution: For continued protection against risk of fire,
replace only with same type fuse and rating.
Attention: Utiliser un fusible de rechange
de meme type et calibre.
3A 120VAC 60Hz 3A 250V POWER
On
Off
ANSI/UL-1492
LR106476
WARNING: SHOCK HAZARD • DO NOT OPEN
NO USER SERVICEABLE PARTS INSIDE
AVIS: RISQUE DE CHOC ELECTRONIQUE
NE PAS OUVRIR

Front Panel

C
ONTROLS
Low-Pass
Filter Phase R.A.B.O.S.
o
On 180 On
o
Off 0 Off
Freq.
Level
Width

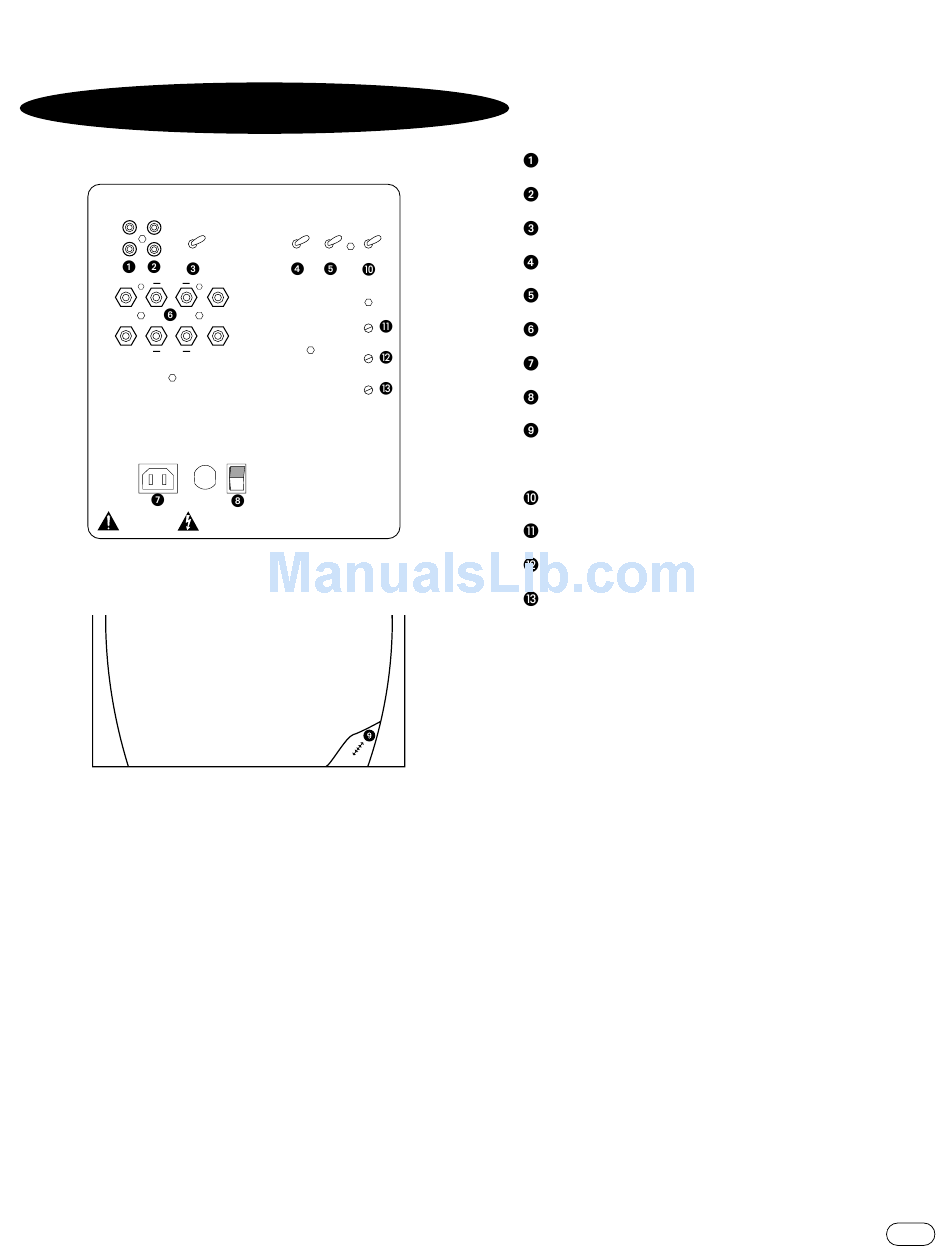

Line-Level Inputs
Line-Level Outputs
Input Selector
Low-Pass Filter Selector
Phase Switch
Speaker-Level Connectors
AC Cord Input
Power Switch
Subwoofer Gain Control
Room Adaptive Bass Optimization System Controls (R.A.B.O.S.)
R.A.B.O.S. On/Off Switch
Center-Frequency Adjustment
R.A.B.O.S. Level
Bandwidth Adjustment
A Few Suggestions
We recommend that you do not operate your speakers or
subwoofer with the bass, treble and loudness controls set to
full boost.This will place undue strain on your electronics and
speakers and could damage them.
The volume control setting on your processor/preamp or
receiver is not a specific indication of the overall loudness level
of the speakers.The only important consideration is the loudness
level at which the system can be played, regardless of where the
volume control is set.
Always turn down the volume control setting on your processor/
preamp or receiver when changing a cassette or CD, or
switching inputs to AM or FM operation. Excessively loud
transients (clicks or popping sounds) can damage the satellite
speakers and possibly the subwoofer.
Important!
Whenever changing cables, pulling plugs, etc., ALWAYS TURN
OFF ALL EQUIPMENT, including the subwoofer.This prevents
transients from entering the speakers and prevents electrical
energy from reaching you. Keep all connections out of the reach
of children.
