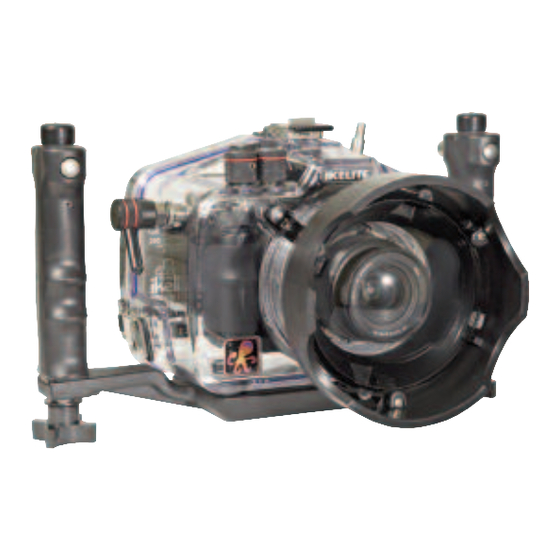

Ikelite SLR-DC Housing
i n s t r u c t i o n
#6841 for Sony DSLR-A100
Lid
Snap
AEL (AE-Lock)
Back O-ring
Shutter
Release
Camera
Tray
Camera
Lid Snap
Mounting Bolt
SIDE VIEW
3
m a n u a l
Mode Dial
Depth-of-Field Preview
Control Dial
Port Lock
Optional
Gear
Port
Sleeve
Port
O-ring
AEL (AE-Lock)
Port Lock
Shutter
Release
Aluminum Tray
FRONT VIEW
Function
Lid Snap
Lens
Release
Zoom
A
Quick
Release
Button
B
C
D
E
Focus
F
Mode
Lid Snap
External Strobe Connector and Waterproof Cap
[A] Function
[D] Display
[B] Power
[E] Delete
[C] Menu
BACK VIEW
Control Dial
Mode Dial
Quick-Release
Depth-of-Field Preview
Strobe
Function
Mount
Zoom
Control
Quick
Release
Button
Gear Sleeve
Drive Gear
Port
Opening
Viewfinder Port
AEL (AE-Lock)
G
H
TTL
-1
1
F
-3
I
Lid Snap
-1
-2
MAN
J
[F] Playback
[H] Multi Selector
[G] Exposure
[I] Steady Shot
2
[J] Flash Compensation
Push Forward
Lid Snap Lock
Lift
O-ring
Camera Tray
Mounting Bolt
DS
DS
125
50/51
200
80
DS50 / DS51 / DS80
DS125 / DS200
4
Rubber
Handle
Strobe
Mount
