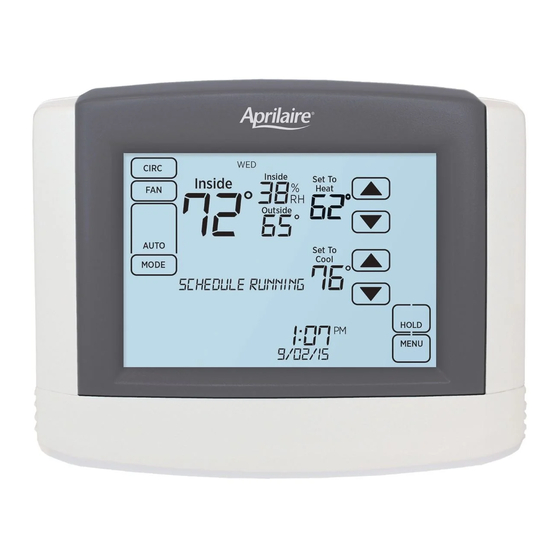

Model 8600 Universal Touch Screen Thermostat Owner’s Manual Includes Operating Instructions and Warranty Information READ AND SAVE THESE INSTRUCTIONS 61000728A 8600 Tstat Owners.indd 1 10/7/10 11:44:50 AM... -
Page 2: Table Of Contents
Battery installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 61000728A 8600 Tstat Owners.indd 2 pROGRAMMING Set time and date . -
Page 3: About Your New Thermostat
• Easy to use temperature control can override program schedule at any time. • Progressive recovery ensures proper temperature at the start of a program event. • Built in compressor protection prevents damage to your equipment. 61000728A 8600 Tstat Owners.indd 3 wARNING 10/7/10 11:44:50 AM... -
Page 4: Controls & Display Overview
MESSAGE CENTER (SCROLLING TEXT) Low BATTEry inDiCATor CurrEnT TiME & DATE NOTE: BACkLigHT is ACTiVATED wiTH FirsT BuTTon PrEss AnD AuToMATiCALLy Turns oFF. 61000728A 8600 Tstat Owners.indd 4 CurrEnT DAy ouTDoor TEMPErATurE MAIN MENU BUTTON TEMPERATURE SETTING TEMPERATURE ADJusTMEnT HoLD BuTTon... -
Page 5: Controls & Display Overview
AbOUT yOUR NEw THERMOSTAT CONTROlS & DISplAy OVERVIEw – MAIN MENU sET sCHEDuLE BUTTON 61000728A 8600 Tstat Owners.indd 5 usEr sysTEM sETTings CLEAN SCREEN (LOCKOUT TOUCH SCREEN For 30 sEConDs) sET VACATion HoLD (HoLD–To TiME AnD DATE) SET CURRENT TIME... -
Page 6: Operation
[DONE] to save and exit, or [CANCEl] to exit without saving . The thermostat will save and exit if nothing is pressed within 10 seconds . 61000728A 8600 Tstat Owners.indd 6 CHANGE TEMpERATURE SET pOINT press to adjust the current set point. -
Page 7: Select Fan Setting (On/Auto/Circ)
[DONE] to save and exit, or [CANCEl] to exit without saving . The thermostat will save and exit if nothing is pressed within 10 seconds . 61000728A 8600 Tstat Owners.indd 7 ClEAN SCREEN press [MENU] to enter the main menu . -
Page 8: Battery Installation
90 seconds with no battery or AC power . The reset button located under the battery cover can be used to reset the thermostat to factory defaults . The reset button should only be used by the installer. 61000728A 8600 Tstat Owners.indd 8 wARNING RESET BUTTON... -
Page 9: Set Time And Date
[DONE] to save and exit, or [CANCEl] to exit without saving . The thermostat will save and exit if nothing is pressed within 20 seconds . 61000728A 8600 Tstat Owners.indd 9 SET DATE press [MENU] to enter the main menu . -
Page 10: Understanding Program Schedules
. The fan program is pre-set to AUTO for all events . Event designator Start time WAKE LEAVE RETURN SLEEP 61000728A 8600 Tstat Owners.indd 10 Set temperature Heat 6:00AM 70°F (21°C) 8:00AM 62°F (17°C) 5:00PM 70°F (21°C) -
Page 11: Progressive Recovery
Example: if the wAkE time is 6 am, and the temperature is 70°, the heat will come on before 6 am, so the temperature is 70° by the time you wake at 6 am . 61000728A 8600 Tstat Owners.indd 11 (CONTINUED) -
Page 12: Changing Program Schedules
[SET SCHEDUlE] to enter schedule programming . press to select the day . Note: This step is not displayed for weekday/weekend schedules . 61000728A 8600 Tstat Owners.indd 12 press [Next], then to set the start time of the first event . press [Next], then to set the setpoints of the first event . -
Page 13: Changing Program Schedules
[Next] to advance to the next event . Repeat above process for each remaining event . press [DONE] to save the schedule for the day . 61000728A 8600 Tstat Owners.indd 13 (CONTINUED) The thermostat will display the CoPy option. -
Page 14: Program Schedule Holds
. This will temporarily hold the temperature setting until the next scheduled event . 61000728A 8600 Tstat Owners.indd 14 press to adjust the end time of the hold. if end time is not adjusted, the Temporary Hold will end at the start of the next event . -
Page 15: Permanent
. To cancel the Permanent Hold, press [CANCEl HOlD] . 61000728A 8600 Tstat Owners.indd 15 pROGRAM SCHEDUlE HOlDS – VACATION VACATION pROGRAM HOlD This energy saving feature allows you to suspend the programmed schedule for extended periods of time . -
Page 16: Vacation
SCHEDUlE HOlDS – VACATION VACATION pROGRAM HOlD (continued) press [Next], then [fAN] to set the fan mode . 61000728A 8600 Tstat Owners.indd 16 (CONTINUED) press [Next], then press [Next], then press [DONE] to save and exit, or [CANCEl] to exit without saving . -
Page 17: Setup Menu
[Next] or [back] to page through the settings (the setting is displayed in the message center) . MESSAGE CENTER (SCROLLING TEXT) 61000728A 8600 Tstat Owners.indd 17 press to adjust the setting. (selected option flashes .) Press [DONE] to save and exit, or [CANCEl] to exit without saving . -
Page 18: User System Settings Table
Backlight intensity Backlight intensity as a percentage of full on Daylight savings Enable or disable auto daylight savings 61000728A 8600 Tstat Owners.indd 18 factory default setting (bold) and setting range fahrenheit Celsius Off : No lockout Partial lockout Full lockout... -
Page 19: Limited Warranty
