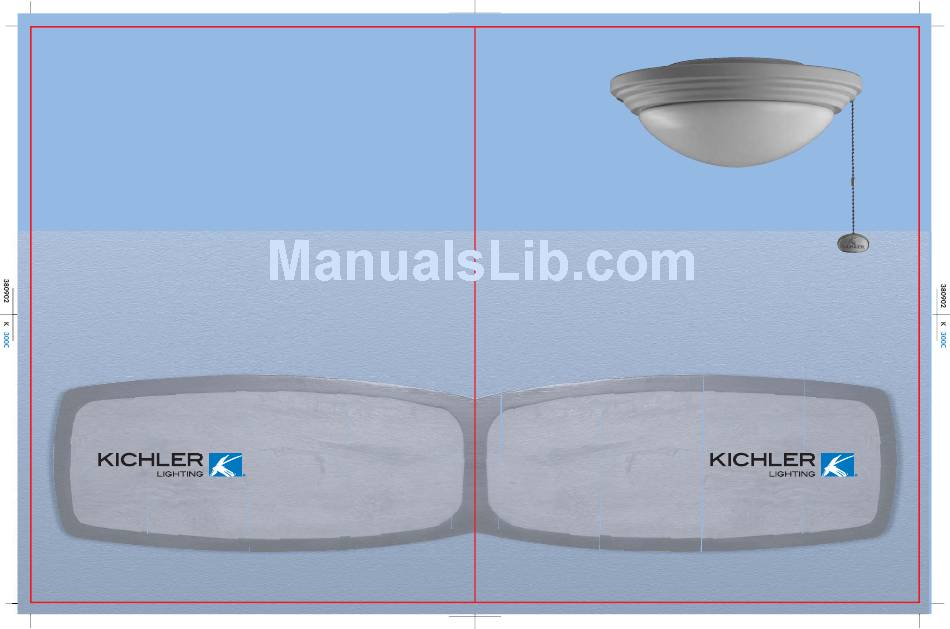

- Page 1 Universal Ceiling Fan Light Fixture A Kichler ® Select light fixture ™ Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
- Page 2 1. SAFETY RULES WARNING! RISK OF ELECTRIC SHOCK "CAUTION-RISK OF FIRE" All electrical connections must be made in CONSULT A QUALIFIED ELECTRICIAN TO ENSURE accordance with local codes, ordinances, or CORRECT BRANCH CIRCUIT CONDUCTOR. national codes. If you are unfamiliar with installing electrical wiring, secure the services of a qualified electrician.
- Page 3 Outdoor Wet Light Kit 3. INSTALLING THE LIGHT KIT 1. Remove and discard the center plug from the switch housing. Attach the light kit to the switch housing by feeding the light kit wires Lock washer (black and white) through the hole in the Switch center of the switch housing, then screw the housing...
- Page 4 4. INSTALLING THE LIGHT BULBS & GLASS SHADE 1. Install both of the 13 watt GU24 compact fluorescent bulbs (provided), one in each fixture socket. (Fig. 3) 2. Mount the glass shade to the light kit by loosening partway the screws on the glass holders, lift the glass onto the light kit, then carefully tightening the screws by hand evenly to the glass.
