Kichler Lighting 15478CBR Instructions

CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main
fusebox before starting and during the installation.
This fixture is intended for installation in accordance with the
National Electric Code (NEC) and Local code specifications.
Failure to adhere to these codes and instructions may result in
serious injury and/or property damage and will void the warranty.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING — To reduce the risk of FIRE OR INJURY TO PERSONS.
1) Turn off / unplug and allow to cool before replacing lamp.
2) Lamp gets HOT quickly! Contact only switch / plug when
turning on.
3) Do not touch hot lens or cowl.
4) Do not remain in light if skin feels warm. (Light is intense, it may
cause "sunburn".)
5) Do not look directly at lighted lamp.
6) Keep lamp away from materials that may burn.
7) Use only with wattage and lamp marked on fixture.
8) Do not touch the inner glass envelope of the lamp at any time.
Use a soft cloth. Oil from skin may damage lamp.
9) Do not operate the fixture with a damaged or missing lens.
FOR USE WITH LANDSCAPE LIGHTING SYSTEMS ONLY.
1) The device is accepted as a component of a landscape lighting
system where the suitability of the CSA or UL labeled
combination shall be determined by CSA, UL respectively or
the local inspection authorities having jurisdiction.
2) Fixture shall be connected to an extra low voltage transformer
approved for use with landscape lighting systems.
3) The unit low voltage cable shall:
a) be protected by routing in close proximity to the luminaire
or fitting, or next to a building structure such as a house or
deck;
b) not be buried except for a maximum 6 inches (15.2 cm) in
order to connect to the main low voltage cable; and
c) have the length cut off so that it is connected to a
connector within 6 inches (15.2 cm) from a building
structure, a luminaire, or fitting.
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW
VOLTAGE), CARE SHOULD BE TAKEN TO KEEP CLEAR OF POTENTIALLY
COMBUSTIBLE MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE
NEEDLES, GRASS CLIPPINGS, MULCH, OR ANY DEBRIS THAT HAS ACCUMU-
LATED ON THE LIGHT BULB, LENS, OR BODY OF THE FIXTURE.
ASSEMBLY AND INSTALLATION
1) TURN OFF POWER.
2) Determine desired location for mounting fixture. At desired
location, hammer stake into ground. To avoid damage to
stake, place a board on top of stake while hammering or use
a rubber mallet. If ground is hard and stake is difficult to
install, make a crosscut in ground using a flat shovel.
3) Clear away area in ground at wireway opening in stake.
4) Route fixture cable through wireway opening and screw
stem into stake. Care should be taken to ensure wire is not
twisted. If assembly does not look straight, adjust by
pushing or pulling on stake only.
5) Install lamp (not provided) into socket inside fixture. NOTE:
Use caution when installing. Use a soft cloth to handle lamp;
DO NOT touch glass envelope with bare hands. If this
happens, clean lamp with denatured alcohol and a lint free
cloth.
6) For 15480 only - Remove hex nut from top shade and
assemble with bottom shade. Reinstall hex nut.
7) Install gasket and glass hood over bulb on top of stem.
8) Screw harp onto stem to secure glass. (DO NOT over
tighten.)
9) Thread shade assembly onto harp.
10) Make wire connections using an approved wiring connectors
(not supplied.) following instructions provided by manufacturer.
REV 28-JUL-2020
DOM ETRE INSTALLE A L'EXTERIEUR
CAUTION
For warranty information please visit: kichler.com/warranty
Pour de plus amples informations sur la garantie, cliquez sur le lien ci-dessous : kichler.com/warranty
OUTDOOR USE ONLY
For Assembling and Installing Fixtures in Canada
Pour L'assemblage et L'installation Au Canada

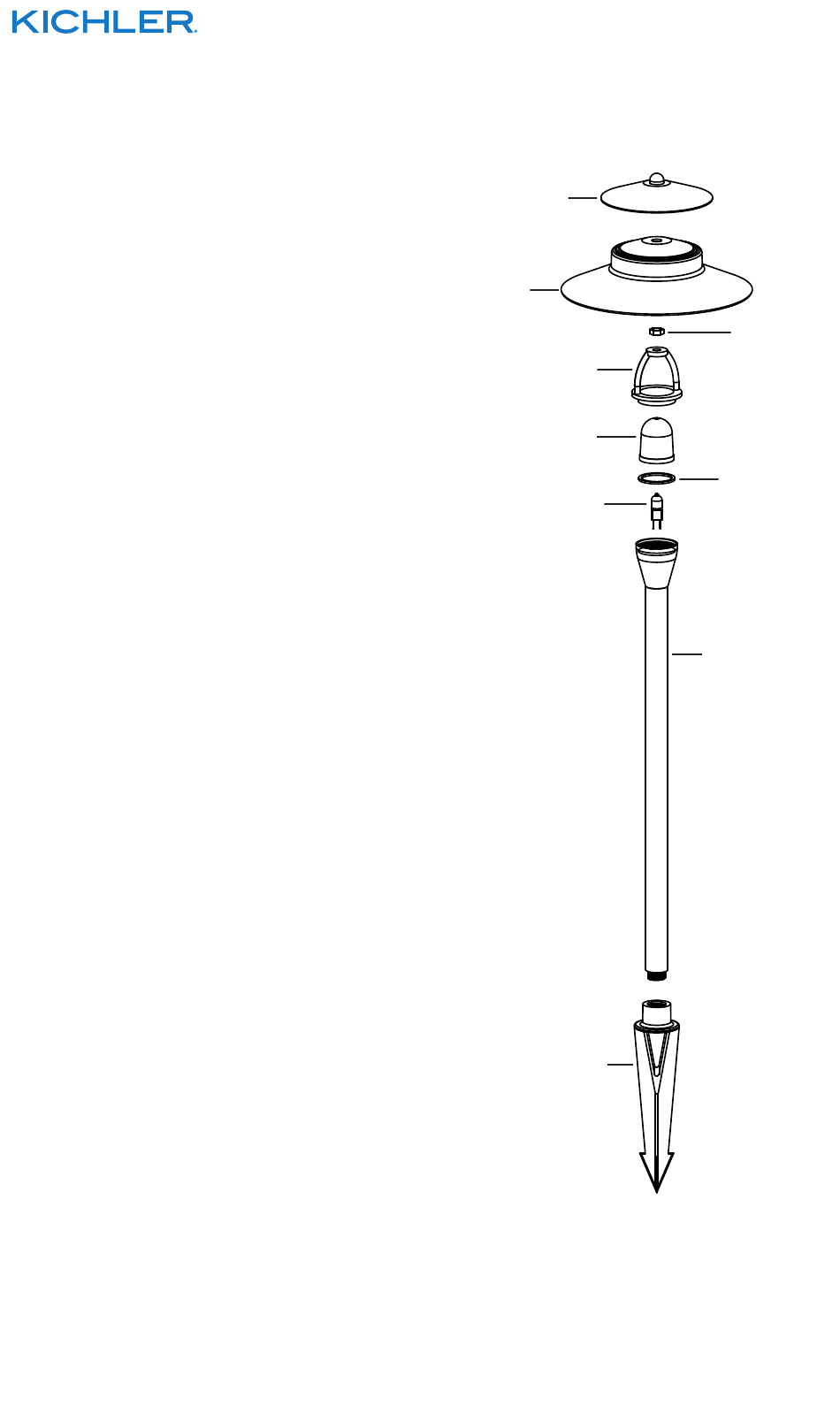

TOP SHADE
CACHE SUPÉRIEUR
BOTTOM SHADE
CACHE INFÉRIEUR
GLASS HOOD
CAPOT EN VERRE
SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L'AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
We're here to help
INSTRUCTIONS
ECROU HEXAGONAL
HARP
HARPE
LAMP
(NOT INCLUDED)
AMPOULE
(NON FOURNIE)
STAKE
PIQUET
866-558-5706
Hrs: M-F 9am to 5pm EST
NUT
GASKET
JOINT
STEM
TIGE
IS-15480-CB
