Please retain these instructions for future reference.
IMPORTANT:
The installer must leave these instructions with the owner.
Only those who are certified to do so should perform service on these heaters.
Lynx Model No. LHFS
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
An LP Cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
Improper installation, adjustment, alteration, service or
maintenance can cause injury, death or property damage. Read the
installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.
WARNING:
!
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent or home.
M
o
d
e
l
M
o
d
e

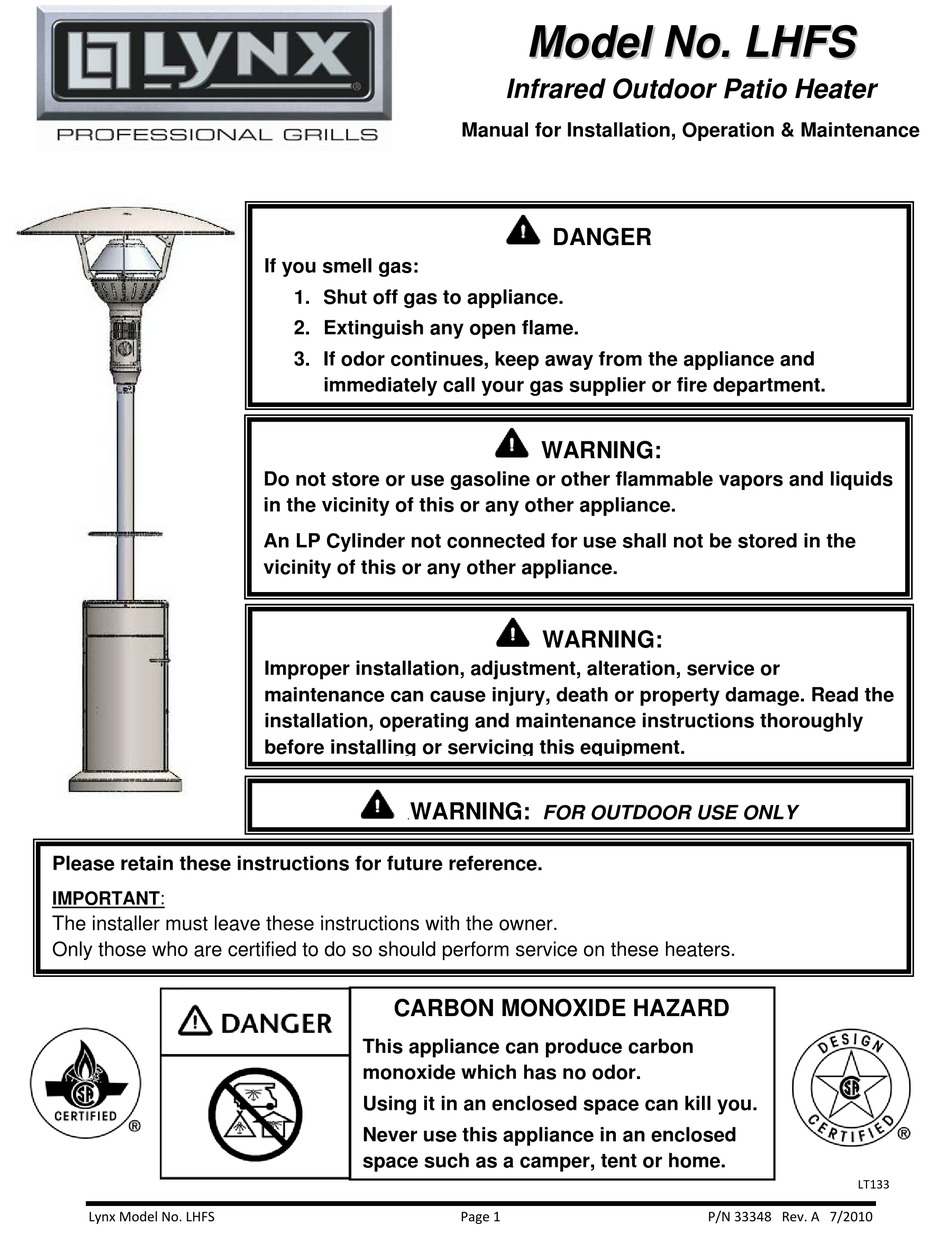

Infrared Outdoor Patio Heater
Manual for Installation, Operation & Maintenance
DANGER
WARNING:
WARNING:
FOR OUTDOOR USE ONLY
Page 1
N
o
.
L
H
F
l
N
o
.
L
H
F
P/N 33348 Rev. A 7/2010
S
S
LT133
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lynx LHFS
Summary of Contents for Lynx LHFS
- Page 1 CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent or home. LT133 Lynx Model No. LHFS Page 1 P/N 33348 Rev. A 7/2010...
-
Page 2: Table Of Contents
OPERATING INSTRUCTIONS ....................23 ..............................23 IGHTING ............................... 23 MAINTENANCE AND TROUBLE SHOOTING ..............24 ............................24 AINTENANCE ..........................25 EPLACEMENT ARTS ........................ 26 UNCTIONAL IRING IAGRAM ............................. 27 ARTS EFERENCE WARRANTY..........................29 Lynx Model No. LHFS Page 2 P/N 33348 Rev. A 7/2010... -
Page 3: Caution And General Safety
• Cleaning of the appliance should only be done with non-combustible and non-corrosive cleaning agents. • DO NOT alter the heater in any way; this includes shortening the pole or removing the Base Body cover or Top Reflector. Lynx Model No. LHFS Page 3 P/N 33348 Rev. A 7/2010... - Page 4 • LP-Gas Cylinders must be stored outdoors in a well-ventilated area out of the reach of children. A disconnected cylinder must have dust caps tightly installed and must not be stored in a building, garage or any other enclosed area. Ensure the storage area meets all local fire & safety requirements. Lynx Model No. LHFS Page 4 P/N 33348 Rev. A 7/2010...
-
Page 5: Applicable Regulations
• Provided with a cylinder connection device compatible with a QCC1 connection (Quick Connect Coupling). Installation or repair of this heater should only be done by personnel qualified for the installation of powered gas appliances. (Certified by the local or national regulating body) Lynx Model No. LHFS Page 5 P/N 33348 Rev. A 7/2010... -
Page 6: Location Planning
Always allow room for removal of the Top Reflector and Burner head for maintenance purposes. The heater aspirates (needs) air for combustion. Do not locate heater where there are severe draft conditions or airflow restrictions to the Burner head of the heater. Lynx Model No. LHFS Page 6 P/N 33348 Rev. A 7/2010... -
Page 7: Specifications / Details
Applicable Regulations section of this manual. The Cylinder and its connector fittings must be maintained in good condition. Gas & Power Specifications Maximum Fire Rate: 46,000 BTU/hr Gas Manifold Pressure: 11” W.C. Ignitor Electric Supply: One (1) “AA” Battery Maximum Inlet Gas Supply Pressure: 250psi Lynx Model No. LHFS Page 7 P/N 33348 Rev. A 7/2010... -
Page 8: Clearance To Combustible Materials
CLEARANCE TO COMBUSTIBLES SIDE MODEL No. SIDES BELOW BELOW LHFS 18" 22" 33" Combustible materials are considered to be wood, compressed paper, plant fibres, plastic, Plexiglas or other materials capable of being ignited and burned. Such materials shall be considered combustible even through flame-proofed, fire-retardant treated or plastered. -
Page 9: Installation Instructions
Base Support Pillars & Counterweight Pole Neck Outer Shield - With Hardware attached Note: Remove plastic covering before lighting the heater Wheels - With Hardware attached Pole Assembly Shield Support Arms (4) - With Hardware attached Lynx Model No. LHFS Page 9 P/N 33348 Rev. A 7/2010... - Page 10 #10 x 1 1/2” Wood Screw (3) heater to wooden deck. COMPLETE ARTS IST IS LOCATED IN THE Maintenance and Trouble Shooting SECTION OF THIS DOCUMENT Packaged Separately: Table Reflector (Optional) Note: Remove plastic covering before lighting the heater Lynx Model No. LHFS Page 10 P/N 33348 Rev. A 7/2010...
-
Page 11: Assembly Of Outdoor Patio Heater
2. Connect the Wheel Mounting Bracket to the base using two (2) screws and nuts attached. Insert the screws through the Base of the Heater into the Wheel Mounting Bracket, so the nuts are visible. Lynx Model No. LHFS Page 11 P/N 33348 Rev. A 7/2010... - Page 12 Floor / Ground. Screws Base Bracket Base Bracket 4. Assemble the Pole and the Base Support Pillars together using six (6) M8-1.25 x 90 mm Hex Head Carriage Bolts provided. Lynx Model No. LHFS Page 12 P/N 33348 Rev. A 7/2010...
- Page 13 Slide the Table down over the top of the Pole, position it in place 8” (200 mm) up from the Base Cover. Secure by tightening the screw(s) of the Table Clamp around the inside neck of the Table and the Pole so that the Table will not move. 200 mm Lynx Model No. LHFS Page 13 P/N 33348 Rev. A 7/2010...
- Page 14 Burner. BURNER POLE NECK 7. Assemble the Shield Support Arms to the Burner housing using the Two (2) M4-0.7 x 10mm screws and nut sets shipped on each arm. Install all four (4) Support Arms. Lynx Model No. LHFS Page 14 P/N 33348 Rev. A 7/2010...
- Page 15 B below). It is normal for the Emitter to have some movement for thermal expansion (once the Reflector is assembled the Emitter will be held more tightly in-place). Figure -A- Figure -B- Remove Finger from Shield Support Arm Lynx Model No. LHFS Page 15 P/N 33348 Rev. A 7/2010...
- Page 16 11. Secure the Burner Head to the Pole with the Three (3) 1/4”-20 x 1/2" screws previously removed from the Pole Neck piece. Make sure that the Burner Control Panel Knob faces the same direction as the door of Base Body. Lynx Model No. LHFS Page 16 P/N 33348 Rev. A 7/2010...
- Page 17 This heater will not operate at an inclined position. Ensure the heater is in the upright position, and should not be positioned on an incline. Your Patio heater is now assembled and is ready to connect to your LP-Gas Supply Cylinder. Lynx Model No. LHFS Page 17 P/N 33348 Rev. A 7/2010...
-
Page 18: Position / Move The Heater
Wheel / roll Heater to new location and return Base to ground. Ensure Heater is on level ground and stable in new location. 4. If the Heater is going to be operated at the new location the “Secure the Heater” procedure must be completed. Lynx Model No. LHFS Page 18 P/N 33348 Rev. A 7/2010... -
Page 19: Secure The Heater
Drill 3 - Pilot Holes Secure using Wood Screws in Wood Screw Pilot hole drill size: Wood Deck pilot holes aligned with Base Hardwood = 7/64" #10 x 1 " Brackets Softwood = 3/32" Lynx Model No. LHFS Page 19 P/N 33348 Rev. A 7/2010... -
Page 20: Connecting The Lp-Gas Supply
1. Attach the LP-Gas Cylinder to the Tank Base Retainer using the Cylinder Retention Screw. Make sure the LP-Gas cylinder is in the upright position. Keep gas cylinder Upright Position at ALL times Cylinder retention screw Lynx Model No. LHFS Page 20 P/N 33348 Rev. A 7/2010... - Page 21 Make sure door is shut and stays shut at all time and is not in pedestrian pathway. • Move Heater to desired location. • Secure the Base Body to the floor. • Perform a Leak Test to check the Gas Hose Assembly connections for any gas leaks. Lynx Model No. LHFS Page 21 P/N 33348 Rev. A 7/2010...
-
Page 22: Testing / Commissioning
After passing the Leak Test your patio heater is now ready for use. Caution: Heater will produce smoke for the first time it is being let, this is normal. Make sure NOT to light the heater in an enclosed area. Lynx Model No. LHFS Page 22 P/N 33348 Rev. A 7/2010... -
Page 23: Operating Instructions
2. Turn propane tank gas valve clockwise to ’OFF' position when heater is not in use WARNING: Improper Lighting, Shutting Down can cause injury, death or property damage. Read the Lighting and Shutting Down instructions thoroughly before operating or servicing this equipment. Lynx Model No. LHFS Page 23 P/N 33348 Rev. A 7/2010... -
Page 24: Maintenance And Trouble Shooting
2. Check condition of the Burner, especially the integrity of the flame screen. 3. Inspect condition of spark and sense electrode. Check for cracks in ceramic insulators or excessive corrosion. 4. Inspect condition of high tension lead to spark rod. Lynx Model No. LHFS Page 24 P/N 33348 Rev. A 7/2010... -
Page 25: Replacement Parts
Ensure sense electrode is not corroded, is not grounded or has a cracked insulator. Electrode position is radially across face of burner. Replacement Parts • Use only manufacturer recommended replacement parts. • For a complete list of replacement parts contact your dealer. Lynx Model No. LHFS Page 25 P/N 33348 Rev. A 7/2010... -
Page 26: Functional Wiring Diagram
Maintenance and Trouble Shooting Functional Wiring Diagram Pilot Assembly Ignition Valve Switch Lynx Model No. LHFS Page 26 P/N 33348 Rev. A 7/2010... -
Page 27: Parts Reference
ES112 Assembly Pole and Pole Flange ET003 Table (Optional) ES099 Manual (with Battery) Base Cover ES098 LT126 not shown Pole Neck ES100 IR Energy reserves the right to make improvements to its product line without notice. Lynx Model No. LHFS Page 27 P/N 33348 Rev. A 7/2010... - Page 28 Maintenance and Trouble Shooting Lynx Model No. LHFS Page 28 P/N 33348 Rev. A 7/2010...
-
Page 29: Warranty
Warranty MODEL No. LHFS - INFRARED OUTDOOR PATIO HEATER WARRANTY The Manufacturer warrants to the original owner that the product will be free of defects in material and workmanship for a period of 5 years from the date of purchase, for everything except the electronic control module, spark electrode, valve, regulator and sense electrodes which have a replacement warranty period of 1 year.
