Summary of Contents for McIntosh LS320

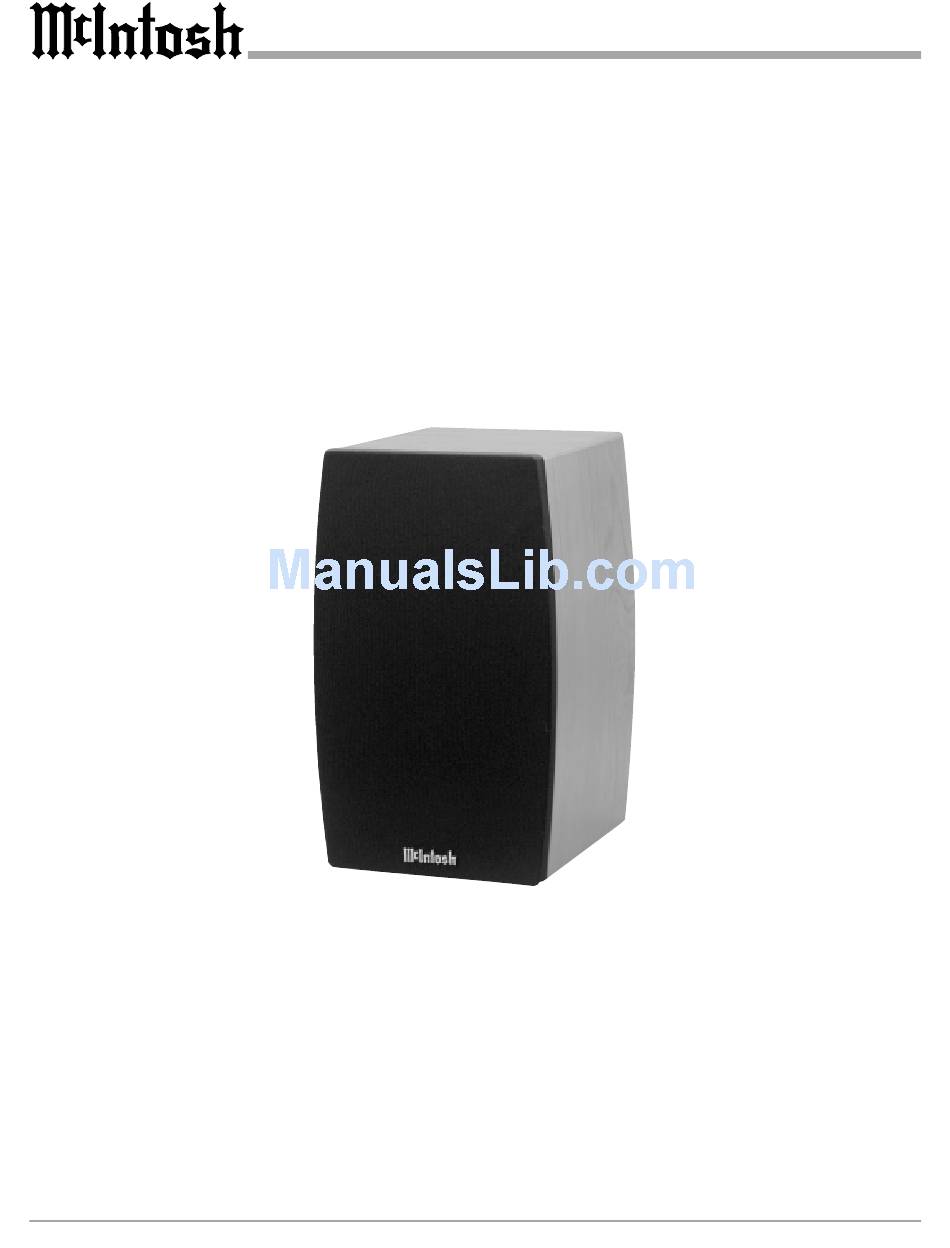

- Page 1 Owner’s Manual LS320 Loudspeaker System LS320 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...
-
Page 2: Safety Instructions
8. Do not install near any heat sources such as radiators, McIntosh or have the same characteristics as the origi- heat registers, stoves, or other equipment (including nal part. Unauthorized substitutions may result in fire, amplifiers) that produce heat. -
Page 3: Table Of Contents
If an obvious lack of high or low frequencies is noticed, the Loudspeaker Protection If it is determined that your McIntosh product is in need of Device may have activated. Sound output from the repair, you can return it to your dealer. You can also return Loudspeaker Element affected will be reduced when the it to the McIntosh Laboratory Service Department. -
Page 4: Introduction
The Loudspeaker Elements used in the LS320 Loudspeaker This has been the result of the design of the new McIntosh System have also been designed for high efficiency. As a LS320 Loudspeaker System. Each loudspeaker element... -
Page 5: Dimensions
Dimensions LS320 Dimensions The following dimensions can assist in determining the best location for your LS320 Loudspeaker System. There is additional information on the next page pertaining to in- stalling the LS320 into cabinets. Rear View of LS320 Front View of LS320 with Grill Removed... - Page 6 Dimensions Side View of LS320 with Grill Side View of LS320 with Grill Removed...
-
Page 7: Installation
Installation Installation Locating your Loudspeakers right speakers arrive at the same time, the distance from Loudspeaker placement in a room can greatly affect each loudspeaker to the listener should be as close to the performance. The LS320 is designed to work as a Left or same as possible. -
Page 8: How To Connect
How to Connect How to Connect The McIntosh LS320 Loudspeaker System utilizes binding posts for speaker wire connections. Refer to figure 3. 1. Connect a loudspeaker cable from the black (negative - ) Speaker Connections loudspeaker binding post to the negative or common output terminal of one channel of the amplifier. -
Page 9: Front And Rear Views
Front and Rear Views 1 inch Dome Tweeter 8 inch LD/HP Woofer Connecting Terminals... -
Page 10: Specifications
Specifications Specifications Driver Complement 8 inch Woofer 1 inch Dome Tweeter Impedance 4 ohms Nominal Frequency Response 60Hz - 20kHz + 2dB (Anechoic Response) Sensitivity 86dB (2.8V/1m) Crossover Frequency 1.5kHz Power Handling 200 Watts Maximum Dimensions 17 inches (42.5cm) Height, 10.25 inches (25.62cm) Width, 10-5/8 inches (26.99cm) Depth (including Grill) Standard Finish Black Ash, Natural Cherry, Red Cherry... -
Page 11: Packing Instruction
Use the original shipping carton and interior parts only if they are all in good serviceable condition. If a shipping carton or any of the interior part(s) are needed, please call or write Customer Service Department of McIntosh Labo- ratory. - Page 12 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, NY 13903 McIntosh Part No. 040733...
