Summary of Contents for McIntosh LS360

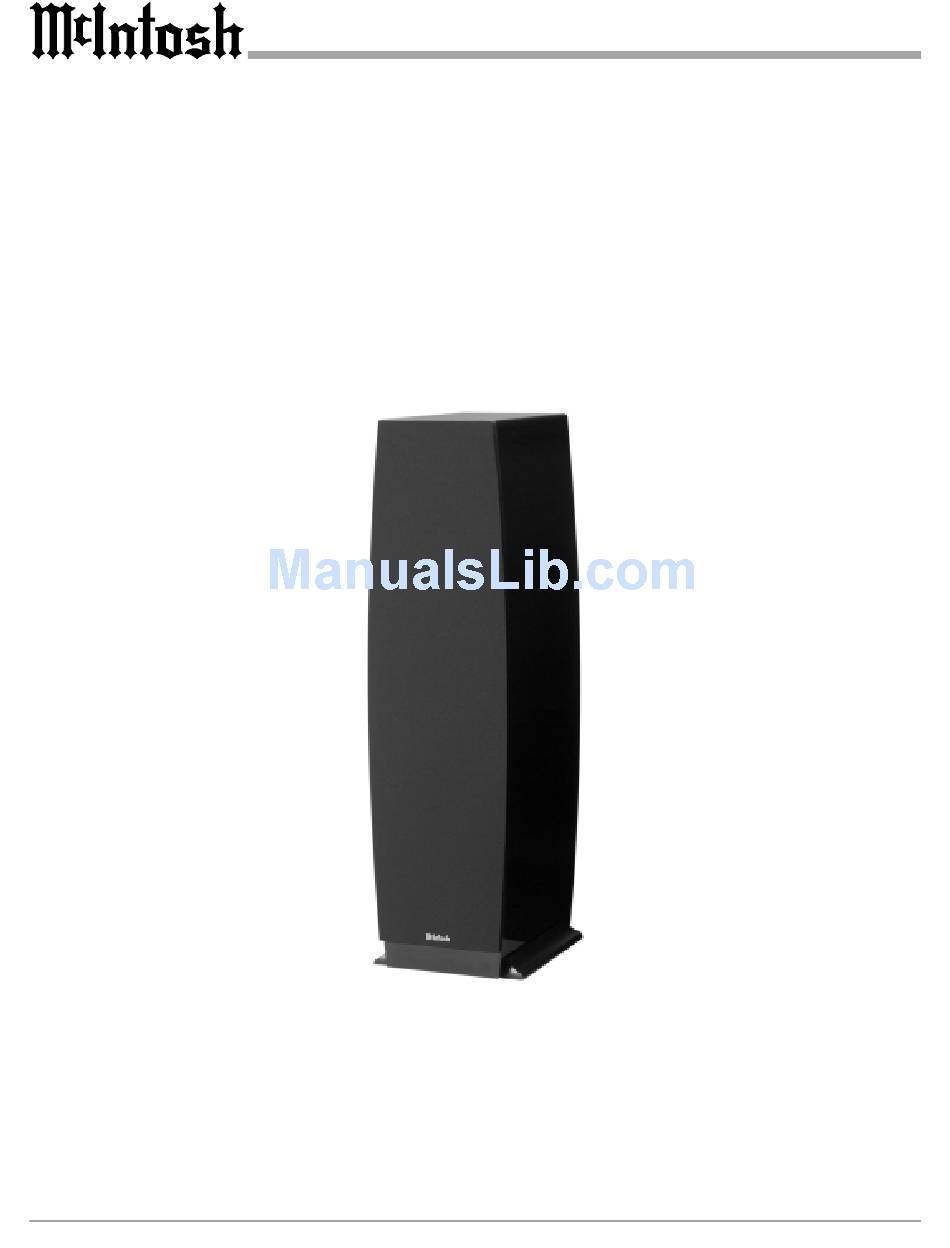

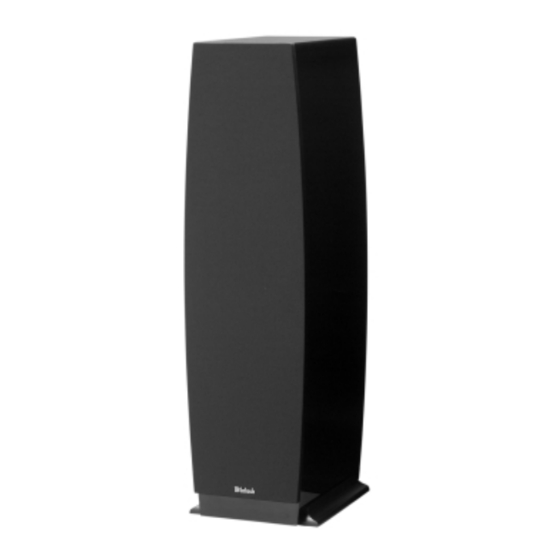

- Page 1 Owner’s Manual LS360 Loudspeaker System LS360 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...
-
Page 2: Safety Instructions
8. Do not install near any heat sources such as radiators, McIntosh or have the same characteristics as the origi- heat registers, stoves, or other equipment (including nal part. Unauthorized substitutions may result in fire, amplifiers) that produce heat. -
Page 3: Table Of Contents
If an obvious lack of high or low frequencies is noticed, the Loudspeaker Protection Device may have If it is determined that your McIntosh product is in need of activated. Sound output from the Loudspeaker Element repair, you can return it to your dealer. You can also return affected will be reduced when the protection is triggered. -
Page 4: Introduction
Loudspeaker System have also been designed for high This has been the result of the design of the new McIntosh efficiency. As a result any McIntosh Power Amplifier, even LS360 Loudspeaker System. Each loudspeaker element our smallest, will provide satisfying room filling sound. -
Page 5: Dimensions
Dimensions LS360 Dimensions The following dimensions can assist in determining the best location for your LS360 Loudspeaker System. There is additional information on the next page pertaining to in- stalling the LS360 into cabinets. Front View of LS360 with Grille Removed Rear View of LS360... - Page 6 Dimensions Side View of LS360 with Grille Side View of LS360 with Grille Removed...
-
Page 7: Installation
Installation Installation Surround Loudspeakers work best located to either side of Optional Feet and above the listening position, the same distance from Two sets of optional feet (four Tiptoes the monitor. Back Surround Loudspeakers work best on and four Glides) are supplied with the the back wall. -
Page 8: How To Connect
How to Connect How to Connect The McIntosh LS360 Loudspeaker System utilizes binding 1. Remove the gold interconnecting straps from the two posts for speaker wire connections. Refer to figure 3. pairs of binding posts on the speakers. 1. Connect a loudspeaker cable from the black (negative - 2. -
Page 9: Front And Rear Views
Front and Rear Views Five 1 inch Tweeter Array 8 inch LD/HP Midrange 10 inch LD/HP Woofers Ports Connecting Terminals... -
Page 10: Specifications
Specifications Specifications Driver Complement Two 10 inch Woofers 8 inch Midrange Five 1 inch Dome Tweeters Impedance 4 ohms Nominal Frequency Response 29Hz - 20kHz + 2dB (Anechoic Response) Sensitivity 88dB (2.8V/1m) Crossover Frequencies 1.5kHz 200Hz Power Handling 600 Watts Maximum Dimensions 49-1/4 inches (125.09cm) Height, 13-1/2 inches (33.75cm) Width, 17-1/2 inches (44.45cm) Depth (including Grille) -
Page 11: Packing Instruction
Use the original shipping carton and interior parts only if they are all in good serviceable condition. If a shipping carton or any of the interior part(s) are needed, please call or write Customer Service Department of McIntosh Labo- ratory. - Page 12 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, NY 13903 McIntosh Part No. 040755...
