Summary of Contents for Idea-fly F210

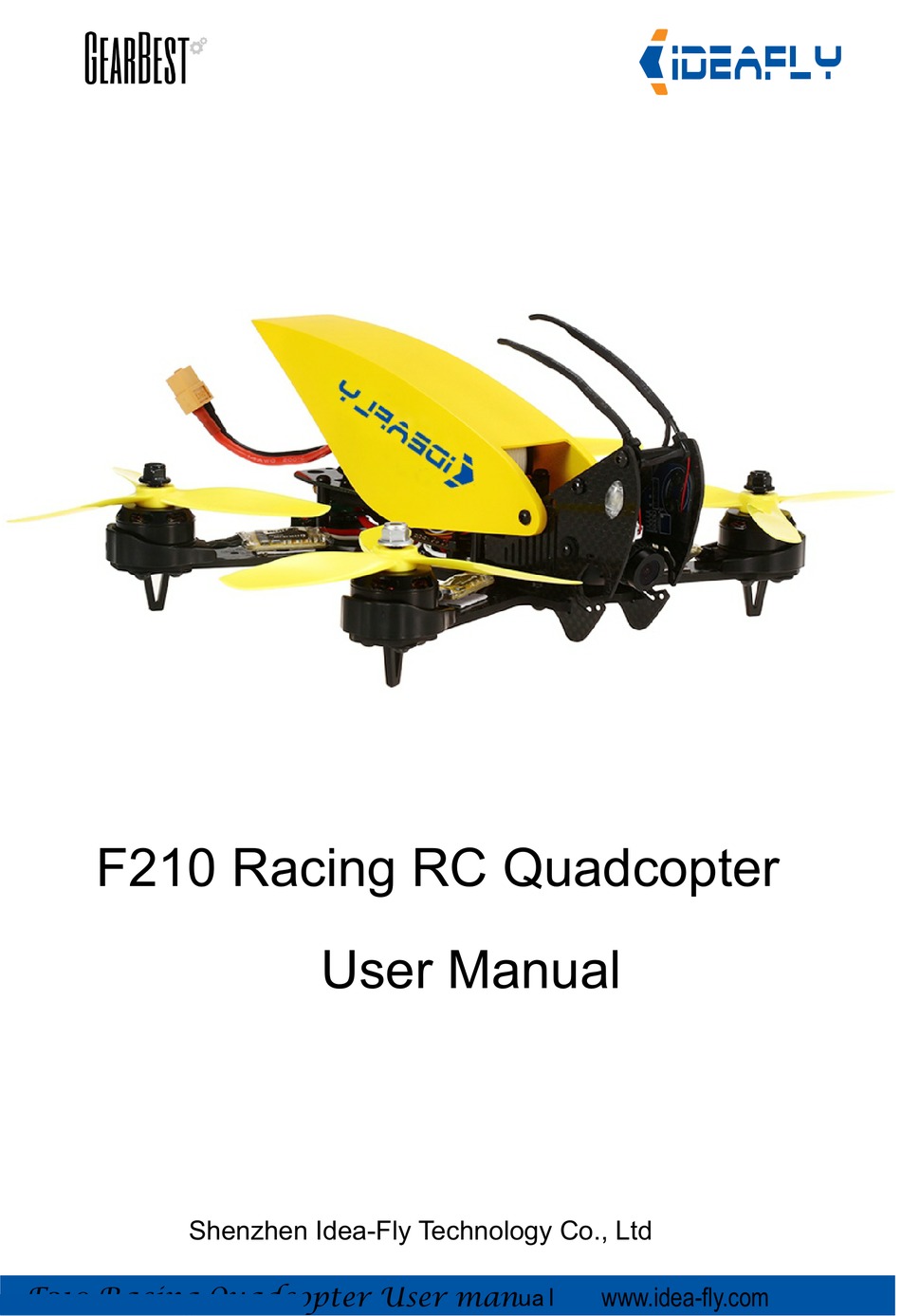

- Page 1 F210 Racing RC Quadcopter User Manual Shenzhen Idea-Fly Technology Co., Ltd F210 Racing Quadcopter User manual www.idea-y.com...
- Page 2 Please contact customer service for the latest instructions and warnings. Idea-Fly will reserve the rights to update this disclaimer. The quadcopter can be extremely dangerous and cause bodily injury.
-
Page 3: Table Of Contents
Tableof Contents Get to know your aircraft Get to know your remote controller Attention before ight Charging the battery Prepare Your Quadcopter Ready for ight Motor Unlock/Lock End of ight Operation Instruction Specications F210 Racing Quadcopter User manual www.idea-y.com... -
Page 4: Get To Know Your Aircraft
Brilliant 2205 2300KV motors. With imported bearings processed through CNC and 100% dynamic balance Battery Cover Rear Indicator LED Propeller(CCW) LiPo Battery F3 Flight Controller Propeller(CW) Propeller(CW) Receiver Screw For propeller Power Connector Throttle Value LED F210 Racing Quadcopter User manual www.idea-y.com... -
Page 5: Get To Know Your Remote Controller
Get to know your remote controller The F210 build-in 3 different ight modes, you can use the SWB ofthe remote controller to change the ight mode. Antentan Handle bar Trim Stick 2 Stick 1 Trim OK Button Up Button Down Button... -
Page 6: Attention Before Ight
The F210 mini-quad is recommended for pilots,14 years or older, with RC hobby experience. Only y the F210 in dry weather, with low wind, please do not y in rain or heavy foggy conditions. Always choose large open elds for ying. Check local LAW and ordinances for legal ying areas. -
Page 7: Prepare Your Quadcopter
1. Make sure the battery installed in a suitable place so that the quadcopter has a best balance. 2. Please secure the battery with the velcro strap rmly to prevent battery moving during the ight. F210 Racing Quadcopter User manual www.idea-y.com... -
Page 8: Ready For Ight
LED becomes constant blue, means the motors are unlocked. Be very careful at this point, as pushing the throttle stick will start the motors. The unlock method shown as below F210 Racing Quadcopter User manual www.idea-y.com... -
Page 9: End Of Ight
End of ight 1. Land the aircraft, disarm(lock) the aircraft. 2. First power off the aircraft by unplugging the battery, then turn off the remote controller. 3. Finally, remove the battery from the aircraft. F210 Racing Quadcopter User manual www.idea-y.com... -
Page 10: Operation Instruction
Operation Instruction F210 Racing Quadcopter User manual www.idea-y.com... -
Page 11: SpeciCations
Product size (L x W x H): 20.50 x 20.00 x 8.50 cm / 8.07 x 7.87 x 3.35 inches and Weight Package size (L x W x H): 41.00 x 27.00 x 11.00 cm / 16.14 x10.63 x 4.33 inches F210 Racing Quadcopter User manual www.idea-y.com... - Page 12 Tel:+86-755-32110006 User manual is subject to change without prior notice Please go to Idea-Fly ofcial website to get the latest information F210 Racing Quadcopter User manual www.idea-y.com...
