TECHNICAL SPECIFICATIONS

MODEL
System type
Amplifi er Continuous Power 200 W Class H + 50 W
Max SPL

Frequency response

Connectors
Controls
Crossover Frequency
Input Impedance
Input Sensitivity
Low Frequency Device
High Frequency Device
Crossover Frequency
Angular coverage
Trapezoidal taper
Monitor taper
Flying System
Construction
Finishing
Mounting Pole
Weight
Dimensions (W x H x D)
Power Supply
Maximun Consumption
Rated Consumption*
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.

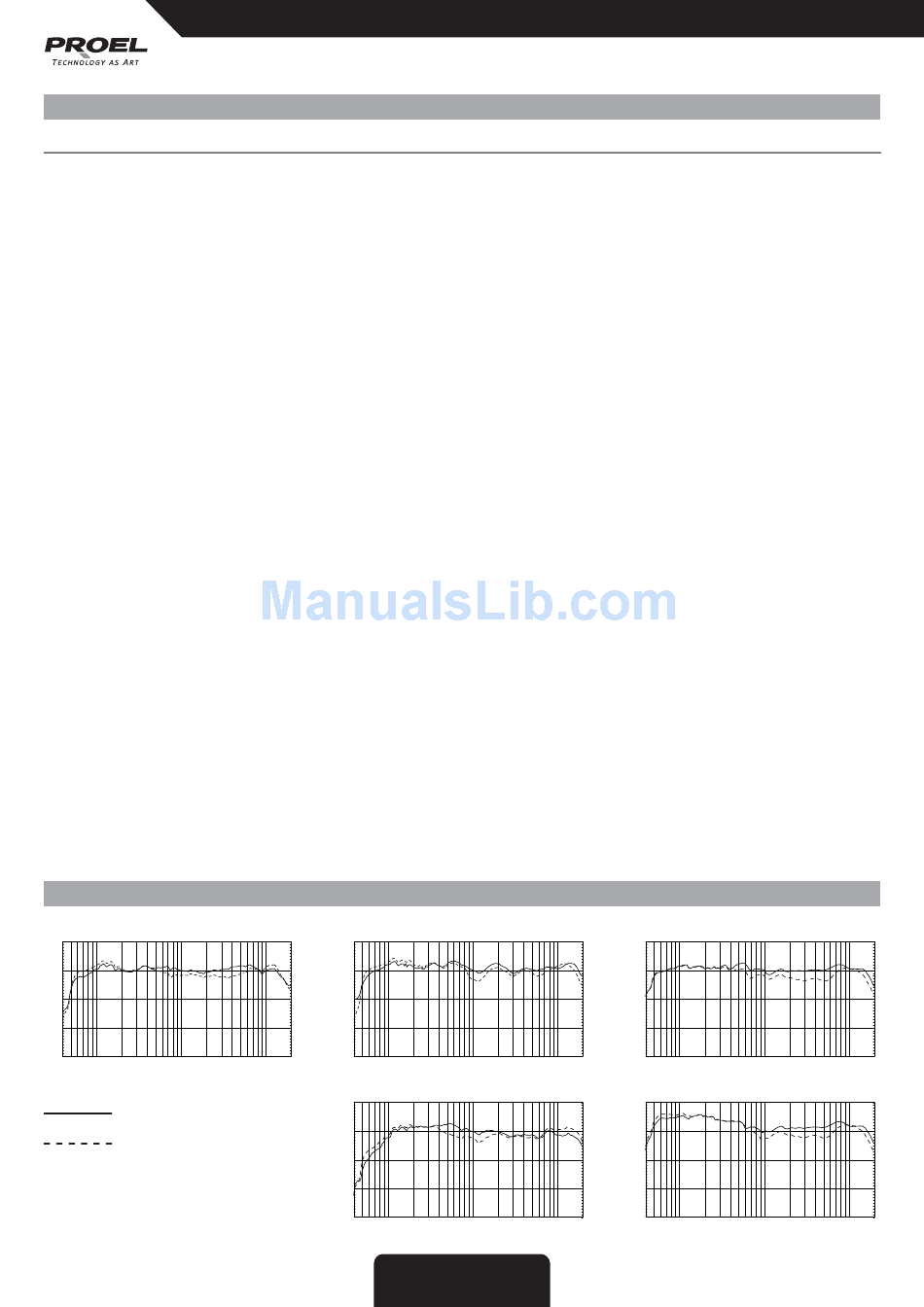

FREQUENCY RESPONSE
NET 10A
+10
0
dB
-10
-20
-30
40 100 1K
Hz
LIVE / MONITOR (NET12MA) SET
MUSIC / FOH (NET12MA) SET
4
NET10A NET12A
2-way vented enclosure 2-way vented enclosure
300 W Class D + 100 W
Class AB Class AB
123 dB 125 dB
70 Hz - 20 kHz 55 Hz - 20 kHz
IN: XLR Combo IN: XLR Combo
LINK: XLR M LINK: XLR M
Level, gnd lift, LIVE / Level, gnd lift, LIVE /
MUSIC MUSIC
2500 Hz 2000 Hz
20 kohm balanced 20 kohm balanced
10 kohm unbalanced 10 kohm unbalanced
0 dBu / 0.775 V 0 dBu / 0.775 V
10'' woofer - 2" VC 12'' woofer - 2.5" VC
1'' compression driver 1'' compression driver
- 1.4" VC - 1.75" VC
2500 Hz 2000 Hz
90° H x 60° V with 90° H x 60° V with
constant coverage horn constant coverage horn
8° 8°
- -
5 x M10 - top, bottom, 5 x M10 - top, bottom,
rear rear
15 mm plywood 15 mm plywood
Anti-scratch BLACK Anti-scratch BLACK
paint fi nish paint fi nish
1 x bottom double angle 1 x bottom double angle
fl ange, 0° or 7.5° fl ange, 0° or 7.5°
17.5 kg (38.6 lb) 22 kg (48.6 lb)
355 x 525 x 330 mm 410 x 640 x 380 mm
230 VAC or 120 VAC 230 VAC or 120 VAC
- 50/60 Hz - 50/60 Hz
390 VA 550 VA
135 VA 110 VA
NET 12A
+10
0
dB
-10
-20
-30
10K 20K 40
NET 12MA
+10
0
dB -10
-20
-30
40

SPECIFICHE TECNICHE

NET15A
2-way vented enclosure
500 W Class D + 100 W
Class AB
128 dB
50 Hz - 20 kHz
IN: XLR Combo
LINK: XLR M
Level, gnd lift, LIVE /
MUSIC
2000 Hz
20 kohm balanced
10 kohm unbalanced
0 dBu / 0.775 V
15'' woofer -3" VC
1'' compression driver
- 1.75" VC
2000 Hz
90° H x 60° V with
constant coverage horn
8°
-
5 x M10 - top, bottom,
rear
15 mm plywood
Anti-scratch BLACK
paint fi nish
1 x bottom double angle
fl ange, 0° or 7.5°
27.5 kg (50.7 lb)
470 x 720 x 430 mm
230 VAC or 120 VAC
- 50/60 Hz
700 VA
150 VA

RISPOSTA IN FREQUENZA

100 1K 10K
Hz
100 1K 10K
Hz
specifi cations
NET215A NET12MA
Quasi 3-way vented 2-way vented enclosure
enclosure coaxial stage monitor
1000 W Class D + 100 W 300 W Class D + 100 W
Class AB Class AB
135 dB 125 dB
40 Hz - 20 kHz 55 Hz - 20 kHz
IN: XLR Combo IN: XLR Combo
LINK: XLR M LINK: XLR M
Level, gnd lift, LIVE / Level, gnd lift,
MUSIC MONITOR / FOH
400 -2000 Hz 2000 Hz
20 kohm balanced 20 kohm balanced
10 kohm unbalanced 10 kohm unbalanced
0 dBu / 0.775 V 0 dBu / 0.775 V
2x15'' woofer -3" VC 12'' woofer - 2.5" VC
1'' compression driver 1'' neodymium
- 1.75" VC compression driver
- 1.75" VC
400 -2000 Hz 2000 Hz
90° H x 60° V with 80°
constant coverage horn
8° -
- 36°
5 x M10 - top, bottom, 4 x M10 - bottom
rear
15 mm plywood 15 mm plywood
Anti-scratch BLACK Anti-scratch BLACK
paint fi nish paint fi nish
1 x bottom 1 x left side double
angle fl ange, 0° or 7.5°
47 kg (103.4 lb) 18 kg (39.7 lb)
470 x 1120 x 500 mm 510 x 330 x 500 mm
230 VAC or 120 VAC 230 VAC or 120 VAC
- 50/60 Hz - 50/60 Hz
1470 VA 550 VA
405 VA 110 VA
NET 15A
+10
0
dB
-10
-20
-30
20K 40 100
NET 215A
+10
0
dB -10
-20
-30
20K 40 100
1K 10K 20K
Hz
1K 10K 20K
Hz
