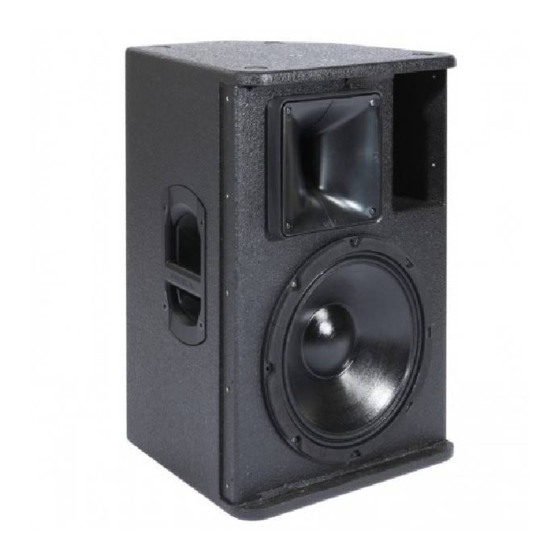

PROEL NEOS12AXS User Manual

KEY FEATURES
• Premium transducers
• C-AUDIO CLASS D power amplifi ers with SWITCH MODE power supply
• 96KHz, 40bit fl oa ng point C-AUDIO CORE DSP
• Network func onality thru PRONET control so ware
• Access to EQ, DYNAMICS and DELAY and real me parameter control
• Plywood cabinets with die-cast handles, dual-angle pole holder and mul ple fl ying points
INTRODUCTION
NEOS AXS series represents the highest expression of PROEL GROUP Research & Development applied in loudspeaker systems. A natural evolu on
of the NEOS Series, it incorporates the latest technologies developed by PROEL in advanced sound reinforcement systems able to provide premium
sound, maximum performance and up-to-date features.
NEOS AXS is a complete range of self-powered loudspeaker systems combining cu ng-edge transducers with C-AUDIO CLASS D amplifi ers and
digital processors, thus ensuring the best integra on between acous cs and electronics for an op mal performance.
The NEOS AXS are designed for the use both as high-performance mobile systems for live applica ons and as versa le and remotely controllable
systems for advanced fi xed installa ons.
All the models are powered by C-AUDIO DA power modules, a new genera on of CLASS D power amplifi ers with SWITCH MODE power supply, able
to provide an excep onal sound defi ni on together with very high dynamics and low distor on in an ultra-compact package.
The on board control electronics are based on the 96KHz, 40bit fl oa ng point C-AUDIO CORE DSP pla orm, able to op mize further the system
performances through the use of sophis cated EQ, crossover and dynamics algorithms. The CORE processing provides also network func onality
through the PRONET control so ware based on CANBUS communica on protocol (USB2CAN converter needed).
The PRONET control so ware provides access to the major processing features, including full PARAMETRIC and DYNAMIC EQ, advanced
COMPRESSOR/LIMITERS and DELAY, together with the real me control of parameters such as temperature, supply voltage and protec ons.
Se ng created by the user can be saved in user presets that can be recalled through the control so ware or from the unit's interface.
TECHNICAL SPECIFICATION
Acous cal
System type
Low frequency driver
High frequency driver
Frequency response
Horn type
Coverage
Max SPL
Electrical
Input Impedance
Input Sensi vity
Signal Processing
Amplifi er type
Output power
Connectors
Controls
Cooling
Power Supply
Max consump on
1/8 power out consump on

USER MANUAL

NEOS12AXS
digital self-powered loudspeaker
Full range 2-way, vented
12'' woofer - 2.5" VC
1'' compression driver - 1.75" VC
55 Hz - 20 kHz
Asymmetrical rotatable horn
100°>80° H x 60° V
127 dB
20 kohm balanced, 10 kohm unbalanced
+4 dBu / 1.25 V
CORE processing 24 bit / 96 kHz
C- AUDIO Class D with SMPS
500 + 500 W
IN - LINK: XLR M - XLR F
NETWORK IN - OUT: ETHERCON® (NE8FAV)
MAIN LINK: PowerCon® (NAC3MPB)
MAIN: PowerCon® (NAC3MPA)
LEVEL, PRESET (FLAT / HPF / MONITOR/ USER)
TERMINATE, GND LIFT
Variable speed DC fan
230 VAC or 120 VAC 50/60 Hz
750 VA
250 VA
Mechanical
Construc on 15 and 18 mm birch plywood
Finish An -scratch black paint
Flying hardware 4 x M10 - top, bo om, rear
Trapezoidal taper 10°
Monitor taper 42°
Pole holder 1 bo om dual angle (0° / 7.5°)
Dimensions (W x H x D) 400 x 600 x 365 mm
Weight 24 kg (52.9 lbs)
Frequency Response Diagram
120.0
dBSPL
110.0
100.0
90.0
80.0
70.0
40 50 100 200 500
black = FLAT gray = MONITOR
1k 2k Hz 5k 10k 20k
