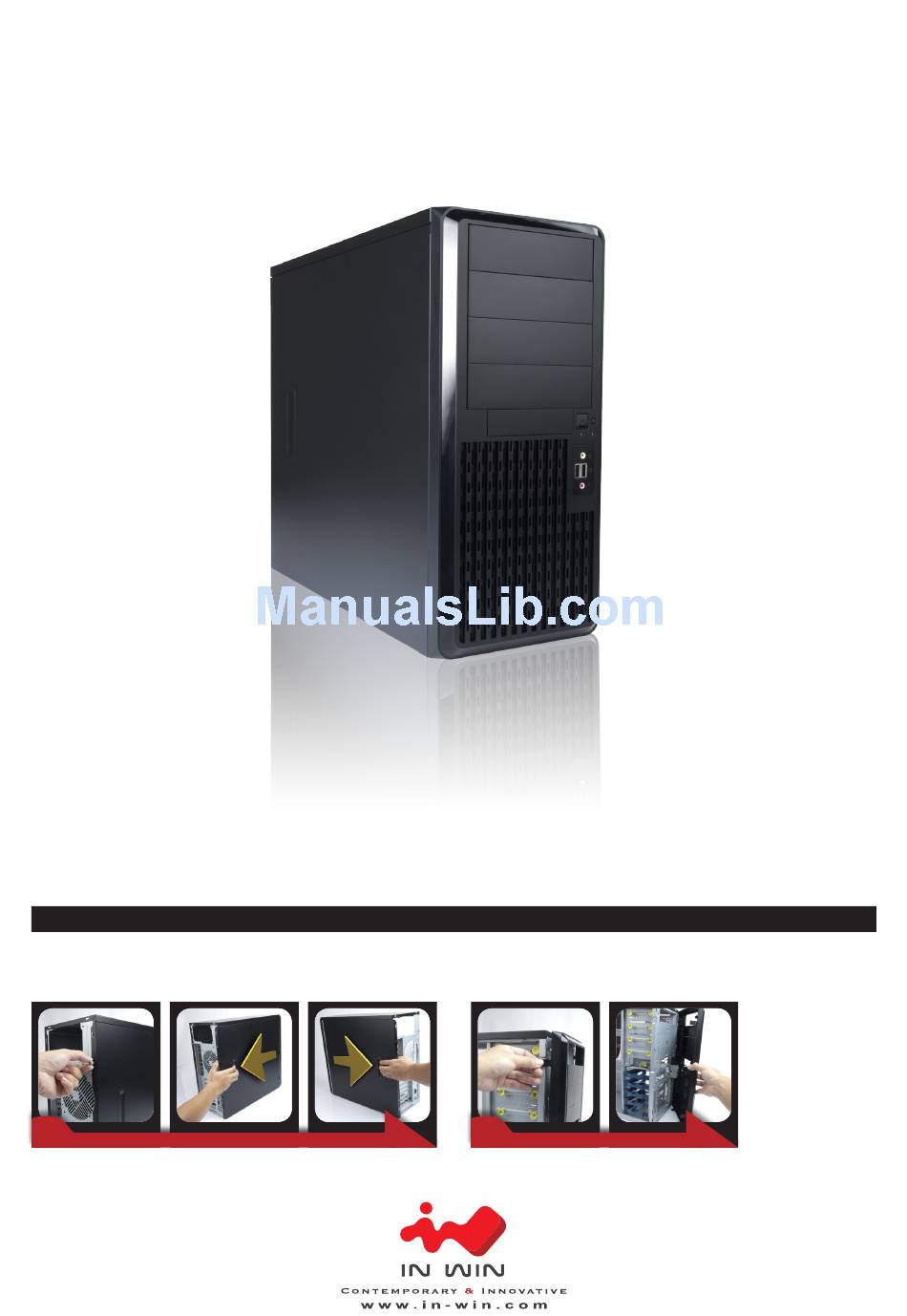

IW- PE689

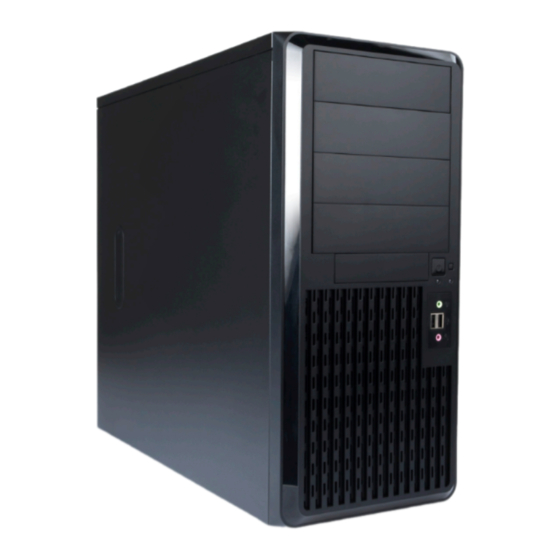

Pedestal Entry Server Chassis
(Please read the following steps to assemble)
Please note that the pictures in this installation
guide are for your reference only, and they
may vary from the actual product.
Installation Guide
= Opening the Chassis =
1. Remove the Side Covers
2.Remove the Front Panel
Unlock the locking tabs and remove the front panel.
Unscrew the Thumb screws and remove both side covers.
