Summary of Contents for In Win 305

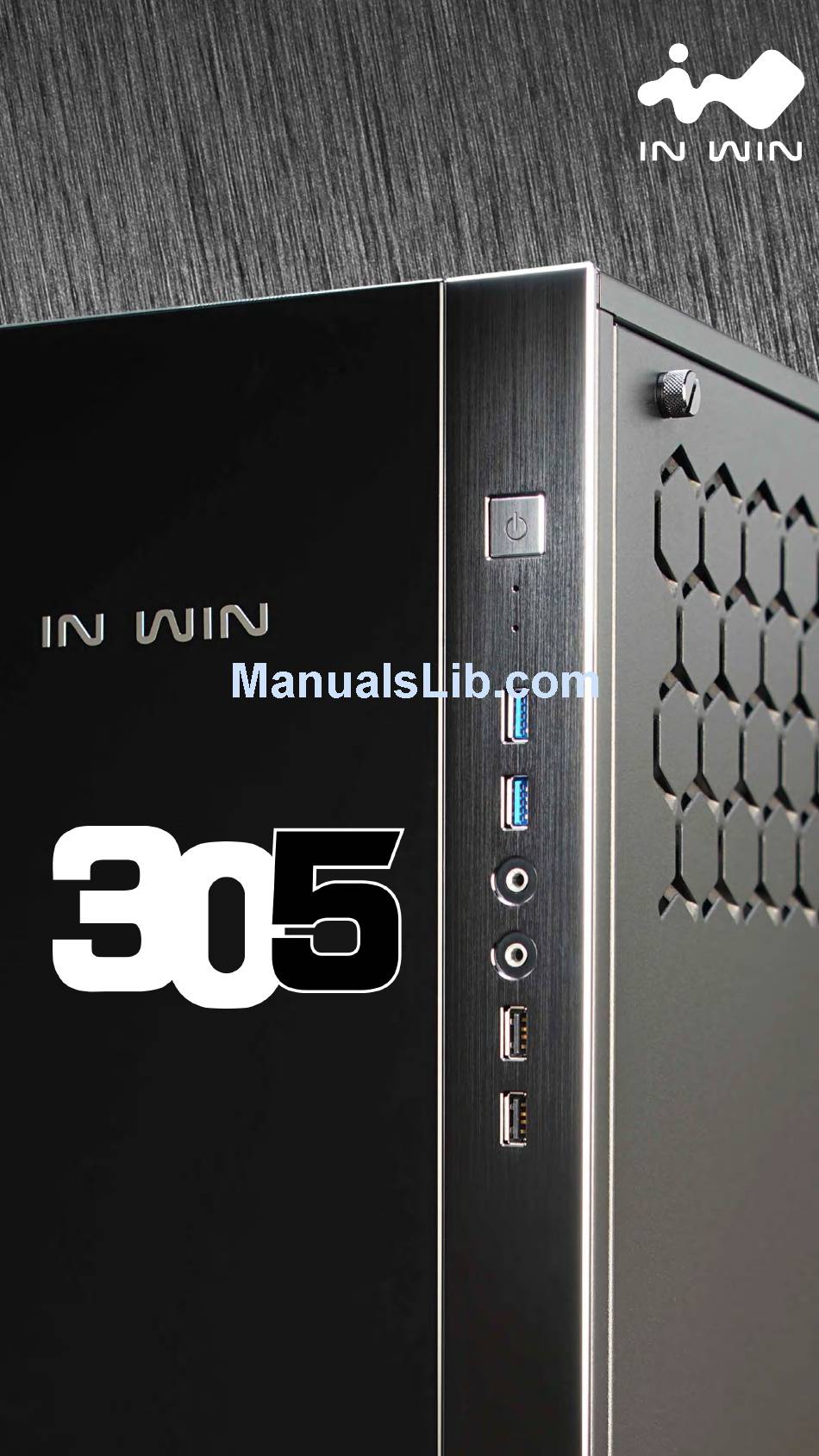

- Page 1 User Manual...
- Page 2 Product Story The IN WIN team presents the 305, a simple, yet elegant computer chassis crafted from steel and tempered glass. While the 305 is a stunning visual display, it’s because of the quality and skilled engineering that pieced together such a fine piece...
-
Page 3: Expansion Slots
13.1" x 24" x 22.5" Net Weight 11.53kg / 25lb Gross Weight 13.42kg / 29lb * In Win products comply with RoHS regulation. * Specifications may vary based on different regions. * Pre-installed glass panel. Extra fee for closed panel. - Page 4 Chassis QR Code Card Accessories Bag...
- Page 5 Package Content Motherboard Stand-off x 7 Motherboard Stand-off Socket x 1 Hexagon Head Screws x 18 2.5" HDD Screws x 18 3.5" HDD Screws x 10 Cable Tie x 10 Water-cooling System Washer x 8 Graphics Card Holder x 1...
- Page 6 Case Structure Power Button HDD/Power LED Indicator USB 3.0 Ports Audio Ports (Earphone and Microphone) USB 2.0 Ports Power Supply Mounting Area 3.5” Drive Bay...
- Page 7 Case Structure 2.5" Drive Bay Top Fan/ Radiator Mounting Area Rear Fan/ Radiator Mounting Area Bottom Fan Mounting Area Motherboard Mounting Area CPU Cooler Installation Cut-Out Hole PCI-E Expansion Slot Extra PCI-E Supporting Mounting Hole Fan Dust Filter Shock-Proof Stand...
-
Page 8: Power Supply Installation
Installation Guide (Please follow the related chapters to assemble) Opening the Chassis For Tempered Glass side panel, please remove by pressing the handle on top of panel. Power Supply Installation Parts Required: Hexagon Head Screw. Power supply can be mounted on the top bracket. -
Page 9: Expansion Card Installation
Installation Guide (Please follow the related chapters to assemble) Expansion Card Installation Parts Required: Hexagon Head Screws, Graphics Card Holder... - Page 10 Installation Guide (Please follow the related chapters to assemble) I/O Wires Installation POWER LED POWER SW H.D.D LED (Depend On Motherboard) HD Audio Header PORT2_2 Blue 10 9 Brown SENCE2_R SENSE_SEND Purple 8 PORT2_R Yellow 6 5 Green SENSE1_R PORT1_R White 4 3 Orange PRESENCE# PORT1_L Red 1 Black...
- Page 11 Installation Guide (Please follow the related chapters to assemble) 2.5" Drive Bays Installation Parts Required: 2.5” HDD Screws 3.5" Drive Bays Installation Parts Required: 3.5” HDD Screws...
-
Page 12: Completing Installation
Installation Guide (Please follow the related chapters to assemble) Fan / Liquid Cooling Radiator Installation Parts Required: Water-cooling System Washer Bottom Fan Installation * Please remove the rubber foot stands,and then loosen the screws on top. Completing Installation Parts Required: Cable Ties... - Page 13 CPU, etc) ♦ Warranty * For more detailed warranty information, please visit In Win retail website at www.in-win.com. * The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.
- Page 14 Copyright © 2017 In Win Development Inc. All Rights Reserved.
