- Page 1 GNC-0111 1000FX Multi-mode SC Fiber Optic PCI Express Card User Manual Ver. 1.00-0801...
-
Page 2: Table Of Contents
Table of Contents 1. Overview ........................1 2. Checklist ........................1 3. Model Description ......................1 4. Network Remote Boot Configuration...............1 5. LED Description ......................2 6. Network Parameter ....................2 7. Technical Specifications ...................2... - Page 3 Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your device, always: Touch the metal chassis of your computer to ground the static electrical charge before •...
-
Page 4: Network Remote Boot Configuration

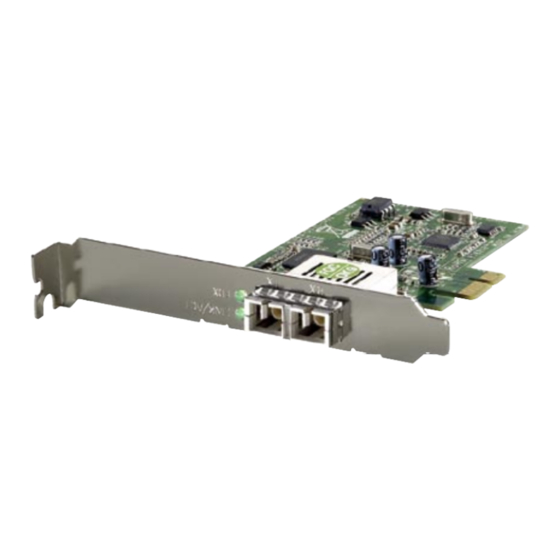

1. Overview Gigabit Ethernet PCI-e 1000SX/LX Fiber Adapter is a Gigabit Ethernet Board that fully complies with all IEEE 802.3z and 1000Base-SX/LX standards. Two LED indicators (LINK/ACT and FDX) on the bracket will help to oversee the board link, activities and full-duplex status. Gigabit Ethernet PCI-e 1000SX/LX Fiber adapters support Preboot Execution Environment (PXE), Remote Program Load (RPL), and Bootstrap Protocol (BOOTP). -
Page 5: Led Description
5. LED Description Color Function Lit when cable connection is good LINK/ACT Green and speed is at 1000Mbps. Blinks when any traffic is present. Green Lit when full-duplex mode is active. 6. Network Parameter Multi-mode Fiber Cable and Modal Bandwidth IEEE Multi-mode Multi-mode... - Page 6 Diagnostics LED on Bracket: LINK/ACT Bus Slot : PCI-e 1.1 Compliant Power Requirement : Max. 5W, +3.3VDC@1.5A Ambient Temperature : 0° to 50°C Humidity : 5% to 90% Emission : Complies with EMI Standard FCC Class B CE Mark...
