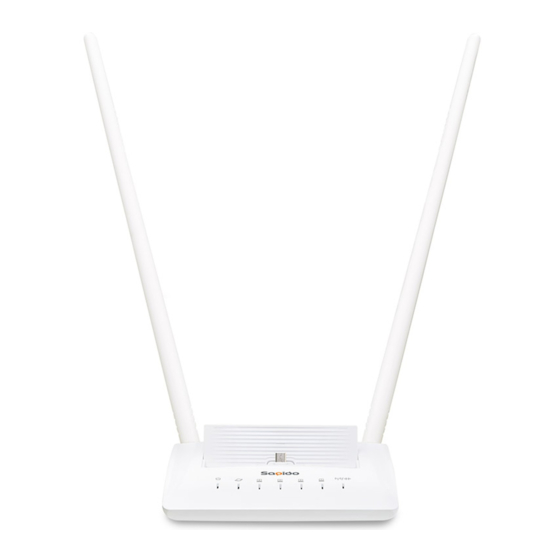

Sapido BR476n Quick Installation Manual

Hide thumbs Also See for BR476n:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
http://www.sapido.com.tw
1
Quick Installation Guide v1.0.0

Advertisement

Table of Contents
loading

Related Manuals for Sapido BR476n

Summary of Contents for Sapido BR476n

  • Page 1 Quick Installation Guide v1.0.0...

  • Page 2: Fcc Caution

    FCC Caution FCC Part 15.19 Caution: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2.

  • Page 3: Ce Statement Of Conformity

    particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
  • Page 4 Network Sharing,Plug and Play Audio Player and WiFi Router, Your Home Cloud Entertainment Center. The mail features of BR476n:  International Award Winning; MIT quality assurance: Gold medal INOVA 2012 and Silver medal CM2012 awards. MIT quality assurance standards, and uses Green AP power saving technology.

  • Page 5: Led Indicators

    LED Indicators LED Indicator Status Description ： Function Color Status Description Power indicator Green Power is being applied to this product WAN port Green 10/100Mbps Ethemet is activity connected Blinking 100Mbps Ethemet Tx/Rx 30ms activity Blinking 10Mbps Ethemet Tx/Rx 120ms activity WAN port Green...

  • Page 6: Installation Diagram

    Installation Diagram Step 1. Connect Internet connection which ISP provides to the WAN port BR476n. Step 2. Power on BR476n.

  • Page 7: Using Laptop

    3. Setting Using Laptop Set 1. Set up the router using laptop. Connect to BR476n through wireless.
  • Page 8 Set 2. Open the web browser. Sapido router will detect the Internet connection type and help users enter into the setting page automatically.
  • Page 9 Internet Connection Type 3.1.1 Sapido router will detect the Internet connection type and help users enter into the setting page automatically. 3.1.1.1 ADSL/xDSL Modem Step 1. Open the web browser. Sapido router will detect the Internet connection type and help users enter into the setting page automat- ically.
  • Page 10 3.1.1.2 Cable Modem Step 1. Open the web browser. Sapido router will detect the Internet connection type and help users enter into the setting page automat- ically. Step 2. Click Apply. Please do not power off the router or disconnect the Internet while counting down.

  • Page 11: Static Ip Address

    3.1.1.3 Static IP Address Step 1. Open the web browser. Sapido router will detect the Inter- net connection type and help users enter into the setting page automatic- ally. Step 2. Enter in the IP address, subnet mask, gateway, and DNS for Internet connection.
  • Page 12 Internet while counting down. Step 4. After the connection is successful, please download Sapido Cloud to complete the setting.

  • Page 13: Using Iphone/Ipad

    Set up the router using iPhone/iPad. Go to Settings → Wi-Fi → Enable Wi- Fi → Connect to BR476n through wireless. Step 2. Open the web browser. Sapido router will detect the Internet connection type and help users enter into the setting page automatically.
  • Page 14 Internet Connection Type 3.2.1 Sapido router will detect the Internet connection type and help users enter into the setting page automatically. 3.2.1.1 ADSL/xDSL Modem Step 1. Open the web browser. Sapido router will detect the Internet connection type and help users enter into the setting page automat- ically.

  • Page 16: Cable Modem

    3.2.1.2 Cable Modem Step 1. Open the web browser. Sapido router will detect the Internet connection type and help users enter into the setting page automatically. Step 2. Click Apply. Please do not power off the router or disconnect the Internet while counting down.
  • Page 17 Internet connection. (Please use the correct connection data that ISP provided) Step3. Click Apply. Please do not power off the router or disconnect the Internet while counting down. Step4. After the connection is successful, please download Sapido Cloud to complete the setting.

  • Page 19: Using Android Mobile Device

    Using Android Mobile Device Step1. Set up the router using Android mobile device (smartphone/tablet). Go to Settings → Wireless & Networks → Enable Wi-Fi → Wi-Fi settings → Connect to BR476n through wireless.
  • Page 20 Open the web browser. Sapido router will detect the Internet connection type and help users enter into the setting page automatically. Internet Connection Type 3.3.1 Sapido router will detect the Internet connection type and help users enter into the setting page automatically. 3.3.1.1 ADSL/xDSL Modem Step 1.
  • Page 21 3.3.1.2 Cable Modem Step 1. Open the web browser. Sapido router will detect the Internet connection type and help users enter into the setting page automat- ically. Step 2. Click Apply. Please do not power off the router or disconnect the Internet while counting down.
  • Page 22 3.3.1.3 Static IP Address Step 1. Open the web browser. Sapido router will detect the Internet connection type and help users enter into the setting page automat- ically. Step 2. Enter in the address, subnet mask, gateway, and Internet connection. (Please use the correct connection data that...
  • Page 24 Internet while counting down. Step 4. After the connection is successful, please download Sapido Cloud to complete the setting. ※ Please refer to pdapp Guide on Sapido website for pdapp settings. ※ Please refer to User Manual on Sapido website for advanced settings.
