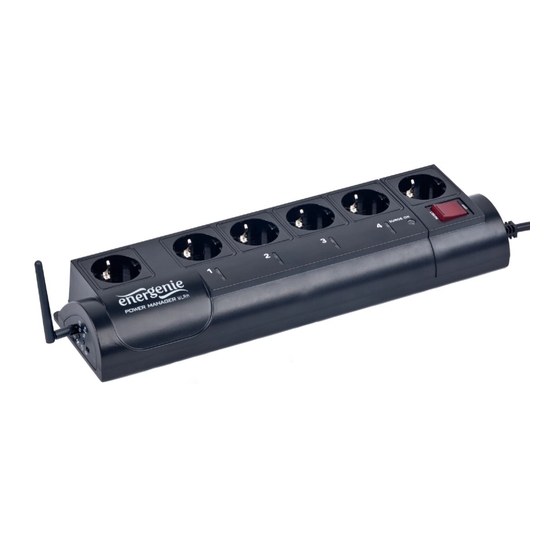

Energenie EG-PMS2-WLAN User Manual

Programmable surge protector with wlan interface
Hide thumbs

Advertisement

Quick Links

Download this manual
USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
EG-PMS2-WLAN PROGRAMMABLE SURGE
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
PROTECTOR WITH WLAN INTERFACE
КЕРІВНИЦТВО КОРИСТУВАЧА

Advertisement

loading
Need help?

Need help?

Do you have a question about the EG-PMS2-WLAN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Energenie EG-PMS2-WLAN

Summary of Contents for Energenie EG-PMS2-WLAN

  • Page 1 USER MANUAL HANDBUCH HANDLEIDING MANUEL DESCRIPTIF EG-PMS2-WLAN PROGRAMMABLE SURGE РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ PROTECTOR WITH WLAN INTERFACE КЕРІВНИЦТВО КОРИСТУВАЧА...
  • Page 2 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Programmable surge protector with WLAN interface Programmier- und steuerbare Steckdosenleiste mit WLAN-Anschluss Programmeerbare WLAN stekkerdoos met overspanningsbeveiliging Boîtier commandé à distance et programmable avec prise WLAN Программируемый фильтр питания с WiFi интерфейсом Програмований мережевий фільтр з...
  • Page 3 EG-PMS2-WLAN from WLAN and use it elsewhere. The device can be used as an advanced standby-killer. With your free personal user account at EnerGenie.com you can manage your EG-PMS2-WLAN via the Internet from all over the world, even from your smartphone. 1.1. Features ...
  • Page 4  IP-filter 64-bit password protected data encryption guarantees secure Internet access to EG-PMS2-WLAN  EG-PMS2-WLAN has a built-in battery for the timer schedule, so the timer schedule remains active even when EG-PMS2-WLAN is temporarily turned off.
  • Page 5 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR  Hardware schedule possibilities:  Maximum number of independent hardware schedule events – 45 per socket  Time setting accuracy in seconds  Combine periodical and once events  Timer accuracy: not more than 2 seconds error per day in case that power is always present.
  • Page 6 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR 1.3. Hardware requirements  Local area network with WLAN router  Any Internet-enabled computer connected to the local area network  Computer running Windows® 2000/XP/7/8 is required for using the Power Manager software (use of this software is not compulsory) 1.4.
  • Page 7 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR 2. Indicators and controls of the EG-PМS2-WLAN Figure # 1 Side panel #2 Non manageable socket Main rocker switch (Z) with Manageable socket 4 power indicator and self recovering fuse Manageable socket 3 Power indicator...
  • Page 8 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR 2.1. Side panel #1 WLAN activity Indicator Figure # 2 Power Indicator Antenna USB socket socket Reset Master Switch Button (A) Button (B) All brands and logos are registered trademarks of their respective owners...
  • Page 9 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 3 Power Power cord Main rocker switch (Z) with power indicator and self recovering On / Reset fuse (after power consumption exceeds 2500 Watts) All brands and logos are registered trademarks of their respective owners...
  • Page 10  The indicator WLAN activity (see Figure #2 above) blinks green – this means that there is some WLAN activity taking place  The indicator WLAN activity (see Figure #2 above) lights green – this means that EG-PMS2-WLAN is trying to connect to wireless router after power on. 3. Installation ...
  • Page 11  Screw the supplied antenna into the antenna socket of EG-PMS2- WLAN.  Connect EG-PMS2-WLAN to the wall socket.  EG-PMS2-WLAN can now be switched on and off by means of the Main rocker switch (Z).  Two (the first and the last) sockets of EG-PMS2-WLAN are marked with the symbol .
  • Page 12 (after 2-3 minutes) press the main rocker switch (Z) to restore the power supply (see Figure #3 above). To be able to use EG-PMS2-WLAN you will now have to complete its WLAN configuration. 3.2. Power Manager software installation For EG-PMS2-WLAN to connect to your wireless router you should configure it first.
  • Page 13 3.3. WLAN and local network configuration After software installation the WLAN Config utility will be started. Once it appears on the screen, power your EG-PMS2-WLAN on and connect it to the PC with the supplied USB cable. The device status will change to “Device is found”...
  • Page 14 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR corresponding fields in the WLAN config window, then press the “Configure” button. Figure # 4 The configuration might take some time - wait until it is completed. If you see a string “Connected to SSID:” (as shown on Figure #5 below) it means that the connection to the wireless router has been successful.
  • Page 15 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 5 If your router has a DHCP server, it will assign IP address to EG- PMS2-WLAN automatically. Alternatively, you could input them manually using the checkbox “Manual IP settings” and then entering IP settings into the corresponding fields.
  • Page 16 Important note: SSID broadcast option must be enabled in WLAN router for successful connection of EG-PMS2-WLAN. If you ever lost the IP address of EG-PMS2-WLAN on your network, you could use LAN Find utility (See Figure #6 below) to find it.
  • Page 17 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 6 All brands and logos are registered trademarks of their respective owners...
  • Page 18 4.1. Web-server login page To access the web-server of EG-PMS2-WLAN, just open Internet Explorer (or other browser) and input the IP address of EG-PMS2-WLAN (for example http://192.168.1.241). If you have used WLAN Config or Find EG-PMS2-WLAN utilities to locate EG-PMS2-WLAN then you will be taken to this webpage automatically.
  • Page 19 4.2. EnerGenie page With the help of EnerGenie page (see Figure #8 below) you will be able to see the status of all your four manageable sockets, and to switch the sockets on and off manually. The status of your sockets, as well as the buttons to switch them on/off are located at the top of the page.
  • Page 20 Otherwise, use the Registration button on the Login page to create a new account. After your successful login (regardless whether you created a new or used an existing account) your EG-PMS2-WLAN is automatically registered.  Return back to the EnerGenie page of your EG-PMS2-WLAN (see Figure #6 below).
  • Page 21 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 8 All brands and logos are registered trademarks of their respective owners...
  • Page 22 After a successful registration and activation the button Register will be renamed to Login (and will then open the Login page of EnerGenie.com) and the button Activate will turn into Deactivate. If by any reason you would eventually decide to stop managing your EG- PMS2-WLAN from Internet use then Deactivate button to stop communication of the device with EnerGenie.com server.
  • Page 23 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 9 The socket shown on the Figure #9 is currently off, it will be turned on again automatically on the 9th of July at 14:40:30 and on the same day at 14:50:45 it will be switched off. Next day it will be turned on at 14:20:00...
  • Page 24 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR and at 14:30:15 it will be switched off. Last two events will be executed each day staring from the 10 of July. Below the page you can see the current time of the web-server and eventual information about the last successful timer synchronization.
  • Page 25 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 10 Choose the date and time of the scheduled event. If you wish the events to be executed periodically then check the Loop option and set the All brands and logos are registered trademarks of their respective owners...
  • Page 26 On the Socket name settings page (see Figure #11 below) you can assign an applicable name to your sockets. These names will be shown on EnerGenie page (see section 4.2 above) as well as on the Socket pages (see section 4.3 above).
  • Page 27 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 11 All brands and logos are registered trademarks of their respective owners...
  • Page 28 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR 4.5. LAN settings page Figure # 12 All brands and logos are registered trademarks of their respective owners...
  • Page 29 DHCP server so that it always provides the same IP address to EG-PMS2-WLAN. To do that you will need to know the MAC address of EG-PMS2-WLAN. It can be found on this page or on the bottom sticker of the device.
  • Page 30 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Wireless Network Name (SSID) is the name of network, it can be set manually or via the WLAN Configuration utility. Authentication should correspond to the settings of your wireless router in AP mode. It can be set to WEP64, WEP128, WPA-TKIP, WPA2- AES.
  • Page 31 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR 4.6. Device settings page On the device settings page you can setup name, password and internal time of EG-PMS2-WLAN (see Figure #13 below). Figure # 13 All brands and logos are registered trademarks of their respective owners...
  • Page 32 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR To be able to setup the schedule of EG-PMS2-WLAN you have to first setup its internal clock correctly. Enter the current local time and date. Alternatively if the option Use NTP for timer correction is enabled (by default) then the time will be taken from NTP server.
  • Page 33 EG-PMS2-WLAN from anywhere in the world using any Internet-enabled device (desktop PC, laptop, smartphone etc). See section 4.2 above on how to register your EG-PMS2-WLAN on the server and setup the connection. All brands and logos are registered trademarks of their respective owners...
  • Page 34 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR 5.1. Logging in To login into your EnerGenie account just open the webpage www.energenie.com/user in your Internet browser and enter your login and password in the login window (see Figure #14 below). Figure # 14 Check Remember me checkbox for automatic login in the future (the website will then save a cookie on your computer).
  • Page 35 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR 5.2. Device management page After a successful login you will see the list of your registered devices and their corresponding sockets (see Figure # 15 below). Figure # 15 All brands and logos are registered trademarks of their respective owners...
  • Page 36 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR This page will automatically update itself and will keep showing you the time when your device was last seen online (the latest time when the device communicated with the server) and the status of each socket.
  • Page 37 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR 6. Power Manager software The Power Manager software is designed to support not only EG- PMS2-WLAN but also other power management family products (please visit www.energenie.com) . 6.1. Finding EG-PMS2-WLAN To be able to manage preconfigured EG-PMS2-WLANs, please, do the following: ...
  • Page 38 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 16 The LAN devices window (see Figure #17 below) will appear, click Add button there to add a new EG-PMS2-WLAN device. All brands and logos are registered trademarks of their respective owners...
  • Page 39 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 17 In the Add LAN device window (see figure #18 below) please, enter correct IP address, port number (5000 by default) and password (1 by default) as configured on the Device settings page (see section 4.6 above) of the web server.
  • Page 40 Connected status in the LAN devices window (see Figure #19 below). NOTE: Antivirus or firewall software may block connection to EG- PMS2-WLAN. Please, configure antivirus/firewall to permit connection to the IP address and port of your EG-PMS2-WLAN All brands and logos are registered trademarks of their respective owners...
  • Page 41 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 19  To edit the WLAN device, select it and click the Edit button, or just double click on the LAN device  To remove the WLAN device, select it and click the Remove button.
  • Page 42  Incorrect IP/Port/Password specified in the Add LAN device window  PC is not connected to the local network  You are trying to access EG-PMS2-WLAN from the PC which is not allowed to do so. Change PC IP address or change IP filter list in EG- PMS2-WLAN hardware settings (see section 4.5 above)
  • Page 43 SURGE PROTECTOR Figure # 20  EG-PMS2-WLAN is connected to local network (ping test is ok) but not responding. Reset EG-PMS2-WLAN by pressing the Reset button (A) on the side control panel (see Figure #2 above) or switch it off and then...
  • Page 44 6.2. Managing EG-PMS2-WLAN After successful connection, close LAN devices window. You can now start managing EG-PMS2-WLAN via the Power Manager interface. Double click on the socket icon in the system tray or select Open from the popup menu (see Figure #16 above). You will get the window of the main control panel shown on the Figure #21 below.
  • Page 45 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Sockets should switch on and off (green color means the socket is switched on; red color means the socket is switched off) when you double click on them. Click the Settings button for each socket to access the Settings dialog box (see Figure #22 below).
  • Page 46 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR You can choose a different device and another socket from the Device and Socket drop down list-boxes.  It is possible to give a name to the device and socket (for example Printer or Scanner) using the Rename button ...
  • Page 47 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR 7. Power Manager core features 7.1. Setting up the hardware schedule Using the Hardware schedule button available from the Settings window (see section 6.2 above) you can create the hardware timer schedule (see Figure #23 below). To add a new record, click the Add button.
  • Page 48 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR  The window Add entry will appear (see Figure #24 below). In the dialog box, specify the required time and the action Figure # 24  To edit the record, select it and click the Edit button or just double click on the entry (see Figure #23 above).
  • Page 49 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR specify the loop time period in the Edit loop period window (see Figure #26 below) Figure # 26  After the schedule record has been created, click the Apply button (see Figure #23 above) to save the hardware timer schedule changes. In case of incorrect entries, these will be highlighted and an error message will appear.
  • Page 50 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR NOTE: The hardware schedule keeps running even when the device is powered off. However it is recommended not to power off the device for longer than 1 week, because the built-in battery might get discharged then.
  • Page 51 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 27  To add a new task, click the Add button. The Add task window will appear (see Figure #28 below) All brands and logos are registered trademarks of their respective owners...
  • Page 52 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 28 In the Add task window, check Switch ON time and/or Switch OFF time checkboxes and specify the time to switch the socked on and/or off. If you want the same event to be performed periodically, check Perform task every checkbox and specify the time interval.
  • Page 53 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR  To edit the task, select it (see Figure #27 above) and click the Edit button or just double click on the task. The Edit task window will appear (see Figure #29 below) Figure # 29 ...
  • Page 54 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR HINT: Use the popup menu which can be activated by the right mouse button click over the table (see Figure #25 above). 7.3. Setting up application events Using the Application events window you can specify the socket events when a certain application is launched or closed down.
  • Page 55 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 30  To add a new program event, click the Add app button. The Add program event dialog will appear (see Figure #31 below) All brands and logos are registered trademarks of their respective owners...
  • Page 56 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 31 Specify the application title and path to it using the Browse (…) button or typing it manually in the Title and Path name fields. If you use the Browse (…) button you can also select a shortcut to the application. In this case the application title and path name will be taken automatically via the shortcut if possible.
  • Page 57 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR NOTE: The On run event will take place when the first window of the selected application is opened. The On exit event will take place when the last window of the application is closed. HINT: Your device is an advanced standby-killer. Using this feature you can for example switch your scanner on/off whenever Photoshop is started/closed.
  • Page 58 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Specify the path to the folder you would like to monitor using the Browse (…) button or typing it manually in the Path name field. Specify the File name mask using wildcard characters: *, ?. Check then On placing and/or On removal checkboxes and select the event and delay.
  • Page 59 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Figure # 33  To remove the event, select it and click the Remove button (see Figure # 30 above). You can select multiple events using Ctrl and Shift keys. You can also remove all events by clicking the Clear button HINT: Use the popup menu which can be activated by the right mouse button click over the table.
  • Page 60 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR 8. Managing EG-PMS2-WLAN via your own software To let you switch the sockets from your own applications the following command line interface syntax is supported:  pm.exe -[on | off] -device name -socket name Examples: ...
  • Page 61 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR  Socket#SwitchState, where # is replaced by a certain socket number - TRUE, when the socket is switched on, FALSE, when the socket is switched off  Socket#VoltageState, where # is replaced by a certain socket number - TRUE, when voltage presence on the socket is detected, FALSE, when there is no voltage on the socket;...

  • Page 62: Troubleshooting

    WLAN in Power Manager does ping the device (see section 6.1 above) not become Connected EG-PMS2-WLAN Reset EG-PMS2-WLAN by pressing the connected to local network Reset button on the side control panel (see (ping test is ok) but not Figure #2 above) or switch it off and then on again using the Main rocker switch Z (see responding.
  • Page 63 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR This product is tested and complies with the essential requirements of the laws of member states concerning R&TTE(1999/5/EC). The CE declaration can be found under www.gembird.eu Dieses Produkt wurde getestet und stimmt mit den grundlegenden...
  • Page 64 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR Waste disposal: Entsorgungshinweise: Do not deposit this equipment with the Werfen Sie dieses Gerät nicht in den household waste. Improper disposal can harm Hausmüll. Unsachgemäße Entsorgung kann both the environment and human health. For sowohl der Umwelt als auch der menschlichen...
  • Page 65 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR WARRANTY CONDITIONS GARANTIE BEDINGUNGEN The receipt must clearly list the date of purchase Das Kaufdatum und der Gerätetyp sind durch and the part number, in addition it should be eine maschinell erstellte Kaufquittung zu printed. Keep the receipt for the entire warranty belegen.
  • Page 66 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR GARANTIE VOORWAARDEN CONDITIONS DE GARANTIE Op de aankoopbon moeten de aankoopdatum en Le talon de garantie doit énumérer clairement la date d'achat et le type d'appareil. productomschrijving duidelijk vermeld staan. Conservez le reçu d'achat pendant toute la durée de la Gelieve de aankoopbon de gehele garantie car elle est nécessaire pour toute réclamation.
  • Page 67 EG-PMS2-WLAN PROGRAMMABLE WLAN SURGE PROTECTOR ГАРАНТИЙНЫЙ ТАЛОН УМОВИ ГАРАНТІЙНОГО ОБСЛУГОВУВАННЯ 1. Гарантийное обслуживание предоставляется в течение 1. Гарантійне обслуговування надається протягом терміну срока гарантии, при наличии правильно и четко заполненного гарантії, при наявності Гарантійного талону, заповненого гарантийного талона, и изделия в полной комплектации.
