Energenie EG-PMS-LAN User Manual

Programmable surge protector with lan interface
Hide thumbs

Advertisement

Quick Links

Download this manual

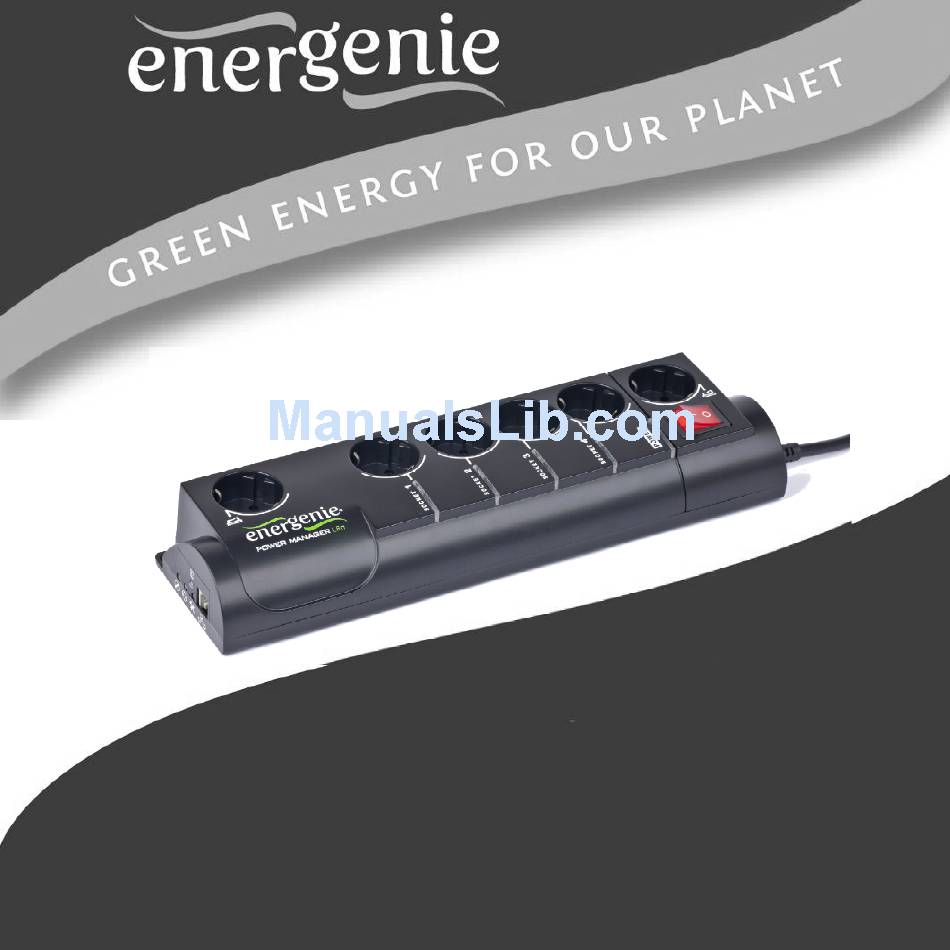

USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
EG-PMS-LAN PROGRAMMABLE SURGE
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
PROTECTOR
КЕРІВНИЦТВО КОРИСТУВАЧА

Advertisement

loading
Need help?

Need help?

Do you have a question about the EG-PMS-LAN and is the answer not in the manual?

Questions and answers

Related Manuals for Energenie EG-PMS-LAN

Summary of Contents for Energenie EG-PMS-LAN

  • Page 1 USER MANUAL HANDBUCH HANDLEIDING MANUEL DESCRIPTIF EG-PMS-LAN PROGRAMMABLE SURGE РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ PROTECTOR КЕРІВНИЦТВО КОРИСТУВАЧА...
  • Page 2 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Programmable surge protector with LAN interface Programmier- und steuerbare Steckdosenleiste mit LAN-Anschluss Programmeerbare power outlet strip met LAN interface Boîtier commandé à distance et programmable avec prise LAN Программируемый фильтр питания с интерфейсом к локальной компьютерной...
  • Page 3 LAN and use it elsewhere. The device can be used as an advanced standby-killer. With your free personal user account at EnerGenie.com you can manage your EG-PMS-LAN via the Internet from all over the world, even from your Smartphone. 1.1. Features ...
  • Page 4 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR  The unit will keep performing the programmed hardware time schedule even after EG-PMS-LAN is disconnected from the power for some time  The manageable sockets can then be switched on and off by the schedule, simple typical applications could be: “switch my...
  • Page 5 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR  Real time Voltage monitor provides information about the actual status of each manageable socket (on or off). This information can be further utilized in various ways (e.g. to check the proper execution of the switching commands)

  • Page 6: Specifications

    1.2. Specifications  Input voltage: 220 – 230 VAC, 50 – 60 Hz  Maximum load: 10 A  Maximum power consumed by EG-PMS-LAN: 2.5 W  Built in power supply and battery  Hardware schedule features:  Maximum number of independent hardware schedule events –...
  • Page 7 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR 1.3. Hardware requirements  Local area network with RJ45 sockets  Any Internet-enabled computer connected to the local area network  Computer running Windows® 2000/XP/Vista or Windows 7 is required for using the Power Manager software (use of this software is not compulsory) 1.4.
  • Page 8 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR 2. Indicators and controls of the EG-PМS-LAN Figure #1 Side panel #2 Non manageable socket Manageable socket 4 Main rocker switch (Z) Manageable socket 3 Power indicator Manageable socket 2 Indicator Manageable socket 1 Socket 4...
  • Page 9 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR 2.1. Side panel #1 Figure #2 Indicator Schedule/LAN activity Reset Button (A) Master Switch LAN socket Button (B) IP Config Button (C) All brands and logos are registered trademarks of their respective owners...
  • Page 10 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR 2.2. Side panel #2 Figure #3 Circuit breaker Power cord All brands and logos are registered trademarks of their respective owners...
  • Page 11 2.3. Indicators  Main rocker switch Z (see Figure #1 above) is lit – this means that EG-PMS-LAN is connected to the power supply and active  Power indicator (see Figure #1 above) is lit – this means that the...

  • Page 12: Installation

    (or your computer LAN card) with the provided patch cord or vice-versa.  EG-PMS-LAN can now be switched on and off by means of the Main rocker switch (Z).  Two (the first and the last) sockets of EG-PMS-LAN are marked with the symbol .
  • Page 13 NOTE: If the total power consumption (or peak power) of the devices, connected to EG-PMS-LAN exceeds 2200 Watts, the circuit breaker may power EG-PMS-LAN off. In this case, please, remove All brands and logos are registered trademarks of their respective owners...
  • Page 14 Circuit breaker button to restore the power supply (see Figure #3 above). To be able to use EG-PMS-LAN you will now have to complete its LAN configuration. 3.2. Preparing LAN configuration of EG-PMS-LAN Before configuring EG-PMS-LAN hardware settings, please, let it obtain its IP address.
  • Page 15 Power Manager client port: 5000 ... EG-PMS-LAN then searches for an IP address from your eventual DHCP server. If no DHCP server is found within 1 minute, EG-PMS-LAN will then automatically revert to the default settings (see above, with IP: 192.168.0.254).
  • Page 16 Start/All Programs/Gembird/Power Manager. The IP range where you would like to search for EG-PMS-LAN will be set automatically according to the IP settings of your LAN adapter but can be changed manually in the Adapter subnet fields.
  • Page 17 LAN adapter is not in the (default) subnet of EG-PMS-LAN (as might probably be the case if you chose option B section 3.2) you will have to change its IP address manually to be able to find EG-PMS-LAN. For example if you wish to find EG-PMS-LAN (with the default IP 192.168.0.254), the IP address of your computer should be set as...
  • Page 18 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #4 The window of your default internet browser will be then opened to give you access to the built-in web-server. See section 4 below for the further details. All brands and logos are registered trademarks of their respective owners...
  • Page 19 4.1. Web-server login page To access the web server of EG-PMS-LAN, just open Internet Explorer (or other browser) and input the IP address of EG-PMS-LAN (for example http://192.168.1.241). If you have used Find EG-PMS-LAN utility to locate EG-PMS-LAN then you will be taken to this webpage automatically.
  • Page 20 4.2. EnerGenie page With the help of EnerGenie page (see Figure #6 below) you will be able to see the status of all your four manageable sockets, and to switch the sockets on and off manually. The status of your sockets, as well as the buttons to switch them on/off are located at the top of the page.
  • Page 21 To register the device, simply push the button Register on this page (see Figure #6 below). You will then be redirected to Login page of EnerGenie.com. If you already own an account at EnerGenie.com then just enter your login and password on this page and you are done.
  • Page 22 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure # 6 All brands and logos are registered trademarks of their respective owners...
  • Page 23 LAN via EnerGenie.com website. 4.3. Socket page There are 4 manageable sockets on EG-PMS-LAN and so there are 4 pages corresponding to them. On each status page you can see the socket status (on or off) and you have the Switch On (Switch Off) button.
  • Page 24 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #7 The socket shown on the Figure #7 is currently on, it will be turned on again automatically on the 9th of July at 14:40:30 and on the same day at 14:50:45 it will be switched off. Next day it will be turned on at 14:20:00 and at 14:30:15 it will be switched off.
  • Page 25 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Below the page you can see the current time of the web-server and eventual information about the last successful timer synchronization. Automatic timer synchronization is used if Use NTP for timer correction option is enabled (see section 4.6 below).
  • Page 26 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #8 Choose the date and time of the scheduled event. If you wish the event to be executed periodically then choose Periodic option and set the loop period. To commit to your changes press the Apply button. To delete the entry press the x button.
  • Page 27 On the Socket name settings page (see Figure #9 below) you can assign an applicable name to your sockets. These names will be shown on EnerGenie page (see section 4.2 above) as well as on the Socket pages (see section 4.3 above).
  • Page 28 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #9 All brands and logos are registered trademarks of their respective owners...
  • Page 29 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR 4.5. LAN settings page Figure #10 All brands and logos are registered trademarks of their respective owners...
  • Page 30 EG-PMS-LAN. To do that you will need to know the MAC address of EG-PMS-LAN. It can be found on this page or on the bottom sticker of the device. The MAC address is fixed and cannot be changed.
  • Page 31 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR 4.6. Device settings page On the device settings page you can setup name, password and internal time of EG-PMS-LAN (see Figure #11 below). Figure #11 All brands and logos are registered trademarks of their respective owners...
  • Page 32 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR To be able to setup the schedule of EG-PMS-LAN you have to first setup its internal clock correctly. Enter the current local time and date. Alternatively if the option Use NTP for timer correction is enabled (by default) then the time will be taken from NTP server.
  • Page 33 Don’t forget to push the Apply button to save your settings. 4.7. Web-server logout Having finished working with EG-PMS-LAN, choose Log Out in the main menu. If you don’t do this, you will be logged automatically after 10 minutes of inactivity. While you are logged to the web server, it can’t be accessed from any other computer.
  • Page 34 EG-PMS-LAN from anywhere in the world using any Internet-enabled device (desktop PC, laptop, smartphone etc). See section 4.2 above on how to register your EG-PMS-LAN on the server and setup the connection. 5.1. Logging in To login into your EnerGenie account just open the webpage www.energenie.com/user in your Internet browser and enter your login and...
  • Page 35 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Check Remember me checkbox for automatic login in the future (the website will then save a cookie on your computer). If you lost your password, click Forgot password button. 5.2. Device management page After a successful login you will see the list of your registered devices and their corresponding sockets (see Figure # 13 below).
  • Page 36 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR This page will automatically update itself and will keep showing you the time when your device was last seen online (the latest time when the device communicated with the server) and the status of each socket.
  • Page 37 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR 6. Power Manager software The Power Manager software is designed to support not only EG- PMS-LAN but also other power management family products (please visit www.energenie.com) . 6.1. Finding EG-PMS-LAN To be able to manage preconfigured EG-PMS-LANs, please, do the following: ...
  • Page 38 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #14 The LAN devices window (see Figure #15 below) will appear, click Add button there to add a new EG-PMS-LAN device. All brands and logos are registered trademarks of their respective owners...
  • Page 39 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #15 In the Add LAN device window (see figure #16 below) please, enter correct IP address, port number (5000 by default) and password (1 by default) as configured on the Device settings page (see section 4.6 above) of the web server.
  • Page 40 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #16 Specified device should then appear with a green square next to it and Connected status in the LAN devices window (see Figure #17 below). All brands and logos are registered trademarks of their respective owners...
  • Page 41 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #17  To edit the LAN device, select it and click the Edit button, or just double click on the LAN device  To remove the LAN device, select it and click the Remove button.
  • Page 42 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR If the status of EG-PMS-LAN shows the device not to be Connected - it could be due to the following reasons:  Incorrect IP/Port/Password specified in the Add LAN device window  PC is not connected to the local network ...
  • Page 43 SURGE PROTECTOR Figure #18  EG-PMS-LAN is connected to local network (ping test is ok) but not responding. Reset EG-PMS-LAN by pressing the Reset button (A) on the side control panel (see Figure #2 above) or switch it off and...
  • Page 44 6.2. Managing EG-PMS-LAN After successful connection, close LAN devices window. You can now start managing EG-PMS-LAN via the Power Manager interface. Double click on the socket icon in the system tray or select Open from the popup menu (see Figure #14 above). You will get the window of the main control panel shown on the Figure #19 below.
  • Page 45 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Sockets should switch on and off (green color means the socket is switched on; red color means the socket is switched off) when you double click on them. Click the Settings button for each socket to access the Settings dialog box (see Figure #20 below).
  • Page 46 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR  It is possible to give a name to the device and socket (for example Printer or Scanner) using the Rename button  Check the System tray checkbox if you want to put the icon of the socket into the system tray.
  • Page 47 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR 7. Power Manager core features 7.1. Setting up the hardware schedule Using the Hardware schedule button available from the Settings window (see section 6.2 above) you can create the hardware timer schedule (see Figure #21 below). To add a new record, click the Add button.
  • Page 48 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR  The window Add entry will appear (see Figure #22 below). In the dialog box, specify the required time and the action Figure #22  To edit the record, select it and click the Edit button or just double click on the entry (see Figure #21 above).
  • Page 49 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR  To remove the record, select it and click the Remove button (see Figure #21 above). You can select multiple entries using Ctrl and Shift keys. You can also remove all entries from the schedule by clicking the Clear button (see Figure #21 above) ...
  • Page 50 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #24  After the schedule record has been created, click the Apply button (see Figure #21 above) to save the hardware timer schedule changes. In case of incorrect entries, these will be highlighted and an error message will appear.
  • Page 51 If the hardware schedule has been set as set in the Power Manager software, it executes and is displayed according to computer’s clock, not EG-PMS-LAN’s clock. To avoid this mismatch, before setting the schedule in software, make sure, that time on computer matches the time on EG-PMS-LAN.
  • Page 52 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR 7.2. Setting up software schedule Using the Software schedule button available from the Settings window (see section 6.2 above) you can create the software timer schedule (see Figure #25 below). NOTE: the software timer schedule will only be executed if the managing computer is on and the Power Manager is launched.
  • Page 53 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR  To add a new task, click the Add button. The Add task window will appear (see Figure #26 below) Figure #26 In the Add task window, check Switch ON time and/or Switch OFF time checkboxes and specify the time to switch the socked on and/or off.
  • Page 54 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR uncheck the Enabled checkbox and to enable the task again, re-check the checkbox.  To edit the task, select it (see Figure #25 above) and click the Edit button or just double click on the task. The Edit task window will...
  • Page 55 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR  To remove the task select it and click the Remove button (see Figure #25 above). You may select multiple tasks using Ctrl and Shift keys. You can also remove all tasks by clicking the Clear...
  • Page 56 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #28  To add a new program event, click the Add app button. The Add program event dialog will appear (see Figure #29 below) All brands and logos are registered trademarks of their respective owners...
  • Page 57 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #29 Specify the application title and path to it using the Browse (…) button or typing it manually in the Title and Path name fields. If you use the Browse (…) button you can also select a shortcut to the application.
  • Page 58 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR NOTE: The On run event will take place when the first window of the selected application is opened. The On exit event will take place when the last window of the application is closed. HINT: Your device is an advanced standby-killer. Using this feature you can for example switch your scanner on/off whenever Photoshop is started/closed.
  • Page 59 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Specify the path to the folder you would like to monitor using the Browse (…) button or typing it manually in the Path name field. Specify the File name mask using wildcard characters: *, ?. Check then On placing and/or On removal checkboxes and select the event and delay.
  • Page 60 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #31  To remove the event, select it and click the Remove button (see Figure #28 above). You can select multiple events using Ctrl and Shift keys. You can also remove all events by clicking the Clear...
  • Page 61 8. Power Manager advanced features The following information is for advanced users which wish to have full access to the advanced features of EG-PMS-LAN. Click the Advanced features button available from the Settings window (see section 6.2 above). The following window will then appear (see Figure #32 below).

  • Page 62: Processing The Alarms

    EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR 8.1. Processing the alarms Whenever the actual measured voltage on the manageable socket deviates from the status set by your switching tasks, it is called a Voltage alarm. The Voltage alarm can for example be caused by a blackout and will be resolved after power returns.
  • Page 63 8.2. Setting up network devices You don’t need to let every user in your local network have direct access to EG-PMS-LAN via IP address. Instead you can declare EG- PMS-LAN as a shared device on your server and let the other users access it via the server.
  • Page 64 NOTE: The port 6100 should be open. Contact your LAN administrator for further details. To be able to use this shared EG-PMS-LAN on a client PC choose Shared devices from the Main menu (see Figure #14 above). You will get the following window (see Figure #35 below).
  • Page 65 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #35 To add a new remote device, press the Add button. You will see the window Add network device (see Figure #36 below). All brands and logos are registered trademarks of their respective owners...
  • Page 66 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Figure #36 Enter the network name of the server which is connected to EG- PMS-LAN in the field Hostname. Enter the name of the target EG-PMS- LAN in the field Device name. Enter access password in the field Password.
  • Page 67 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR device will appear. Choose the proper server and then the device and click OK button. To edit the network device, select it and click the Edit button, or just double click on the network device (see Figure #35 above). The Edit network device window will appear (see Figure #37 below).
  • Page 68 HINT: Use the popup menu which is available with the right mouse button click over the table. 8.3. Managing EG-PMS-LAN via your own software To let you switch the sockets from your own applications the following command line interface syntax is supported: ...
  • Page 69 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR For each of the connected devices the following information will then be provided and placed into Info.ini file in the Power Manager folder:  DeviceName - the user specified device name  Socket#name, where # is replaced by a certain socket number - the user specified socket name ...

  • Page 70: Troubleshooting

    (see Figure #2 above) or switch it off and but not responding. then on again using the Main rocker switch Z (see Figure #1 above). Make sure EG-PMS-LAN is connected to Connection to EG-PMS-LAN is LAN and switched on. Launch Find EG- lost. It seems something is PMS-LAN utility.
  • Page 71 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR All brands and logos are registered trademarks of their respective owners...
  • Page 72 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR Waste disposal: Entsorgungshinweise: Do not deposit this equipment with the Werfen Sie dieses Gerät nicht in den household waste. Improper disposal can harm Hausmüll. Unsachgemäße Entsorgung kann both the environment and human health. For sowohl der Umwelt als auch der menschlichen...
  • Page 73 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR WARRANTY CONDITIONS GARANTIE BEDINGUNGEN The warranty period is 36 months and begins with the sale to the end user. The receipt must clearly list Die Garantie beträgt 36 Monate ab Verkaufsdatum the date of purchase and the part number, in addition an den Endverbraucher.
  • Page 74 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR GARANTIE VOORWAARDEN CONDITIONS DE GARANTIE De garantietermijn bedraagt 36 maanden en gaat in Garantie est de 36 mois a partir de la date d’achat de l'utilisateur final. Le talon de garantie doit énumérer op de aankoopdatum van het product door de clairement la date d'achat et le type d'appareil.
  • Page 75 EG-PMS-LAN PROGRAMMABLE LAN SURGE PROTECTOR ГАРАНТИЙНЫЙ ТАЛОН УМОВИ ГАРАНТІЙНОГО ОБСЛУГОВУВАННЯ 1. Гарантийное обслуживание предоставляется в течение 1. Гарантійне обслуговування надається протягом терміну срока гарантии, при наличии правильно и четко заполненного гарантії, при наявності Гарантійного талону, заповненого гарантийного талона, и изделия в полной комплектации.
