Summary of Contents for Energenie SIS-PWM Silver Shield

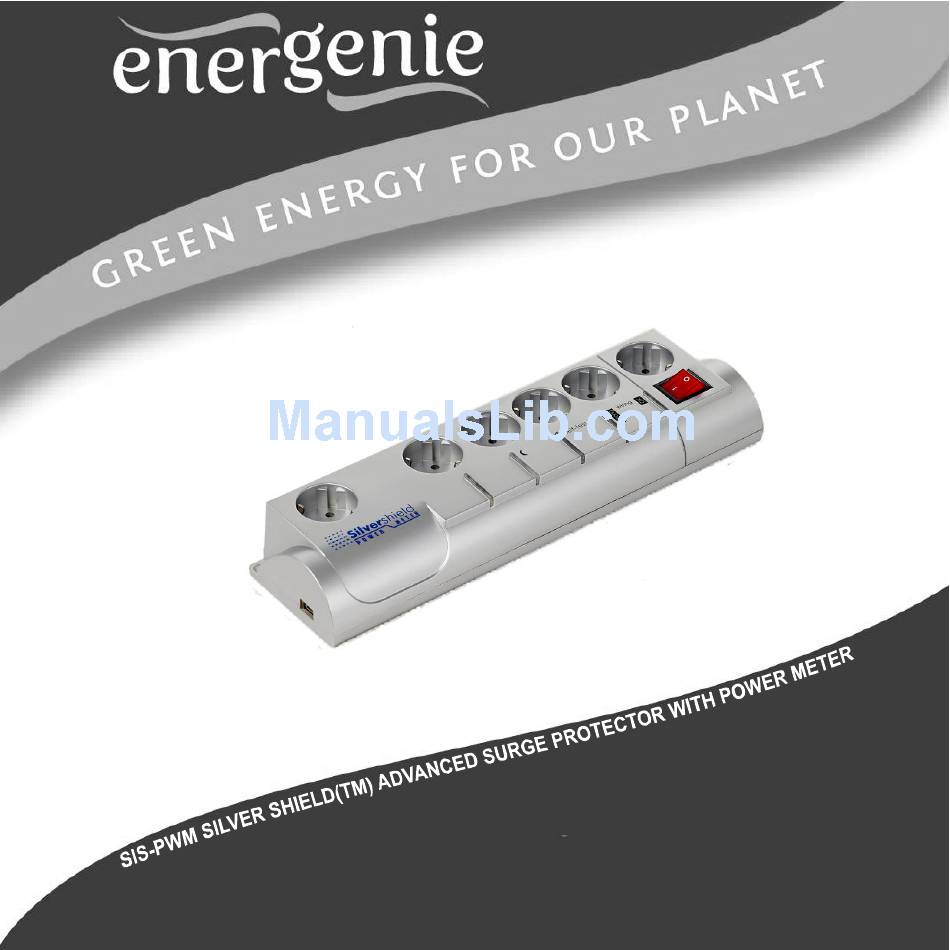

- Page 1 USER MANUAL HANDBUCH HANDLEIDING MANUEL DESCRIPTIF РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ КЕРІВНИЦТВО КОРИСТУВАЧА...
- Page 2 SIS-PWM Silver Shield(TM) advanced surge protector with power meter Silver Shield(TM) advanced surge protector with power meter Silver Shield (TM) Advanced Surge Protector mit Leistungsmesser Silver Shield(TM) geavanceerde surge protector met stroom meter Silver Shield (TM) de pointe de surtension avec mesureur de puissance Silver Shield (TM) Сетевой...
-
Page 3: Specifications
SIS-PWM Silver Shield(TM) advanced surge protector with power meter Features • USB interface power meter provides readings of voltage, current, power and energy consumption • Supplied with the software calculating the energy costs • Power meter function does not require permanent connection to the computer •... - Page 4 SIS-PWM Silver Shield(TM) advanced surge protector with power meter • Computer measurements: voltage and current measuring (RMS, peak values), power measuring (true, apparent, reactive), real and full energy consumed during a time period (kWH) • Measurements range: up to 250 VAC, 10 A (RMS), 2500 W, 22.000 kW a year •...
- Page 5 SIS-PWM Silver Shield(TM) advanced surge protector with power meter 2. Indicators and controls of the SIS-PWМ Main rocker switch Measured sockets Indicator “Power” Indicator “Wiring OK” Non measured socket Indicator “Wiring Wrong” Indicator “Self-test” Indicator “Day/Night Mode” USB socket All brands and logos are registered trademarks of their respective owners...
-
Page 6: Right Side Panel
SIS-PWM Silver Shield(TM) advanced surge protector with power meter 2.1 Right side panel Circuit breaker Power cord All brands and logos are registered trademarks of their respective owners... - Page 7 SIS-PWM Silver Shield(TM) advanced surge protector with power meter 4. Hardware requirements • Windows XP/2003/Vista/Windows 7 • USB port 5. Package contents • SIS-PWM • User manual • USB cable • CD with SIS-PWM Power Meter software for Windows 6. Installation of SIS-PWM To use SIS-PWM please follow next steps: 1.
- Page 8 SIS-PWM Silver Shield(TM) advanced surge protector with power meter • It is possible to connect the SIS-PWM to the power source via other multi-plugs, surge protectors, voltage regulators or UPS. 7. Software installation a. Insert CD with the software into the PC CD-ROM drive.
- Page 9 SIS-PWM Silver Shield(TM) advanced surge protector with power meter 9. Operating the SIS-PWM SIS-PWM has 2 modes of working: on-line mode, when it is connected to Power Meter software, and off-line mode, when it is disconnected from computer or Power Meter software is not run. In...
- Page 10 SIS-PWM Silver Shield(TM) advanced surge protector with power meter voltage limits. It warns about dangerous conditions of power mains, which may cause damage to some equipment. Indicator ‘L” (means Load) lights or blinks, if the equipment has inductive or capacitive type of the load.
- Page 11 SIS-PWM Silver Shield(TM) advanced surge protector with power meter Figure 2 – Main display window The energy rate settings are set in a window, which is popped up upon pressing “Set” button near the “Cost” indicator. Choose cost rate (per kWh), currency type and press “OK” for applying the changes. If rate differs in day and night, check “Use Day/Night modes”...
- Page 12 SIS-PWM Silver Shield(TM) advanced surge protector with power meter For setting voltage warning limits – press “Set” button nearby and input it in newly opened window. Figure 3 – Energy rate settings window While running Power Meter software logs measured power consumption to MS Access database file log.mdb located in the...
- Page 13 SIS-PWM Silver Shield(TM) advanced surge protector with power meter periods of time when software was quit are shown as grayed out areas in the chart. By clicking “Export” button one can export data from database file to MS Excel file. Use “Clear & Close” button to purge logged data.
- Page 14 SIS-PWM Silver Shield(TM) advanced surge protector with power meter 11. Indicators • Indicator “Self-test” is on – hardware self test was passed successfully • Indicator “Day/Night mode” is on – means a day time, if day/night mode is enabled or if this mode is disabled •...
-
Page 15: Troubleshooting
SIS-PWM Silver Shield(TM) advanced surge protector with power meter 12. Troubleshooting Problem Solution The load connected to the unit is too high, some of the devices connected The circuit breaker is activated. SIS-PWM should (Tripped) disconnected and the circuit breaker should be reset. - Page 16 SIS-PWM Silver Shield(TM) advanced surge protector with power meter All brands and logos are registered trademarks of their respective owners...
- Page 17 SIS-PWM Silver Shield(TM) advanced surge protector with power meter All brands and logos are registered trademarks of their respective owners...
-
Page 18: Warranty Conditions
SIS-PWM Silver Shield(TM) advanced surge protector with power meter WARRANTY CONDITIONS GARANTIE BEDINGUNGEN The warranty period is 36 months and begins with the sale to the end user. The receipt must clearly list Die Garantie beträgt 36 Monate ab Verkaufsdatum the date of purchase and the part number, in addition an den Endverbraucher. -
Page 19: Conditions De Garantie
SIS-PWM Silver Shield(TM) advanced surge protector with power meter GARANTIE VOORWAARDEN CONDITIONS DE GARANTIE De garantietermijn bedraagt 36 maanden en gaat in Garantie est de 36 mois a partir de la date d’achat de l'utilisateur final. op de aankoopdatum van het product door de Le talon de garantie doit énumérer clairement la date... - Page 20 SIS-PWM Silver Shield(TM) advanced surge protector with power meter ГАРАНТИЙНЫЙ ТАЛОН УМОВИ ГАРАНТІЙНОГО ОБСЛУГОВУВАННЯ 1. Гарантийное обслуживание предоставляется в течение 1. Гарантійне обслуговування надається протягом терміну срока гарантии, при наличии правильно и четко заполненного гарантії, при наявності Гарантійного талону, заповненого...
