Summary of Contents for Maximum C 901 CX

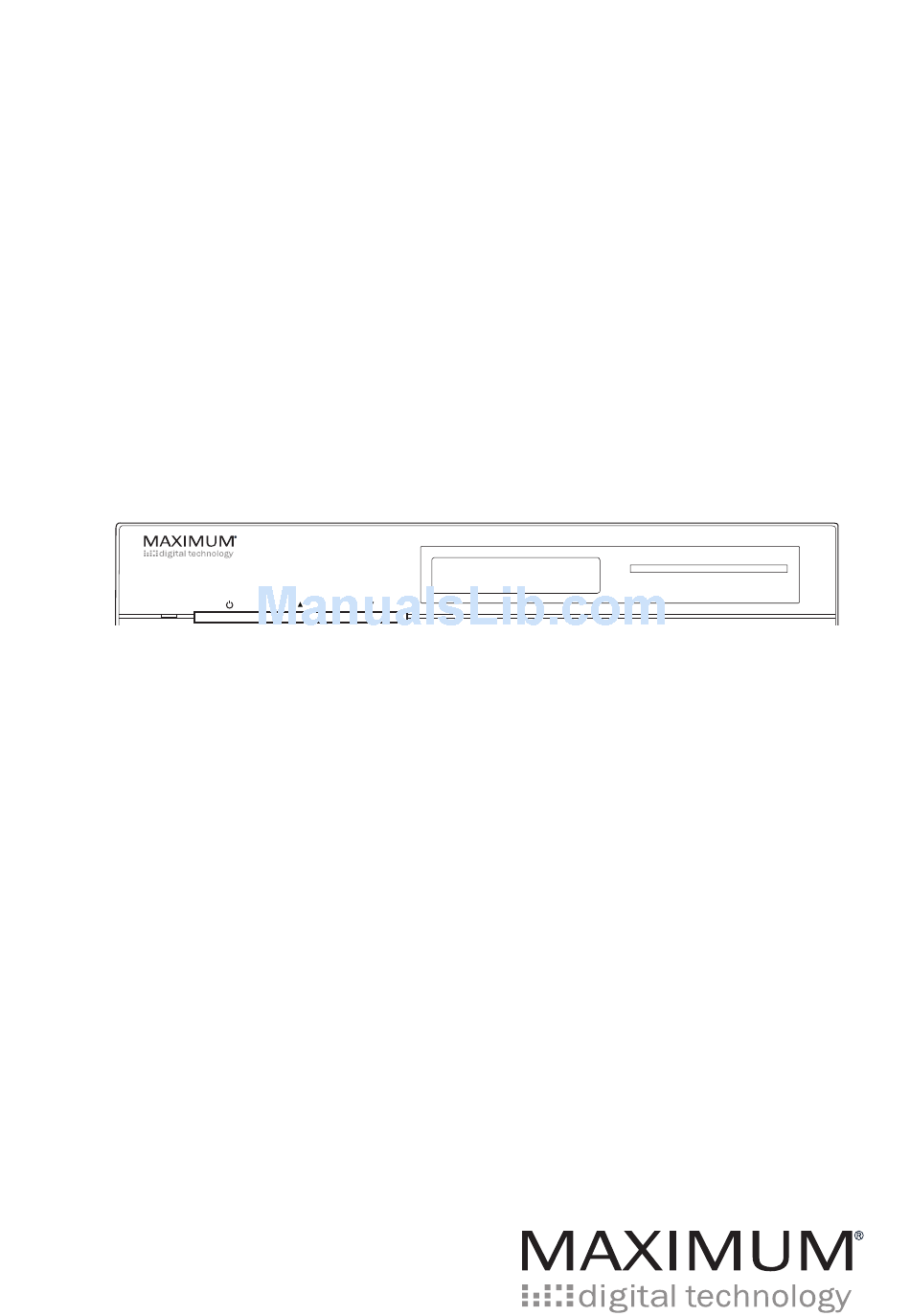

- Page 1 USER MANUAL ENGLISH C 901 CX POWER Cable receiver Maximum C 901 CX Maximum C 901 CX...
-
Page 2: Table Of Contents
12. Access control....................page 12 13. The type-in box.................... p age 12 14. Searching for new channels................page 13 15. Advanced channel search................page 14 16. Installation..................... page 14 17. Teletext......................page 15 18. Radio channels....................page 15 Maximum C 901 CX... -
Page 3: Remote Control Functions
Program down or down in menu navigation. Change between the favourite lists. NOTE! Please be aware that the coloured keys have different functions according to, where you are in the menus. Their function will be show on the screen. Maximum C 901 CX... -
Page 4: Operating The Receiver From The Buttons On The Front
1 = Turn the receiver on or put the receiver into the Stand-by mode 2 = Next channel 3 = Previous channel 4 = Display C 901 CX POWER Card reader 5 = The top slot is for the conax Smart card. The card has to be inserted with the yellow IC chip downwards and towards the rear of the receiver. Maximum C 901 CX... -
Page 5: Installation
The mains power cable must not be pulled on. To remove the power, please hold the plug and do not pull on the cable. Pulling on the cable can damage it. Lightning, damage from fluids, connection of any equipment not specified in this manual, use of exces- sive force, installation of any software not officially released (patch or copy software) is not covered under the terms of the guarantee. Maximum C 901 CX... -
Page 6: Connection Of The Receiver
1. Connect the receiver to the mains. 2. Turn you television on. 3. The installations guide will now be shown on the screen. Choice of language: Choose the language you wish to use for the menus, with PR- PR-and PR+. When you have chosen the language you wish to use, press OK. TV Format These options allow you to choose, which type of equipment is connected to the receiver. 1. TV Format. This option allows you to choose, which type of TV you have. A 4:3 or a Via TV (Widescreen). Highlight the menu option and press OK. You can now change the option by pressing PR- PR-and . Maximum C 901 CX... - Page 7 2. TV Scart This option will define which type of Picture information you wish to use. CVBS or RGB. CVBS has limited picture information and works on all types of television. Where as RGB has more picture information. We recommend the use of RGB if possible, some types of TV cannot work with RGB, so make sure you choose the correct setting. When you have made the appropriate adjustments to the settings, press GREEN to search for channels. Search: The receiver will now start to search for channels. Depending on the number of channels, this can take up to 10 minutes. Maximum C 901 CX...
-
Page 8: Channel Lists
PR-and PR+ and confirm the choice by pressing OK. Press FAV until you have the list with every channel in it. By using the number buttons 1 – 4 you can add a channel to one of the four favourite lists. First highlight a channel you would like in the list with PR- PR-and PR+. After this, press 1 if you want the channel in the first favourite list, 2 if it should be in the second favourite list, and the same with 3 and 4. The same channel can appear in every list if necessary. The order you choose them will also be the order they are displayed when you are finished. So if you choose Channel 1 to be in the list first, channel three, then channel two, the list will be in the order Channel 1- Channel 3- Channel 2. If you want to delete a channel from a favourite list, you press one of the number buttons 1-4, depending on which list (1-4) you want to delete a channel from. Maximum C 901 CX... -
Page 9: Moving And Editing Of Channel Lists
The channel will now be placed where you highlighted. Edit channel name and channel data: To change a channel name and channel data, highlight the channel you wish to change, and press OK. Name = The channel name. NB! This name will come back if you search for new channels. Frequency = The frequency the channel sends on, this should not be changed. Adult lock = Cross this box if you would like the channel to be locked by a code. Service ID, VID/PCR/AUD = These are only used on special channels. This requires the user to type these in. Quality = The quality of the signal that the receiver receives. This should be as high as possible. If you change any of these, press GREEN to save the changes. To cancel the changes press RED. Maximum C 901 CX... -
Page 10: Daily Use
Choose a different soundtrack: Some channels are transmitted with a number of different soundtracks. Press RED to change the soundtrack. Subtitles: A number of channels have different subtitles available. Press YELLOW and you will see a list of the subtitles available. If you do not want any subtitles, highlight No subtitles, there will be no more subtitles while you are on the same channel. The receiver will always choose the subtitles that match your choice of language. Maximum C 901 CX... -
Page 11: Epg - Electronic Program Guide
YELLOW. The following information has to be put into the timer: List = The list you know the channel with the program you would like to record is in. Channel = The channel you would like to record on. Text = A name to help you remember which timer is which. Start = When the program starts. Press GREEN to save the timer, or RED to cancel the timer. Remember to also program the Video Recorder or DVD recorder. Maximum C 901 CX... -
Page 12: Access Control
When the cursor is on the right letter, press OK. With GREEN and RED you can move the cursor backwards and forwards in the text you have written. This can be helpful if there is an error in the text. YELLOW changes between capital and small letters. BLUE deletes the last letter. When you have written your text, place the cursor on OK and press OK. Maximum C 901 CX... -
Page 13: Searching For New Channels
OK. Highlight “Channel Search” and press OK again. You will have the following possibilities: GREEN = Automatic, the receiver will search through the frequen- cies it knows and fi nd new channels. YELLOW = Manual you have to provide a frequency that you would like to search on. We recommend you always to search automatically, as this is the easiest and will find the most usual channels. Maximum C 901 CX... -
Page 14: Advanced Channel Search
Highlight Installation and press OK. Language: You can choose which language you would like the Menu, sound and subtitles to be in. Clock: The receiver will automatically install all settings. Changes should only be made, if you are situated in a country that has a different language to the one you use in the menu. TV Format: This is how the picture is presented on your TV. You should only choose CVBS if you have problems with RGB. Reset Receiver: This will reset the receiver to the factory settings. This takes the receiver back to the first time you turned the receiver on. NB! If you use this function, all channels and setting will be reset. Information: This shows information on the receiver, e.g. which version of software is installed. This infor- mation is necessary for customer support if you have a problem. Maximum C 901 CX... -
Page 15: Teletext
Your receiver will during the channel search have found a number of radio channels. To hear these radio channels, press TV/RADIO. You can now make a favourite list in the radio list or just hear the music you like. The receiver works the same on radio channels, as it does on TV channels. Maximum C 901 CX... - Page 16 © Kjaerulff1 A/S 2005 Maximum C 901 CX...
