Problem: The monitor hisses, hums or makes other loud noises...
Here are some suggestions that will help you eliminate these undesirables from your
system:
• Make sure that the power cord is plugged snugly into the IEC socket on the rear
of the monitor.
• Check the connections between the signal source and the monitor. The Neutrik®
Combo connector is a completely balanced system. If you're connecting an
unbalanced output to the monitor, be sure that you're using PIN 2 for signal
and have PIN 1 and PIN 3 tied together at the source end.
• Refer to the Connecting the System section on page 4 of this manual to ensure
that the AC mains is matched to the operating voltage requirements.
• All audio equipment should use the same ground point. Check all other devices
using the same AC output in the building like dimmers, neon signs, TV screens,
and computer monitors. These devices should not be using the same circuit. .
For updated Troubleshooting information please visit our Web Site www.krksys.com
Please read the warranty card that was included in the shipping carton of your moni-
tor prior to shipping it back to KRK Systems, LLC. All products in need of repair can
be returned to the dealer where it was purchased or to KRK Systems, LLC.
Before shipping your unit back to KRK for service you must acquire an "RMA" from
KRK. Your unit will not be received by the company, nor will any work be done on
your unit without this very important number. Please call KRK at 805-584-5277
Shipping Instructions
• For the safest possible return to KRK, please use the shipping carton and
packaging that your V Series 2 was originally shipped in.
• KRK cannot be responsible for any damages incurred during the shipping
process due to poor packing. Make sure to insure your shipment.
• If your monitor is out of warranty and you would like a quotation prior to servicing
your product, please call for an "RMA" number. No service will be performed on
your unit without this number.
• Replacement carton and packaging can be purchased from KRK Systems, LLC.
for $26.50 each.
• For replacement part quotes call (805) 584-5277.
17
Page 10

Specifications

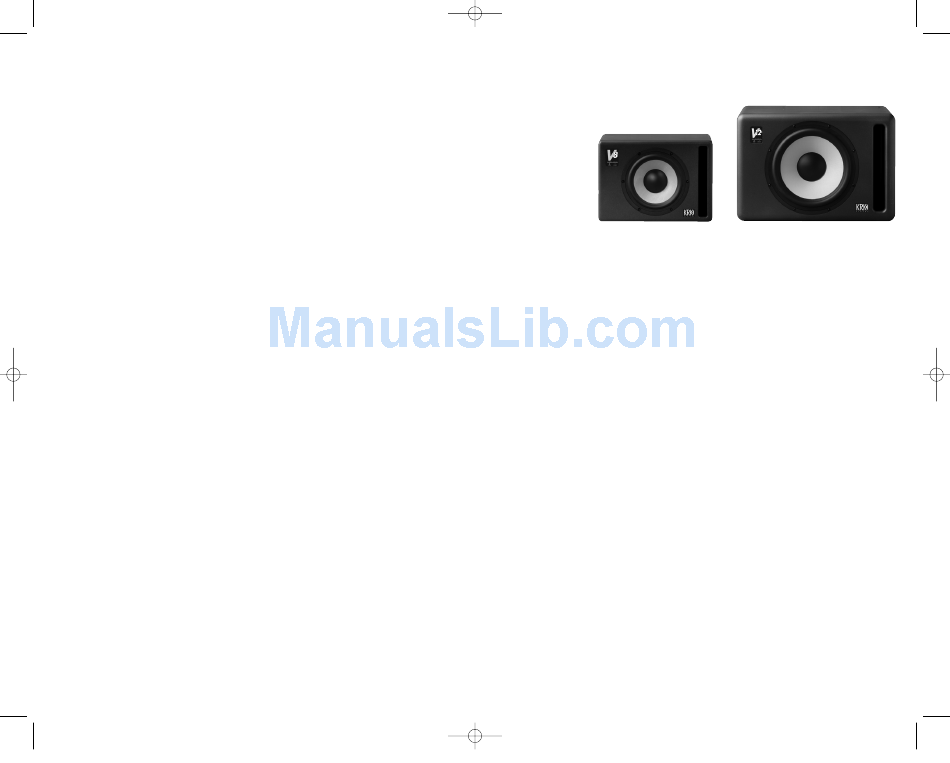

THE V-SERIES II POWERED Subwoofer
Model KRK V8S
Drivers LF, 8-inch woven Kevlar®
Input Type 2 Channels XLR, 10 Ohm Balanced,
Pin-1 Ground, Pin-2 High, Pin-3 Low
Output Type 2 Channels XLR – 600-Ohm Balanced
Pin-1 Ground, Pin-2 High, Pin-3 Low
Controls System Gain - +6 dB to -30 dB
Variable, Low-Pass Variable Filter, 70
Hz – 130 Hz
Phase Adjust Switch 0° or 180°
High-Pass Filter: 80-Hz 24dB/oct fixed
on XLR Outputs
Amplification: 150 Watts
Frequency Responce 40-70 Hz to 130 Hz Variable
Sensitivity (1W@1M)
Max SPL (each) 106 dB Music; 109 dB Peak
Dimensions(HxWxD) 10-1/2" H x 14- 3/4" W x 12-5/8" D
26.7 cm H x 37.5 cm W x 32.1 cm D
Shipping Weight (ea.) 34 lbs. (16 kg) each
KRK V12 S
LF, 12-inch woven Kevlar®
2 Channels XLR, 10 Ohm Balanced,
Pin-1 Ground, Pin-2 High, Pin-3 Low
2 Channels XLR – 600-Ohm Balanced
Pin-1 Ground, Pin-2 High, Pin-3 Low
System Gain +6 dB to -30 dB Variable
∑ Low-Pass Variable Filter, 50 Hz –
130 Hz
0° or 180°
High-Pass Filter: 80-Hz 24dB/oct fixed
on XLR Outputs
Amplification: 200 Watts
29-50 Hz to 130 Hz Variable
114 dB Music; 117 dB Peak
15" H x 22" W x 20" D
38.1 cm H x 55.9 cm W x 50.8 cm D
72 lbs. (33 kg) each
18
