Summary of Contents for Rose electronics VSP-2DVI

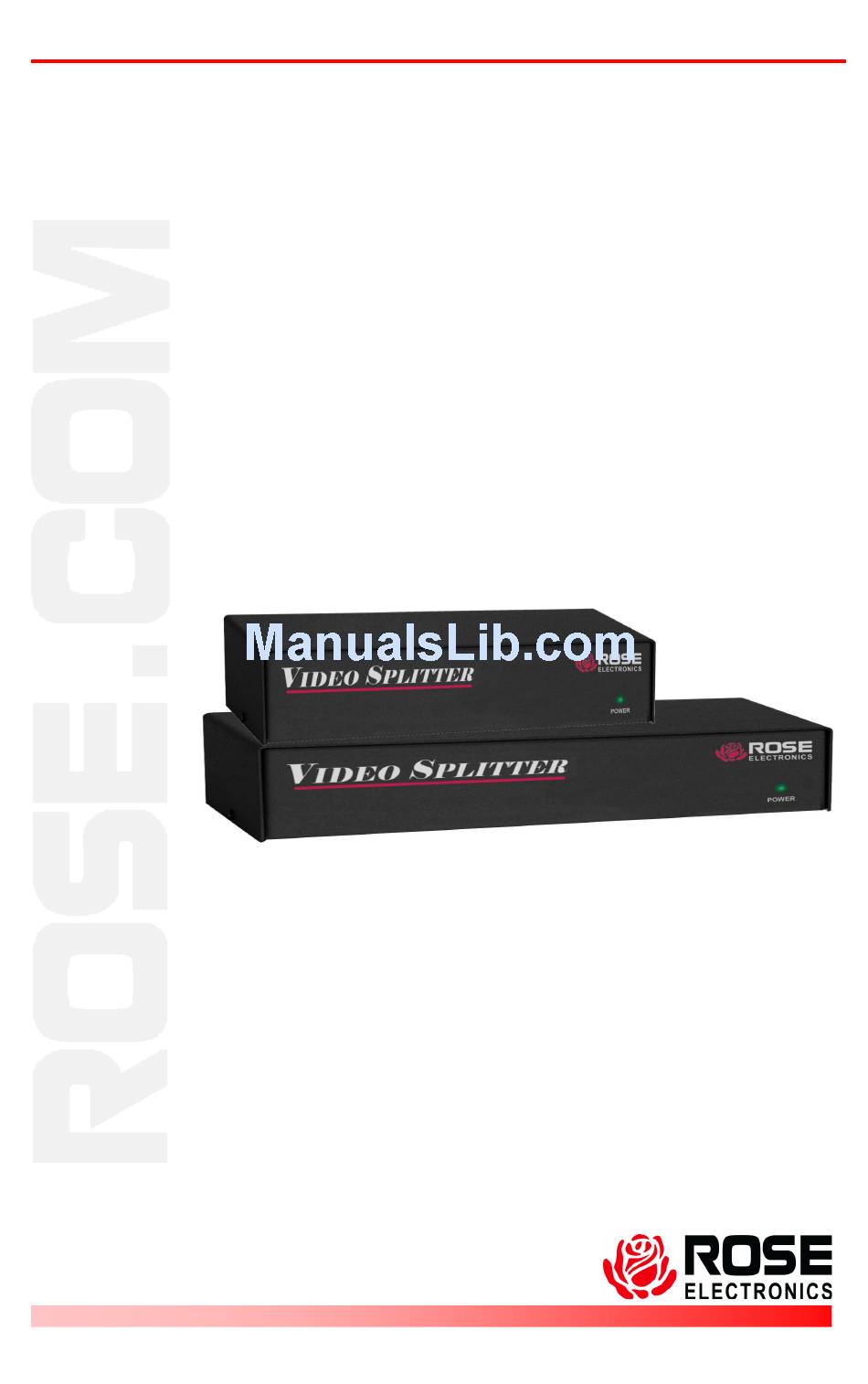

- Page 1 V V V V S S S S IDEO IDEO IDEO IDEO PLITTER PLITTER PLITTER PLITTER INSTALLATION OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
- Page 3 Rose Electronics® warrants the VideoSplitter DVI to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
-
Page 4: Table Of Contents
TABLE of CONTENTS Contents Page # Disclaimer ......................1 System Introduction ..................1 Features ......................2 Compatibility ....................2 Package contents ..................2 Video Splitter DVI Models .................3 Cables .......................3 Installation ......................4 Sytem Operation ....................5 Troubleshooting ....................6 Service Information ...................7 Maintenance and Repair ................7 Technical Support ..................7 Safety ........................8 Appendix A –... -
Page 5: Disclaimer
System Introduction ® Thank you for choosing Rose Electronics Video Splitter DVI for your DVI video distribution applications. The Video Splitter DVI enables you to take your video source from a PC, DVD player, or Set-Top box and, depending on your model, display the video on 2, 4, or 8 remote monitors, HDTV’s, or video... -
Page 6: Features
Power adapter. (Auto-switching transformer) Installation and operations manual. Video cables are usually ordered separately. Rose Electronics web site Visit out web site at www.rose.com for additional information on the Video Splitter DVI and other products that are designed for data center applications, classroom environments and other applications. -
Page 7: Video Splitter Dvi Models
MODELS Video Splitter DVI Models Model Connectors DVI-IN (1) - DVI-I DVI-OUT (2) - DVI-I VSP-2DVI ( Rear View) DVI-IN (1) - DVI-I DVI-OUT (4) - DVI-I VSP-4DVI (Rear View) DVI-IN (1) - DVI-I DVI-OUT (8) - DVI-I VSP-8DVI (Rear View) Figure 1. -
Page 8: Installation
INSTALLATION Installation Installing the Video Splitter DVI is a very simple and straight forward process. It is recommended that all equipment be powered off to start. Connect your DVI or VGA video source (PC, Set-Top Box, DVD Player, etc) to the DVI-IN connector (DVI-I Female) on the rear panel. If you are using a VGA video source, a VGA to DVI adapter must be used. -
Page 9: Sytem Operation
If your application requires that the DVI monitors be extended further than the standard 15 to 32 feet that a DVI cable allows, Rose Electronics offers a CATx and a Fiber DVI extender unit that can extend the distance up to 450 feet using CATx cable or up to 6 miles using singlemode fiber cable. -
Page 10: Troubleshooting
Video Splitter DVI that is not covered in this manual, please contact Rose Electronics for technical support. No Image on any monitor Check the DVI cable connection between the Video Splitter DVI unit and the computer’s video card for proper connections. -
Page 11: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 12: Safety
SAFETY Safety The Video Splitter DVI has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the Video Splitter DVI should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. - Page 13 Safety Safety information Documentation reference symbol. If the product is marked with this symbol, refer to the product documentation to get more information about the product. WARNING A WARNING in the manual denotes a hazard that can cause injury or death. CAUTION A CAUTION in the manual denotes a hazard that can damage equipment.
-
Page 14: Appendix A - General Specifications
Weight (8 port model) 2.4 lbs (1.09kg) Appendix B – Part Numbers Part Number Description VSP-2DVI 1 DVI Video In – 2 DVI Video Out VSP-4DVI 1 DVI Video In – 4 DVI Video Out VSP-8DVI 1 DVI Video In – 8 DVI Video Out... - Page 16 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
