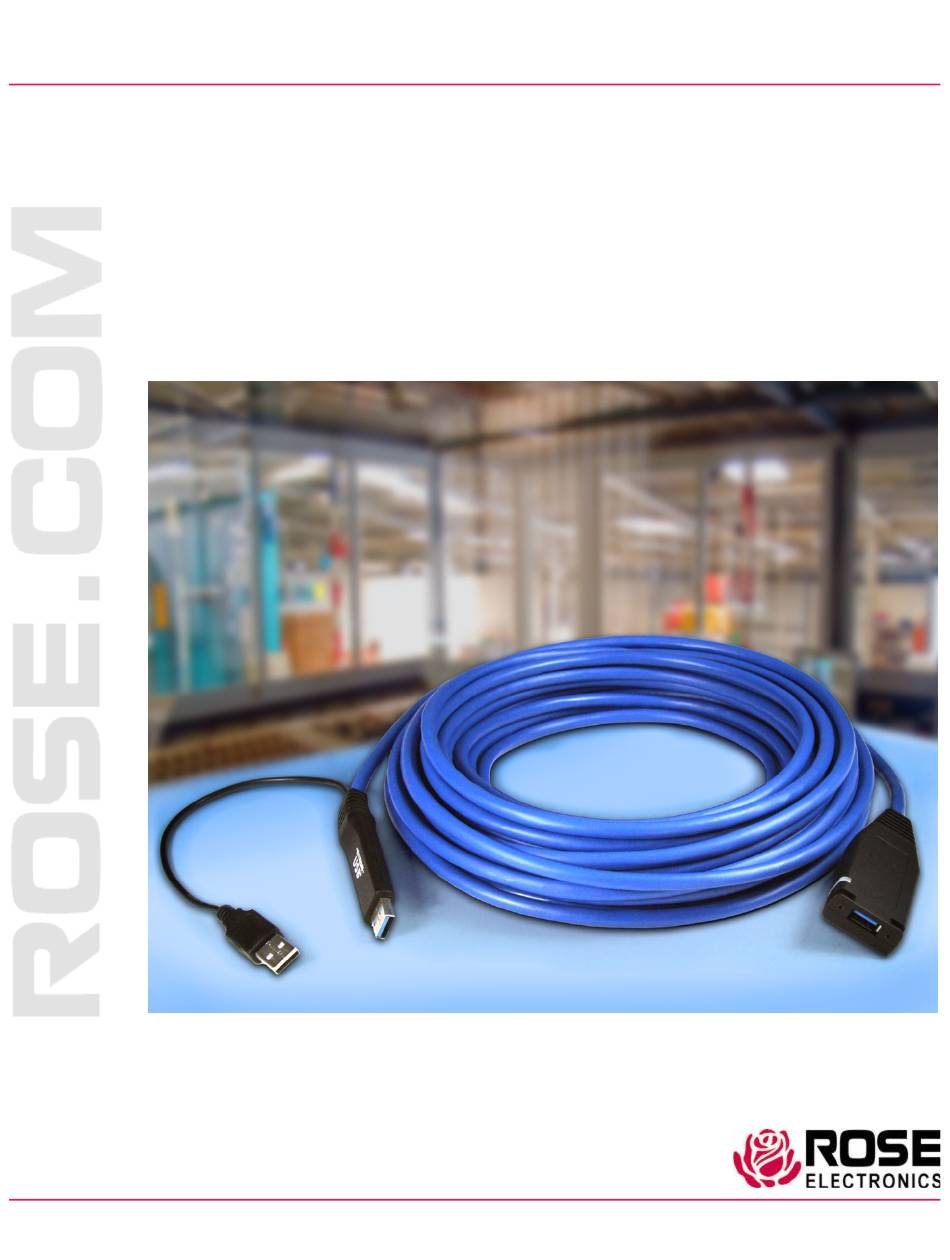

- Page 1 CrystalLink USB3.0 Extender Cable USB3.0 Active Extender Cable Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
- Page 2 CrystalLink USB3.0 Extender Cable to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer Product Introduction Features Package Contents Additional Items required Application Examples CrystalLink USB3.0 Extender Cable Installation Guidelines Requirements Cable Connection Compatibility Troubleshooting Safety Maintenance and Repair Technical Support Figures Figure 1. CrystalLink USB3.0 extender cable Figure 2. Description of connector parts Figure 3. -
Page 5: Disclaimer
(See limited warranty). Product Introduction Thank you for choosing the Rose Electronics CrystalLink USB3.0 extender cable. The USB3.0 extender cable delivers the advantages of super high-speed, 5Gbps USB3.0 throughput over copper cable. Simply plug the cable into the host transmitter device and connect the remote end to a USB3.0 camera or other USB3.0 high-... -
Page 6: Package Contents
Package Contents The package contents consist of the following: CrystalLink USB3.0 active extender cable Cable Tie User Manual Additional Items required USB Powered Hub (for remote port expansion) Application Examples The CrystalLink USB3.0 extender cable enables users to extend beyond an approximate 10ft (3m) cable limit for USB 3.0 peripheral devices by extending up to 50ft (15m) from the host computer. -
Page 7: Crystallink Usb3.0 Extender Cable
MODELS CrystalLink USB3.0 Extender Cable CrystalLink USB3.0 Active Extender Cable Figure 1. CrystalLink USB3.0 extender cable ITEM REFERENCE DESCRIPTION LED light is GREEN Active cable is powered on LED light is RED Active cable is not powered properly, or not detected by host Connects to USB 3.0 device. -
Page 8: Installation Guidelines
INSTALLATION Installation Guidelines Figure 3. USB3.0 extender cable – standard installation Requirements To complete installation, you will also require the following items: USB 3.0 compatible computer (host computer) with a USB 3.0 compliant operating system USB 3.0 compatible device (e.g. camera or storage drive) ... -
Page 9: Compatibility
Figure 5. Cable-tie slots Most USB 3.0 self-powered devices and flash drives require less than 2.5W of power, while many of the USB 3.0 cameras need more than 2.5W of power. When more than 2.5W of power is required, both connectors of the CrystalLink USB3.0 Extender should be plugged into the host computer. -
Page 10: Troubleshooting
TROUBLESHOOTING Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed, in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. PROBLEM CAUSE SOLUTION... -
Page 11: Safety
PRODUCT SAFETY Safety The CrystalLink USB3.0 extender cable, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. -
Page 12: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 13: Appendices
APPENDICES Appendix A — Specifications Part Numbers Description CLK-CAB1U3TP-15M CrystalLink USB3.0 extender cable, 1 port active copper cable, 50ft (15m), 5Gbps Cable Characteristics Cable Diameter .27” (6.9mm) with PVC jacket material Minimum Bend Radius 1.10” (28mm) Cable Distance 50ft (15m) Cable Speed Up to 5Gbps, (not backward compatible with USB1.1/2.0) Power Requirements... - Page 14 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
