Summary of Contents for Rose electronics UltraVista LC

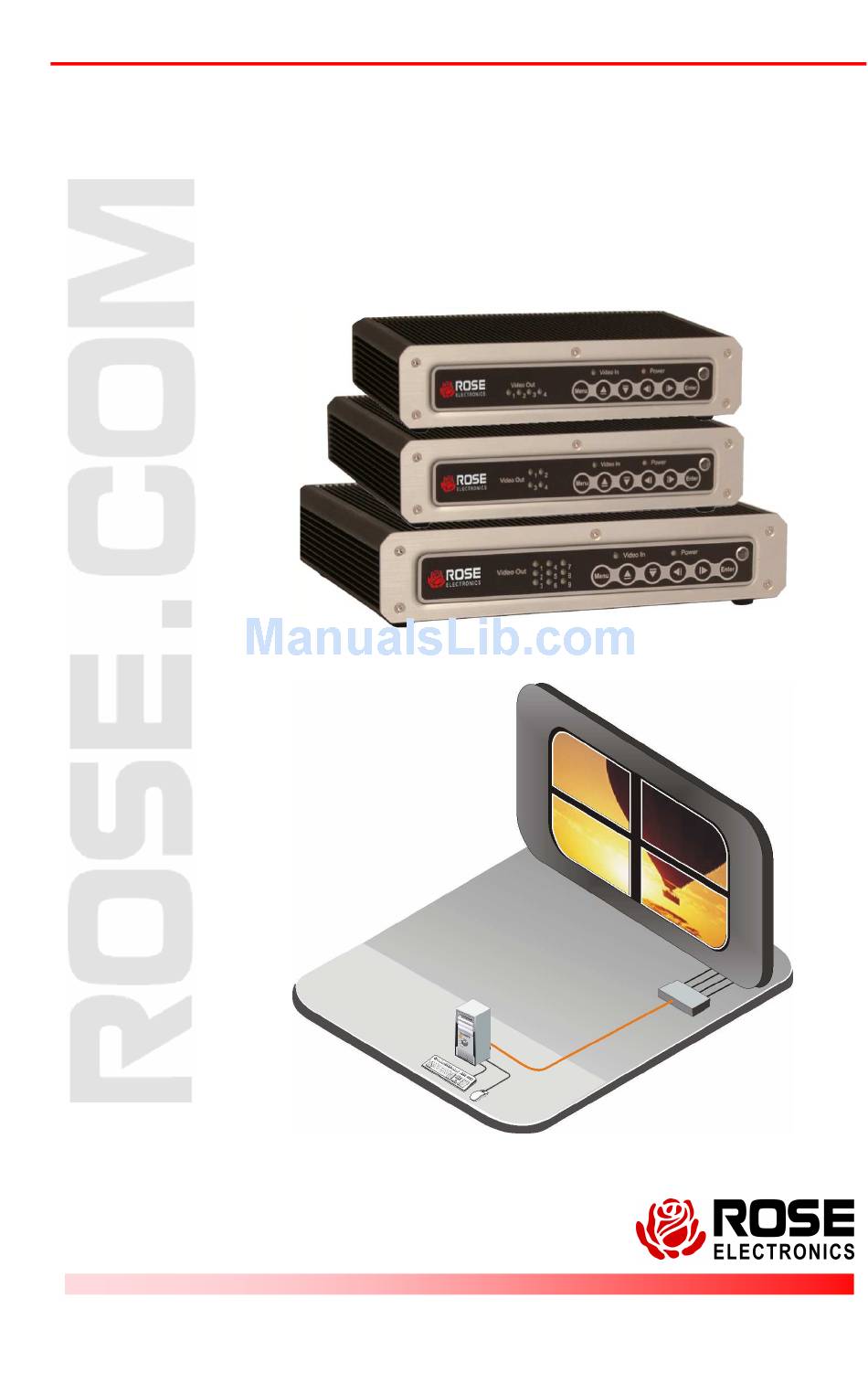

- Page 1 UltraVista LC Video controller/splitter INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
- Page 2 LIMITED WARRANTY Rose Electronics warrants the UltraVista LC to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 HAZARDOUS MATERIAL DISCOLSURE The details provided below are to ensure that the product is compliant with the Peoples Republic of China RoHS standards. The table below acknowledges the presence of small quantities of certain materials in the product, and is applicable to China RoHS only. Part Name Toxic or Hazardous Substances and Elements Lead...
-
Page 4: Table Of Contents
Rear Panel Connectors.................. 6 UltraVista LC Installation ................7 Installing the LCD Displays ................ 7 Bezel compensation value calculation ............8 Mounting the UltraVista LC unit ..............9 Connecting the cable.................. 9 Using the built-in OSD features..............10 OSD Menu Structure ................11 Mask Control.................. -
Page 5: Disclaimer
System Introduction The UltraVista LC is the product of choice for those who have the need to produce a high quality, inexpensive video wall. Models are available for a 1x4, 2x2, and 3x3 video wall. The 2x2 and 3x3 models can be expanded to produce a 4x4 or a 9x9 video array. -
Page 6: Features
Mounting brackets and hardware Installation and operations manual CD Quick Start Guide Cables are usually ordered separately. If the package contents are not correct, contact Rose Electronics or your reseller so the problem can be quickly resolved. UltraVista LC Installation and Operations Manual... -
Page 7: Compatibility
ATI Radeon HD 3800 Series – 3870, 3850, 3650, 3470, etc. ATI Radeon HD 4600 Series – 4670, 4650, etc. The UltraVista LC is compatible with almost any monitor that supports a DVI input. (LCD, HD Plasma, DLP, or projector) Rose Electronics web site Visit our web site at www.rose.com for additional information on UltraVista... - Page 8 MODELS UltraVista LC 1x4 model UltraVista LC 2x2 model UltraVista LC 3x3 model UltraVista LC Installation and Operations Manual...
-
Page 9: Front Panel Indicators / Controls
Up arrow button Moves the selection up Down arrow button Moves the selection down Left arrow button Moves the selection left Right arrow button Moves the selection right Enter button Selects the highlighted selection UltraVista LC Installation and Operations Manual... -
Page 10: Rear Panel Connectors
TOP – DVI-D video out connector BOTTOM – DVI-I video out connector NOTE: DVI-I connector supports both digital and analog signals. DVI-D video in connector UltraVista LC Installation and Operations Manual... -
Page 11: Ultravista Lc Installation
INSTALLATION UltraVista LC Installation Installation of the UltraVista LC is an easy process. The installation consists of installing the LCD displays, mounting the UltraVista LC unit, connecting all of the cables, adjusting the output resolution settings, and adjusting the bezel to align the images. -
Page 12: Bezel Compensation Value Calculation
(See the OSD section for instructions) Bezel Width (mm) Viewable Width (mm) “X” value = --------------------------- ---------------------------- Viewable Width (mm) Bezel Height (mm) Viewable Height (mm) “Y” value = ----------------------------- ------------------------------ Viewable Height (mm) UltraVista LC Installation and Operations Manual... -
Page 13: Mounting The Ultravista Lc Unit
DVI converter must be used. Each monitor connects directly to the corresponding DVI connector on the UltraVista LC’s rear panel. Refer to Figure 1, 2, and 3 for monitor numbering. Connect a DB-9MF serial cable to the DB9F serial connector on the UltraVista LC rear panel and to the DB-9M serial connector on a computer that will be used to send serial commands to the unit. -
Page 14: Using The Built-In Osd Features
To invoke the built-in OSD, press the MENU button on the front panel. The OSD will display on the monitor connected to the DVI output port #1. (Note: All cable connections and power must be applied) UltraVista LC Installation and Operations Manual... -
Page 15: Osd Menu Structure
OSD Menu Structure To reset the UltraVista LC to factory defaults, Press the “UP”, “Down”, and “Enter” buttons simultaneously until the “Reset to Mfg Default” message appears on the monitor connected to DVI output connector #1. Table 1 below shows the OSD menu structure. -
Page 16: Mask Control
(See Figure 4 for calculating Y) Link Control Link control enables (ON) or disables (OFF) the master unit to automatically adjust the mask settings of the attached slave units. Scan setting detects the attached slave units UltraVista LC Installation and Operations Manual... -
Page 17: Slave Mask Setting
DVI 1 = settings for unit #1 DVI 2 = settings for unit #2 DVI 3 = settings for unit #3 DVI 4 = settings for unit #4 /X displays the horizontal bezel setting /Y displays the vertical bezel setting UltraVista LC Installation and Operations Manual... -
Page 18: Settings
OUT = Output resolution from the UltraVista LC MODE = Mode setting of the UltraVista LC VW = 2x2 mode on the UltraVista LC 2x2 unit S = 2x1 mode on the UltraVista LC 2x2 unit C = 1x1 mode on the UltraVista LC 2x2 unit... -
Page 19: Information
/ DS x = slave setting for designated unit (1) H = horizontal resolution for the designated unit V = vertical resolution for the designated unit Sync and Power SYNC = for debugging Power = Turns unit power OFF UltraVista LC Installation and Operations Manual... -
Page 20: Firmware Information
Serial Number Displays the model name and serial number Remote controller All UltraVista LC models are supplied with a remote control. The remote control provides the same functions as the front panel push-buttons. Power: Turns the UltraVista LC unit on or off... - Page 21 Check that the power source for the monitor is turned on Check that the power source has the correct power rating Make sure the LCD panel power cables are securely fastened to the monitor and to the power source Check the monitor is connection UltraVista LC Installation and Operations Manual...
-
Page 22: Safety
Safety Safety The UltraVista LC has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the UltraVista LC should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 23: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. - Page 24 Power Adapter Output 11.52 V to 12.48 V / 2.1 A / 25 W Power Consumption 2x2 model - 10 W 3x3 model - 17 W Safety and Emission CCC, CE, FCC Temperature 0ºC – 40ºC UltraVista LC Installation and Operations Manual...
- Page 25 〒103-0014 東京都中央区日本橋蛎殻町 1-16-11 TEL:03-3668-8089 FAX:03-3668-9872 URL:http://www.cybernetech.co.jp...
