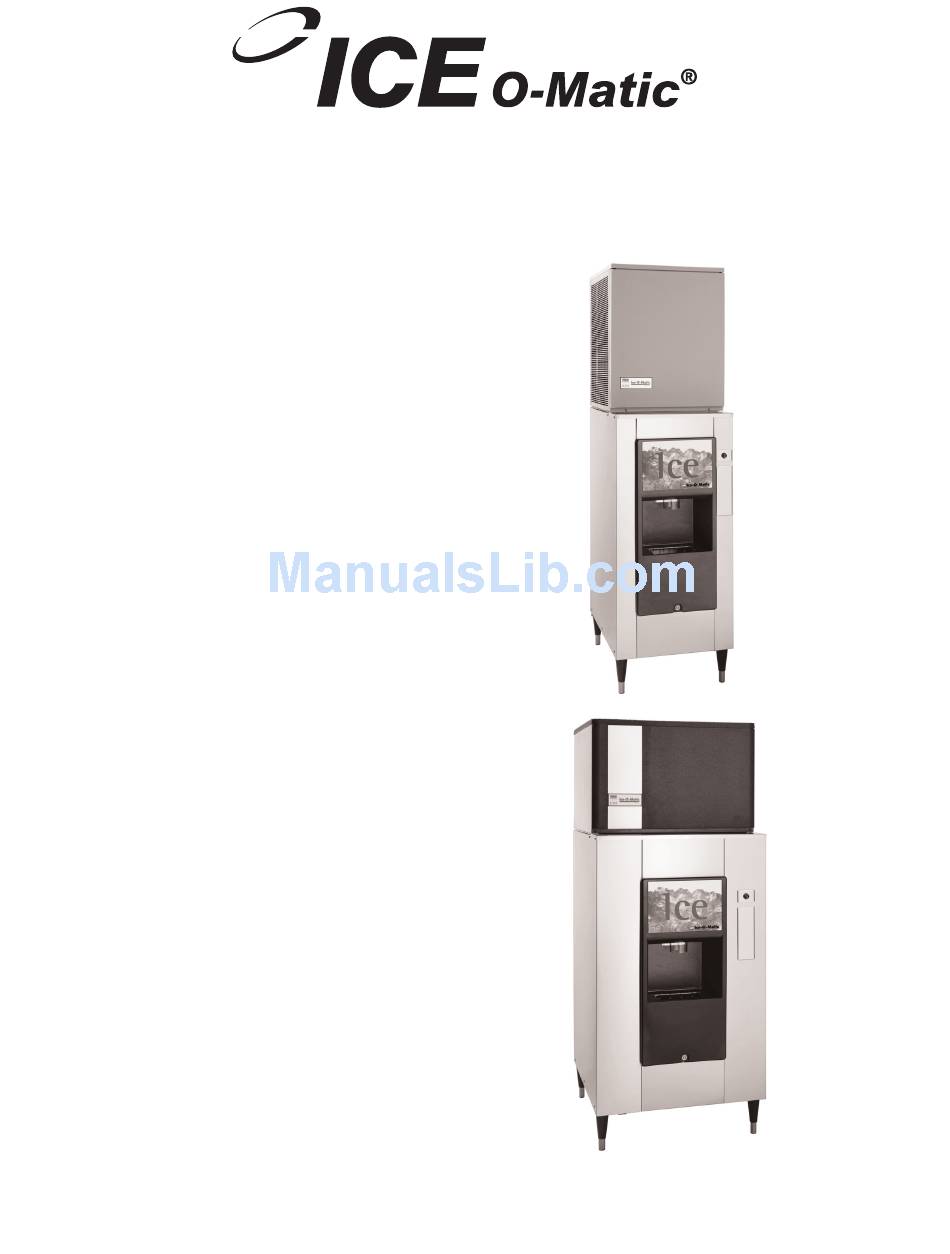

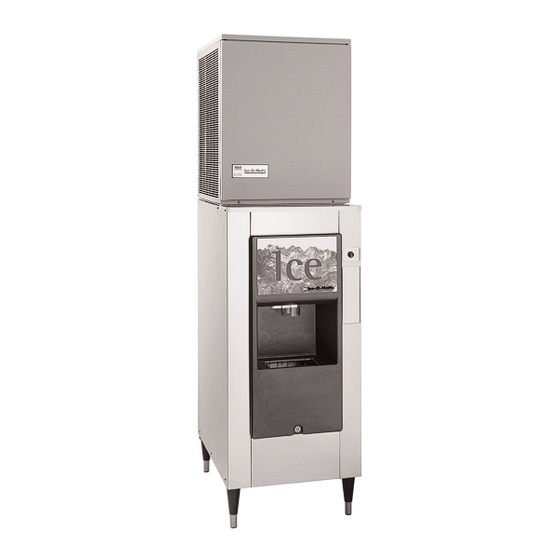

- Page 1 SERVICE/INSTALLATION MANUAL HOTEL/MOTEL DISPENSER GC Series Cuber Shown CD10022 CD10522 ICE Series Cuber Shown CD20030 CD20530 ICE-O-Matic 11100 East 45th Avenue Denver, Colorado, USA 80239 Part Number 80701101 Print Date: 6/00...
-
Page 3: Table Of Contents
550, ECP 400, 550, 556 ice machine as the source for ice. The CD-200-30 is designed to use a Ice-O-Matic model ICE 250, 400, 500 and 600 ice machine as the source of ice. Ice from the cuber falls into the insulated hopper, where it is stored until needed. When a user pushes the dispense button, a rotating wheel scoops the ice up and moves the ice to the top of the hopper where there is an outlet to the ice chute. -
Page 4: Specifications
CD10022 CD10522 Specifications Limitations: • Must meet the same limitations as the cuber installed on top of it: • 50 F air minimum • 100 F air maximum • Must be installed indoors • Must allow space to the right for air intake when using air cooled machine. -
Page 5: Installation: General
CD10022 CD10522 Installation: General After the carton has been removed from the dispenser, the legs may be installed. Place flat portions of the carton on the floor behind the dispenser and lay the dispenser down on its back. Thread the legs into the base of the dispenser. Be sure that the legs are screwed in all the way. -
Page 6: Installation
CD10022 CD10522 Installation: Ice Machine Check that gasket tape has been placed at the outside edge of the dispenser top. Place corner posts from the carton on top of the dispenser, at the left and right corners. Place the ice machine onto the dispenser. The ice machine is heavy, use of a mechanical hoist is recommended. -
Page 7: Kits
CD10022 CD10522 Kits: Coin Mechanism Kits are available to install a coin mechanism, a room key mechanism or a key card mechanism. All kits come with detailed instructions which are also listed below. Please follow these instructions carefully to complete the addition of the coin mechanism kit to the CD10022, CD10522, CD20030, and CD20530 ice dispenser. - Page 8 CD10022 CD10522 Kits: Coin Mechanism 15. Replace the control box cover, front brace and decorative front cover. The dispenser should now be restored to service. CD20030 CD20530...
- Page 9 CD10022 CD10522 Key Kit Installation This kit has been designed for use with the CD10022, CD10522, CD20030 and CD20530 ice dis- penser. When this kit is installed, ice cannot be dis- pensed unless a specific type of key is inserted into the lock cylinder.
- Page 10 CD10022 CD10522 Key Kit Installation The operation of this kit is as follows: When the key is inserted into the lock cylinder, a portion of the key will extend beyond the brass fitting. It is this part of the key that will actuate the kit micro switch.
- Page 11 CD10022 CD10522 Key Card Kit Installation This kit has been designed for use with the CD10022, CD10522, CD20030 and CD20530 ice dispenser. When this kit is installed, ice cannot be dispensed unless a key card is inserted into the key card slot. The kit contains a universal mounting and a microswitch assembly.
-
Page 12: Kits
CD10022 CD10522 Key Card Kit Installation The Operation of this kit is as follows: When the key card is inserted into the key card slot, and the dispenser button switch is depressed and held, the machine will dispense ice.. CD20030 CD20530... -
Page 13: Final Check List/Initial Start Up
CD10022 CD10522 Final Check List/Initial Start Up 1. Check that electrical power has been supplied. 2. Check that a drain, separate from the ice machine, insulated and made of rigid tubing, has been connected to the dispenser. 3. Check that the ice machine has been properly installed per the ice machine’s installation directions. -
Page 14: Operational Schematic
CD10022 CD10522 Operational Schematic CD20030 CD20530... -
Page 15: Cleaning
CD10022 CD10522 Cleaning General Care and Ceaning: Periodically inspect and clean the ice dispenser to keep it operating at peak performance. Wash the outside of the dispenser with warm water and soap. Rinse off and dry. Cleaning and Sanitizing of the Ice Storage Bin: The minerals, chlorine and other impurities in the water are rejected from the water during the... -
Page 16: Cleaning
CD10022 CD10522 Cleaning 10. Mix a solution of ice machine sanitixer and water: 1 ounce of household bleach to 2 gallons of F-115 F) water. Wash all interior surfaces and the wheel withthe sanitizer solution. Use a clean cloth. 11. Allow the parts to air dry. 12.Reassemble wheel and sweep arm onto drive shaft. -
Page 17: Service Diagnosis
CD10022 CD10522 Service Diagnosis PROBLEM Does not vend Coin Mechanism Leaks water POSSIBLE CAUSE No ice No power Vend switch open Sink interlock switch open Ice jams in chute Front panel not on all the way Gear motor open Relay does not operate Ice door does not open Drive shaft broken Does not vend, no ice... -
Page 18: Removal And Replacement
CD10022 CD10522 Removal and Replacement Electrical shock hazard. Electrical shock can cause personal injury. Disconnect power before begining to service components. Gear Motor: 1. Disconnect electrical power. 2. Locate key and remove front panel. 3. Remove dispenser wheel. 4. Disconnect wires at gearmotor. 5. -
Page 19: Electrical Schematics
CD10022 CD10522 Standard With Room Key Kit or Card Kit Electrical Schematic CD20030 CD20530... - Page 20 CD10022 CD10522 Standard With Room Key Kit or Card Kit Electrical Schematic CD20030 CD20530...
-
Page 21: Electrical Schematics
CD10022 CD10522 With Coin Mechanism Electrical Schematic CD20030 CD20530... -
Page 22: Service History
SERVICE HISTORY MODEL NUMBER: ______________ SERIAL NUMBER: _____________ ____________________________ ____________________________ ____________________________ ____________________________ ____________________________ ____________________________ ____________________________ ____________________________ ____________________________ ____________________________ ____________________________ 11100 East 45th Avenue • Denver, Colorado, USA 80239 • Telephone: (303) 371-3737 • Facsimile: (303) 371-6296...
