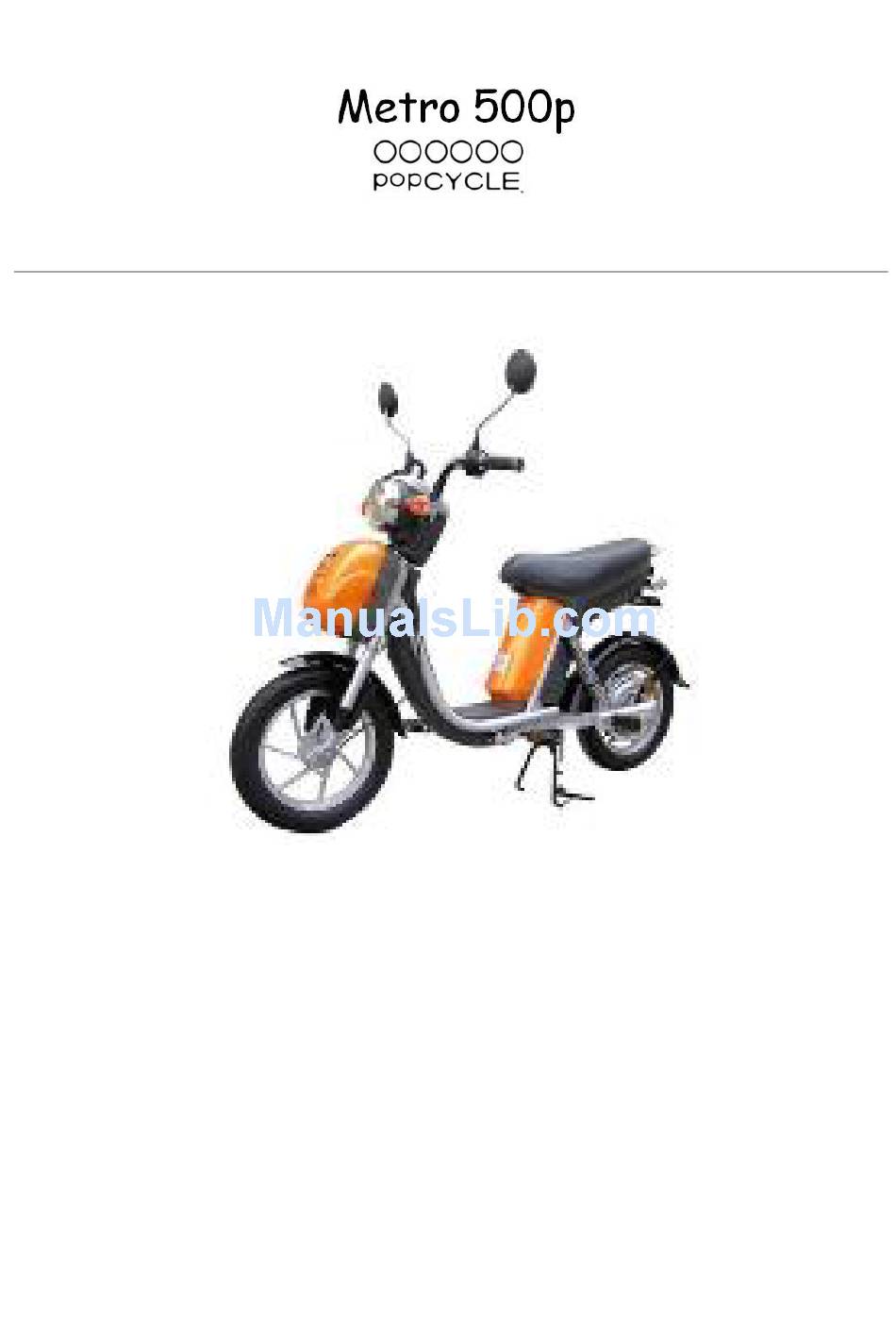

- Page 1 USER GUIDE...
- Page 2 The 21st Century will be the one to resolve the problem between the development of means of transportation and the downgrade of the quality of life. The electric bicycles are means of transportations that are clean and contribute in the upgrade of the quality of life for all.
- Page 3 Technical Characteristic Dimensions (LxlxH) 164.5*62*101cm Net weight (without battery) 47.8KGS Max loading weight 125KGS □ □ □ □ Maximum speed 20km/h 25km/h 32km/h 42km/h □ □ □ Battery life >300 times >500 times >1000 times □14Ah lead-acid □12Ah lithium □14Ah lithium □20Ah lithium Battery capacity (48V) □2-4 hours...
-
Page 4: Pedal Installation
Pedal Installation Intermediary state or ATTENTION Step Initial step Piece Actions final Align the wholes of the crank with the fixation Crank support Fasten the crank to its support with the bolt that is planned for this effect, Bolt screw bolt very tightly Place cap on top of bolt. - Page 5 Installation of front storage box Step Initial state Actions Unscrew the 2 top screws with the help of a Phillips screw driver, keep screws on the side. Locate the 4 fixation points. Take storage box out of packaging and open as shown in the picture on left.
- Page 6 Installation of steering (handle bars) Step Initial state Actions Remove plastic cover to access steering column. Remove handle bars from its packaging and place on steering column as is shown in the picture opposite. Coincide all the wholes and insert the fixation bolt. Tighten bolt and put the plastic cover back.
- Page 7 Operation Safety tips 1) We strongly recommend to attentively read this user guide before using your electric bicycle so as to really understand the way it functions. 2) Please respect the codes of the road (laws) and ride on appropriate roads. 3) Your electric bicycle rides faster than a conventional bike, slow down on rainy days and keep your distance from other vehicle.
- Page 8 The commands High beam switch Light switch LEFT SIDE RIGHT SIDE Turning signal Speed handle Horn Horn High beam switch: Light switch: Controlee who allows switching between high Position lights off beams and head lights. Position dashboard light on Turning signals : Position lights on Push on the switch right or left to signal right...
- Page 9 Before taking the road 1) Check tire pressure (2.0 bars in front and 2.2 bars in back) 2) Check battery level. 3) Check braking system efficiency and if motor shuts off when brakes are applied. Ignition: 1) Insert the key and turn it to the symbol on ( ), the dashboard lights up and the motor is ready to go 2) Pedaling before using the throttle will help saving battery...
- Page 10 The battery could be charged on the electric bicycle or while removed from it. The original charger which was provided has to be used, as the use of a different charger could irreparably damage the battery. Battery indicator: The level indicated is actual when the electric bicycle is in motion. If the level is weak, make sure to pedal and charge the battery as soon as possible.
- Page 11 Disassembly of this battery voids all guarantees unless opened by an electrician authorized by Popcycle Motors. 5. Store in a cool, dry area out of direct sunlight. If this battery is to be stored for more than two months please charge the battery for two hours every two months of storage.
- Page 12 Adjusting screw Tighten the adjusting bolt until the leeway of the lever of the back break is about 10 to 20 mm. Adjustment tool Attention: After the adjusting done, the back wheel should be able to spin freely. Front brake adjusting Tighten the adjusting bolt to get a firmer response from your brakes.
- Page 13 Maintenance The following maintenances have to be done as regularly as possible, general rule, once a week: 1) Clean the surface of the motor and of the entire electric bicycle. 2) Verify the motor and the pod of connection. 3) Check the fixation of each element, retighten the screws if necessary. Regular maintenance: Check up every 6 months: Check and adjust the braking system...
- Page 14 Repair Symptom Possible causes Solution Ignition on ,and the 1. Mischarge of the battery 1. Clean the battery display board doesn’t 2. The fuse has melted terminal turn on 3. The Niemen is defective 2. Change the fuse 4. Wrong connection of 3.
- Page 15 Connector controller:...
