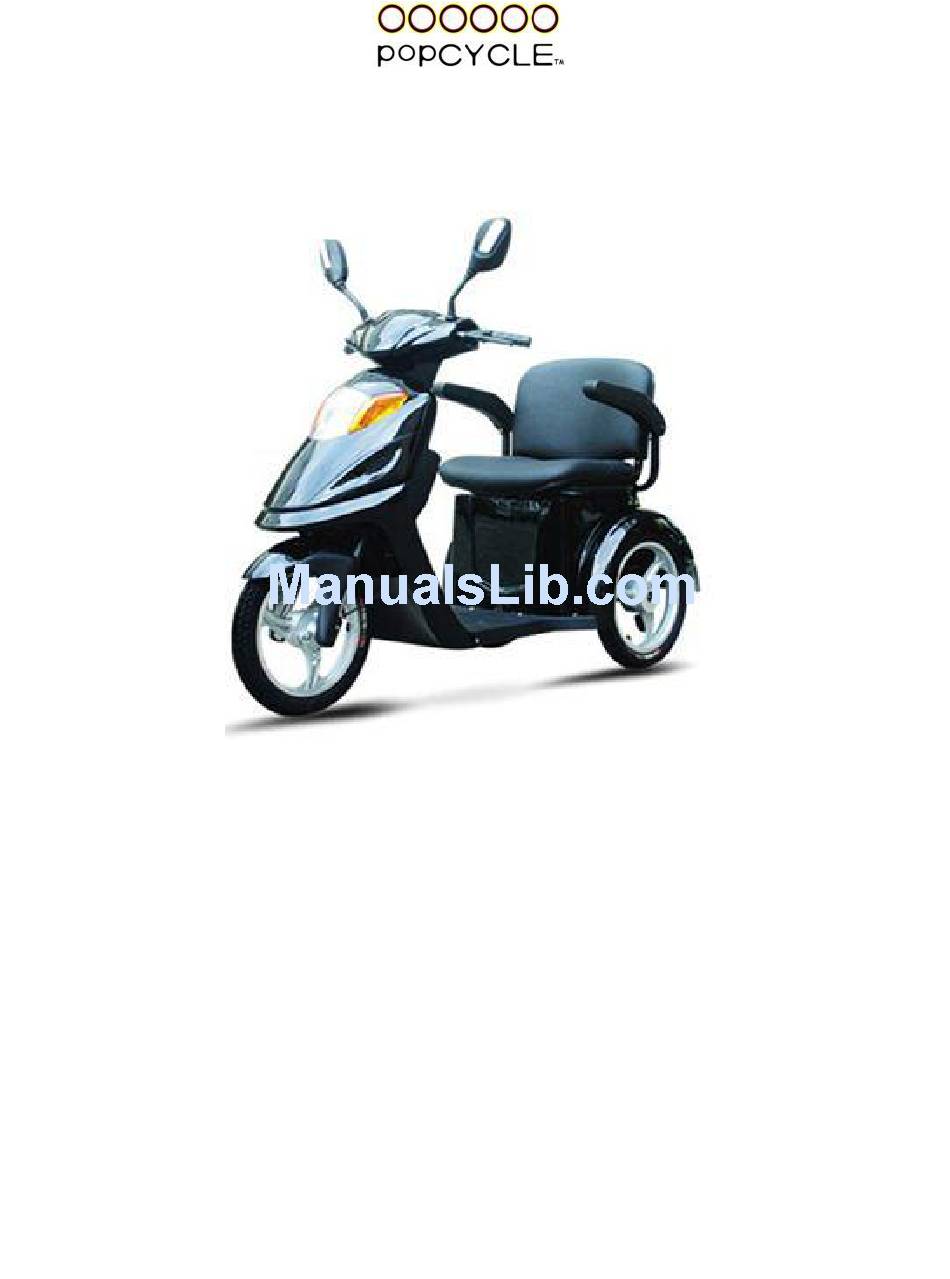

Smooth e500
Product Specifications:
Overall Length: 58.2"
Overall Width: 26.7"
Overall Height: 47.2"
GW: 200lbs. / NW: 187lbs.
Tire (Front/Rear): 16"x 3"
Front/Rear Drum style brakes
Battery: 48 Volt Lead Acid battery pack
Motor: 500W
Controller: 14amp
Maximum forward speed: 12-18MPH on a flat surface
Continuous range: 25 miles
Battery Charger: 110/220 Volt
Charge Time: 4-8 hrs.
Popcycle Motors LLC
Tel: (314) 438-6253
www.popcyclemotors.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PopCycle Smooth e500
Summary of Contents for PopCycle Smooth e500
- Page 1 Smooth e500 Product Specifications: Overall Length: 58.2” Overall Width: 26.7” Overall Height: 47.2” GW: 200lbs. / NW: 187lbs. Tire (Front/Rear): 16”x 3” Front/Rear Drum style brakes Battery: 48 Volt Lead Acid battery pack Motor: 500W Controller: 14amp Maximum forward speed: 12-18MPH on a flat surface...
- Page 2 Parking Button Throttle (twist type - right handgrip) Turn Signal Headlight Lift up armrest for easy access Front Panel Swivel Seat Front Fender Drive Motor Front Suspension Brake Hub Housing Brake Hub Housing Popcycle Motors LLC Tel: (314) 438-6253 www.popcyclemotors.com...
- Page 3 Applying the brakes automatically turns off the motor which adds an additional level of safety for the driver and more efficiently uses the brakes. Battery: Especially designed for your electric vehicle. Frame: High quality stainless steel frame Popcycle Motors LLC Tel: (314) 438-6253 www.popcyclemotors.com...
-
Page 4: Important Safety Instructions
Never modify your bike in any way. Only attachments and parts supplied by Popcycle or expressly approved by Popcycle for use with the specific Popcycle models are authorized. Although certain unauthorized add-ons are useable their use may, in fact, be extremely dangerous. - Page 5 Do not overload your scooter as it could damage components or cause an unstable and dangerous condition. Refer to the owners manual for the specific weight restrictions of your Popcycle Model. Do not submerge scooter in water as this could short circuit and damage electrical equipment and or cause serious personal injury.
- Page 6 The original charger which was provided has to be used, as the use of a different charger could irreparably damage the battery. Popcycle Motors LLC Tel: (314) 438-6253 www.popcyclemotors.com...
- Page 7 If the charger doesn’t stop charging after 10 hours, stop charging and call customer service. Use only the original charger. Don’t leave the charger in the electric bicycle; it could be damaged by the vibrations of the bike. Popcycle Motors LLC Tel: (314) 438-6253 www.popcyclemotors.com...
- Page 8 Greasing the front and back axles, the stand and the brake cable. Be aware of the state of usage of the brake lining. If the cables get stuck, you must take apart, clean and grease and put back together. Popcycle Motors LLC Tel: (314) 438-6253 www.popcyclemotors.com...
-
Page 9: Troubleshooting Guide
The switch of the braking system that shuts motor off should be at its original position, if it is not or if it is blocked by a foreign object. Place back to its original and remove blocking object Popcycle Motors LLC Tel: (314) 438-6253... - Page 10 Connector controller: Popcycle Motors LLC Tel: (314) 438-6253 www.popcyclemotors.com...
