invotel SX8800-P2 User Manual

Problems
• Unplug the power, press on SD card so it snaps out, wait 30
seconds, re-insert the SD card and make sure it snaps IN , re-
Player not working or
connect the power securely., observe the LED is turning ON
stopped working
• Some low capacity SD cards are not compatible, in that case
RED LED turns ON but the player does not play, use the provided
SD card or try another correct type SD card and try formatting it.
• Check the audio cord; try re-inserting it again, adjust the volume
• If you use Windows 98 SE, ensure to use it's USB driver is
Cannot Transfer files to
installed properly in your system.
SD card
• Ensure the SD card is snapped in, ensure USB adapter is
connected securely to your PC USB port, try another USB port
directly, Ensure to observe that the Status LED turns ON solid
on the USB adapter. Make sure SD card is not locked.
• Verify that the audio cord is plugged in securely all the way IN,
Audio Volume is too low
• Turn the Volume Up -press and Hold the V+
Specifications:
File Formats: MP3, WMA, MAC, etc.
Frequency response: 20Hz to 20 KHz. less than 0.1% THD
Sampling rate: >64kbps Mono ,128kbps recommended
PC Interface: USB 2.0 Hi-Speed(MSC) compatible with USB 1.0
Memory Capacity : SD card 64MB to 4GB (up to 256 hours on 4GB SD card)
Output Power: 1 watts maximum, Volume control
Power supply: 110VAC/240VAC 50-60 Hz. To 5 VDC 500 ma
Size: 4 " x 2.5 " x 1" (L x W x H)
Color: Blue Weight: (1.0 pounds with power supply)
Warranty
This product is warranted against defects for a period of Three (3) years from the date of
original invoice. We will repair/replace the product with no charge for parts or labor during this
period. To obtain warranty service the product needs to be returned freight prepaid by the
customer with a copy of original invoice. This warranty does not apply if in the sole opinion of
Innovative Telecommunication Technology LLC, the product has been tampered with or
damaged by lightning or any other acts of nature, misuse, neglect or unauthorized service.
EXCEPT AS SPECIFICALLY PROVIDED IN THIS AGREEMENT, THERE ARE NO OTHER
WARRANTIES, EXPRESSED OR OTHERWISE,INCLUDING, BUT NOT LIMITED TO ANY
IMPLIED WARRANTIES OR MERCHANTIBILITES OR FITNESS FOR A SPECIAL PURPOSE.
IN NO EVENT SHALL INNOVATIVE TELECOMMUNICATION TECHNOLOGY LLC (INVOTEL)
BE LIABLE FOR LOSS OF PROFITS OR BENEFITS , INDIRECT, SPECIAL,
CONSEQUENTIAL OR OTHERWISE ARRISING FROM ANY BREACH OF THIS WARRANTY
OR OTHERWISE.
®
1112 Montana Ave Suite 250 Santa Monica, CA 90403 USA
Tel: 310-899-0078
Fax: 310-857-6401 http://www.invotel.com
Possible Cause / Solution
P4
User Manual
SX8800-P2
Professional USB drive /SD Digital Player

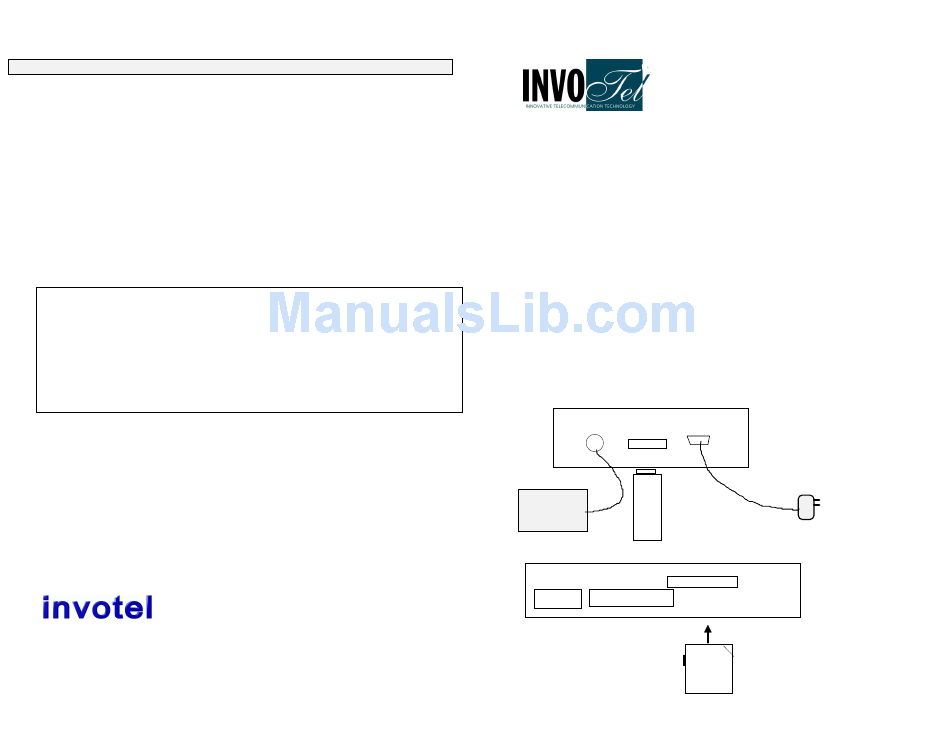

Install the player near the phone system MOH jack
•
Connect the 600/8 Ω OUTPUT jack to your phone system MOH jack
•
using the provided Mono/RCA cord
connect via a Mono to Mono or stereo to stereo cord)
Insert the SD card into the player and make sure it "snaps in" fully
•
Alternatively you may insert a USB Flash drive to "USB drive"
•
Connect the power jack to the AC adapter as shown
•
Turn ON the Player via the ON-OFF switch
•
Adjust Volume level up or down as needed
♦ ♦ ♦ ♦
You may turn the speaker ON to "test the playback" by un-plugging the
♦ ♦ ♦ ♦
audio cord from the player then re-insert the cord back in when done.
600Ω/ 8Ω USB drive
TELEPHONE
SYSTEM
MOH PORT
Optional
Volume SD card slot
Power
ON OFF UP
DOWN
Rev 05
