AMX Dual COM Port Card NXC-COM2 Installation Manual

NetLinx Control Cards and NetModules
NetLinx Control Cards can be installed in either the NXF CardFrame, NI-4000, or
NetModules. For detailed information on the cards, refer to the NetLinx CardFrame,
Control Cards, and NetModules Instruction Manual available on-line via
www.amx.com.
ICSNET Status LED
LED 1
LED 4

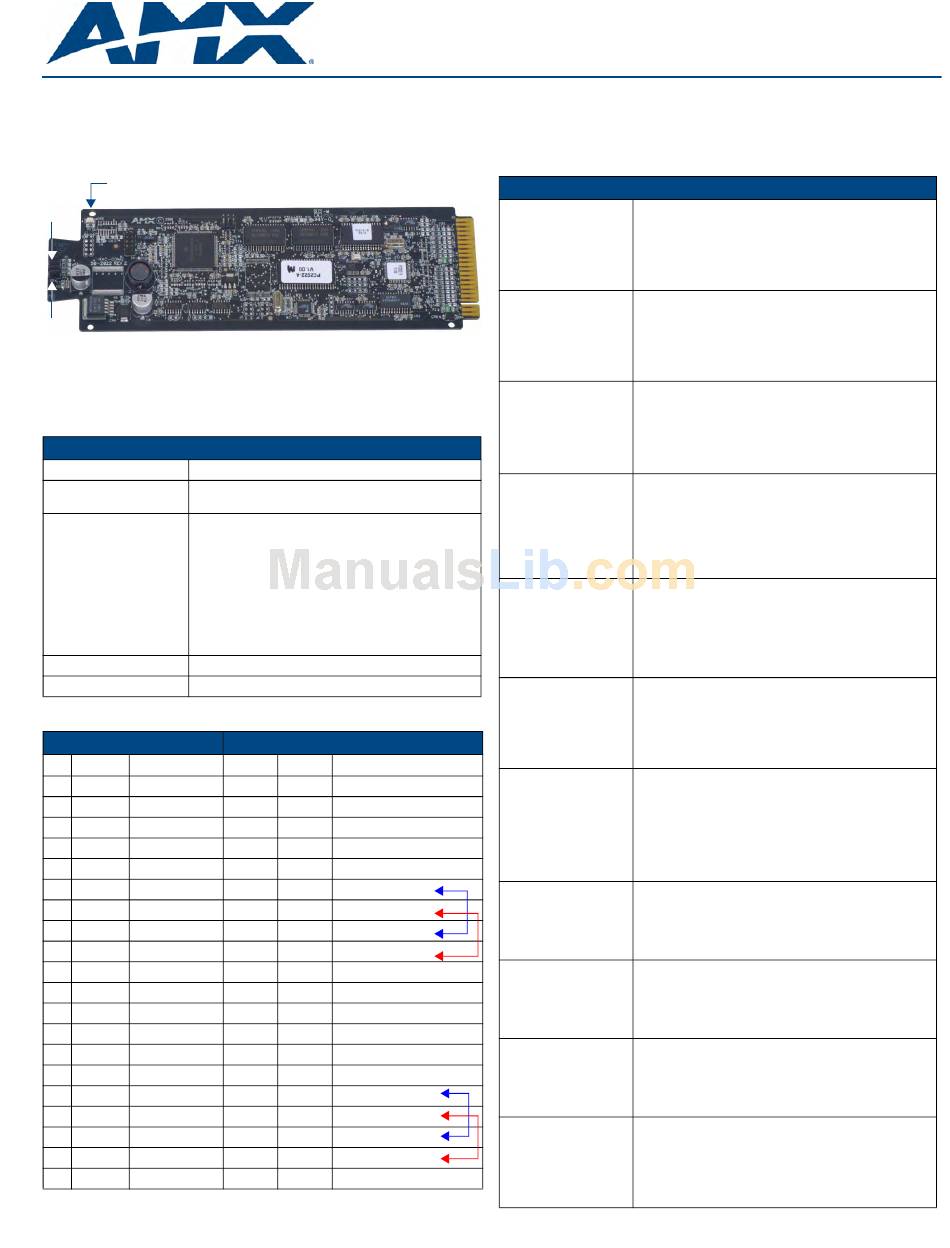

FIG. 1
NXC-COM2 Dual COM Port Control card
NXC-COM2 Specifications
The NXC-COM2 Dual COM Port Control Card provides two RS-232/422/485 control
ports and LED feedback for remote sources connected to the NetLinx CardFrame,
NI-4000, or NetModule:
NXC-COM2 (FG 2022) Specifications
Power Requirements: 140 mA @ 12 VDC
Operation: Data 1-2: Two RS-232/422/485 control ports, supports
XON/XOFF, CTS/RTS
Status LEDs • Red LEDs show TX (transmit) data activity
(2 per channel):
• Yellow LEDs show RX (receive) data activity
- LED 1: CH1 TX (red)
- LED 2: CH1 RX (yellow)
- LED 3: CH2 TX (red)
- LED 4: CH2 RX (yellow)
• Green ICSP status LED (located on the board):
- On = card is not in communication with the Master.
- Blinks (1-second intervals) during normal operation.
Connections/wiring: Two 10-pin 3.5 mm captive-screw terminals
DEVICE_ID: $0107
NXC-COM2 Pinouts and Wiring Information:
NXC-COM2 Pinouts
Pin Signal Function
1 GND Signal ground
2 RXD1 Receive data
3 TXD1 Transmit data
4 CTS1 Clear to send
5 RTS1 Request to send
6 TX1+ Transmit data
7 TX1- Transmit data
8 RX1+ Receive data
9 RX1- Receive data
10 +12 VDC Power
11 GND Signal ground
12 RXD2 Receive data
13 TXD2 Transmit data
14 CTS2 Clear to send
15 RTS2 Request to send
16 TX2+ Transmit data
17 TX2- Transmit data
18 RX2+ Receive data
19 RX2- Receive data
20 +12 VDC Power
NXC-COM2
NXC-COM2 Wiring Configuration
RS-232 RS-422 RS-485
X X
X
X
X
X
X X (strap to pin 8)
X X (strap to pin 9)
X X (strap to pin 6)
X X (strap to pin 7)
Optional Optional
X X
X
X
X
X
X X (strap to pin 18)
X X (strap to pin 19)
X X (strap to pin 16)
X X (strap to pin 17)
Optional Optional
Dual COM Port Card, 2 RS-232/422/485
NXC-COM2 Channel Assignment:
Channel 255 is the CTS (Clear To Send) push channel. It reflects the state of the CTS
input if a 'CTSPSH' command was sent to the device.
NXC-COM2 Programming Information:
NXC-COM2 Send_Commands
B9MOFF Syntax:
Disable 9-bit in SEND_COMMAND <DEV>,"'B9MOFF'"
232/422/455 mode. Example:
This command works in
SEND_COMMAND SOMEDEVICE_1,"'B9MOFF'"
conjunction with the
Sets the port settings on SOMEDEVICE to match the port's
B9MON command.
configuration settings.
B9MON Syntax:
Enable 9-bit in SEND_COMMAND <DEV>,"'B9MON'"
232/422/455 mode. Example:
This command works in
SEND_COMMAND SOMEDEVICE_1,"'B9MON'"
conjunction with the
Resets the
B9MOFF command.
nine data bits and one stop bit.
CHARD Syntax:
Set the delay time SEND_COMMAND <DEV>,"'CHARD-<Time>'"
between all transmitted time: 0 - 255. Measured in 100 microsecond increments.
characters to the value
Example:
specified (in 100 micro-
SEND_COMMAND RS232_1,"'CHARD-10'"
second increments).
Sets a 1-millisecond delay between all transmitted characters.
CHARDM
Syntax:
Set the delay time
SEND_COMMAND <DEV>,"'CHARDM-<Time>'"
between all transmitted time: 0 - 255. Measured in 1 millisecond increments.
characters to the value
Example:
specified
SEND_COMMAND RS232_1,"'CHARDM10'"
(in 1 millisecond
Sets a 10-millisecond delay between all transmitted
increments).
characters.
CTSPSH If Clear To Send (CTS) is set high, then channel 255 is On.
Syntax:
Enable Pushes,
Releases, and status
SEND_COMMAND <DEV>,"'CTSPSH'"
information to be reported
Example:
via channel 255 using the
SEND_COMMAND RS232_1,"'CTSPSH'"
CTS hardware handshake
Sets the RS232_1 port to detect changes on the CTS input.
input.
CTSPSHOFF
Syntax:
Disable Pushes,
SEND_COMMAND <DEV>,"'CTPSH OFF'"
Releases, and Status Example:
information to be reported
SEND_COMMAND RS232_1,"'CTSPSH OFF'"
via channel 255.
Disables the RS232_1 port to detect changes on the CTS
input.
GET BAUD Syntax:
Get the RS-232/422/485 SEND_COMMAND <DEV>,"'GET BAUD'"
port's current Example:
communication parame-
SEND_COMMAND RS232_1,"'GET BAUD'"
ters.
Device responds with:
Device sends the
<port #>,<baud>,<parity>,<data>,<stop>
response out the Master
485 <ENABLED | DISABLED>
program port.
HSOFF
Syntax:
Disable hardware
SEND_COMMAND <DEV>,"'HSOFF'"
handshaking (default). Example:
SEND_COMMAND RS232_1,"'HSOFF'"
Disables hardware handshaking on the RS232_1 device.
HSON Syntax:
Enable RTS
SEND_COMMAND <DEV>,"'HSON'"
(ready-to-send) and CTS Example:
(clear-to-send) hardware
SEND_COMMAND RS232_1,"'HSON'
handshaking.
Enables hardware handshaking on the RS232_1 device.
RXCLR Syntax:
Clear all characters in the SEND_COMMAND <DEV>,"'RXCLR'"
receive buffer waiting to Example:
be sent to the Master.
SEND_COMMAND RS232_1,"'RXCLR'"
Clears all characters in the RS232_1 device's receive buffer.
RXOFF Syntax:
Disable the transmission
SEND_COMMAND <DEV>,"'RXOFF'"
of incoming received Example:
characters to the Master
SEND_COMMAND RS232_1,"'RXOFF'"
(default).
Stops the RS232_1 device from transmitting received
characters to the Master.
Installation Guide
