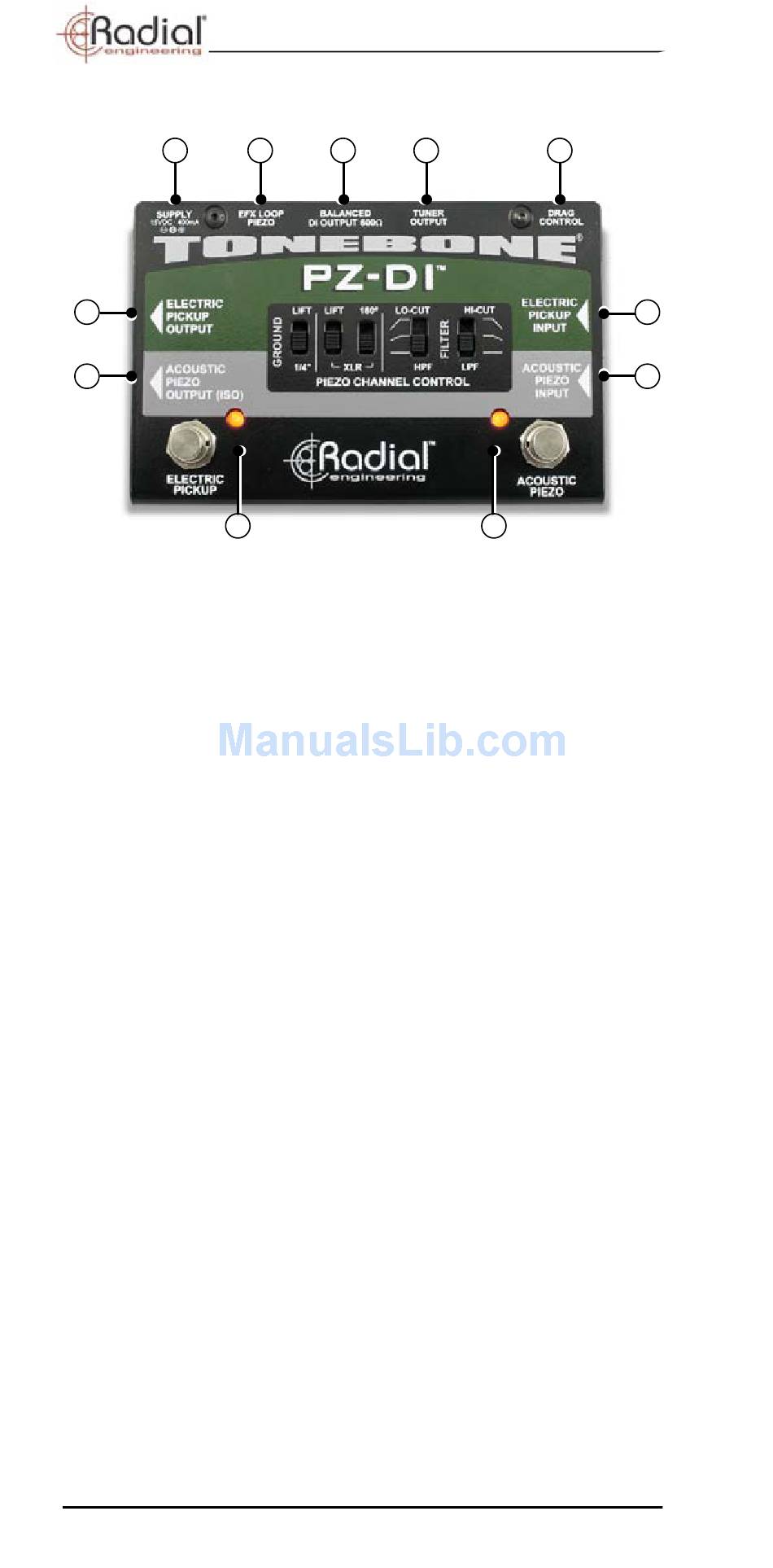

FEATURES AND FUNCTIONS
1
11
10
1. POWER SUPPLY (15VDC-400mA): connection for the
included 15 volt DC, center pin positive power supply. Use
only with Radial power supply #R800-9407.
2. EFFECTS LOOP (PIEZO CHANNEL): ¼" TRS insert jack
allows effect pedals to be placed in the acoustic piezo signal
path. (Tip=Send / Ring=Return)
3. BALANCED DI OUT: balanced mic-level XLR output sends
acoustic piezo signal to the PA or recording system.
4. TUNER OUT: buffered and always on ¼" output sends
magnetic and piezo pickup signals to an electronic tuner.
5. DRAG CONTROL: recessed control adjusts the amount of
load on the magnetic pickup. Full clockwise is max input
impedance (approximately 1MegaOhm) and produces a
bright tone. Turning counter-clockwise will increase the load
on the pickup and darken the tone.
6. ELECTRIC PICKUP INPUT: ¼" input for the guitars magnetic
pickup.
7. ACOUSTIC PIEZO INPUT: ¼" input for the guitars acoustic
piezo pickup. NOTE: This input may also be fed from the
electric input jack by using a TRS (Tip Ring Sleve) ¼" phone
jack where the ring conducts the acoustic pickup.
8. ACOUSTIC PIEZO FOOTSWITCH: used to activate the
guitars acoustic piezo pickup channel.
9. ELECTRIC PICKUP FOOTSWITCH: used to activate the
guitars magnetic pickups channel. NOTE: Both PZ-DI
channels and pickups may be active at the same time.
10. ACOUSTIC PIEZO OUT: ¼" output connects the acoustic
piezo pickup to the on-stage acoustic amplifi er. This output
is transformer isolated to block ground loops between your
electric and acoustic amplifi ers.
11. ELECTRIC PICKUP OUT: ¼" output connects the magnetic
pickup signal to the on-stage amplifi er.
