Block Diagram; Warranty - Radial Engineering PZ-DI User Manual

True to the Music

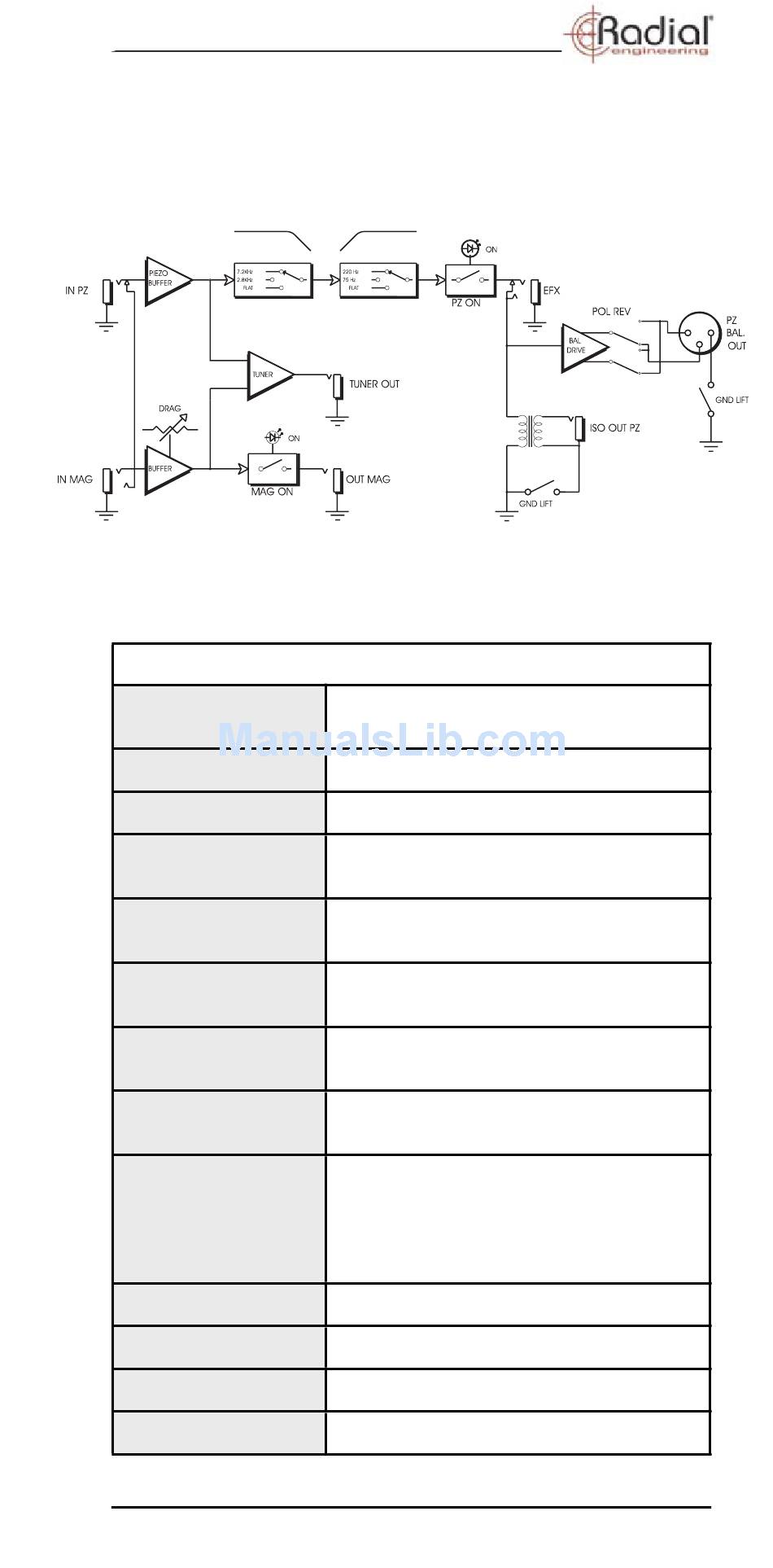

BLOCK DIAGRAM

HIGH-CUT
FILTER
Radial PZ-DI Specifi cations
Acoustic Piezo Input:
LOW-CUT Filter:
HI-CUT Filter:
Effects Loop (Acoustic
Piezo):
Acoustic Output:
Electric Pickup Input
Drag Control:
Electric Pickup Output:
Tuner output:
XLR Output:
Power supply:
Size (W x D x H):
Weight:

Warranty:

Radial Engineering Ltd.
LOW-CUT
FILTER
¼" Phone unbalanced,
10 Meg Ohm input impedance
Low frequency cut-off at 75Hz and 220Hz
High frequency cut-off at 2.8kHz and 7.2kHz
¼" TRS Phone unbalanced insert type
Tip= effects send, Ring= effects return
¼" Phone unbalanced,
10k ohm output impedance
¼" Phone unbalanced,
Variable 10k - 1 MegOhm input impedance
¼" Phone unbalanced,
10k Ohm output impedance
¼" Phone unbalanced,
10k ohm output impedance
XLR balanced 600 ohm mic-level,
pin-out (AES standard):
pin 1 ground
pin 2 hot (+)
pin 3 cold (-)
15VDC, 400mA (included), center pin positive
5.75"x 3.75"x1.99" (146 x 95 x 50mm)
1.75 lbs. (0.8 kg)
3 Years, transferable
9
™
PZ-DI User Guide
