(optional) as provided by your network administrator.

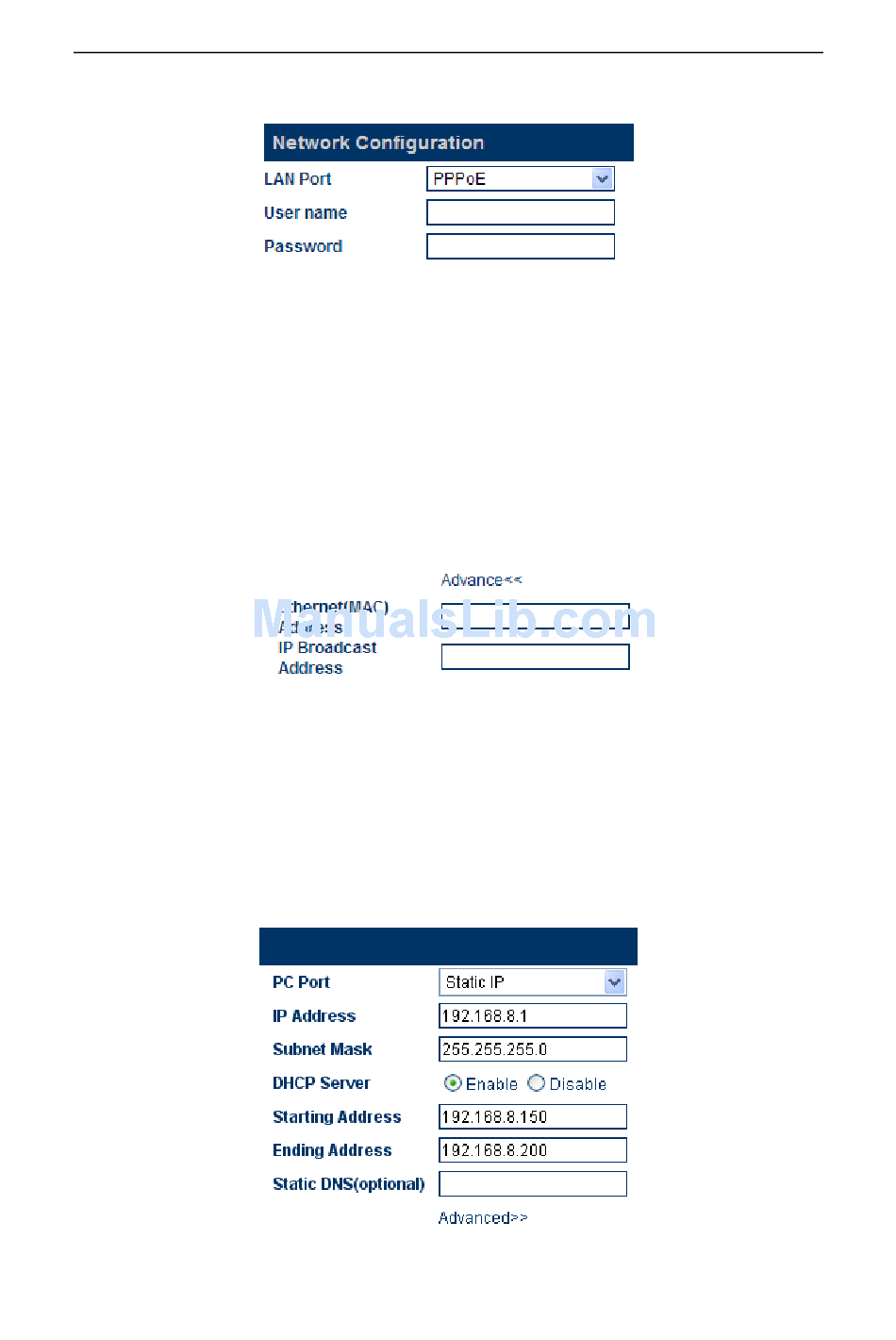

3） PPPoE
PPPoE is a common dial up method for you network modem (Cable / xDSLs).
Choose this if your network environment requires.
Password as provided by your ISP.
4）802.1q VLAN
This QoS feature requires your QoS support of your network to improve voice data
traffics. Please consult your network administrator for proper settings.
5） Advanced...
The Advanced settings allow the user to set the broadcast address and to clone a
MAC address instead of using the factory preset MAC address. Please consult your
network administrator for further information.

3.10.2 PC Port Configurations

The PC Port allows addition network devices to be attached behind the GoIP Gateway. It
offers both Bridge and Static IP modes to meet your network topology. It is factory preset
to the Static IP mode with the IP address 192.168.8.1.
1） Bridge Mode
One Chunnel GSM VoIP Gateway
Enter the User Name and
41
