Phone Information; Network Information - Discovery Telecom GoIP User Manual

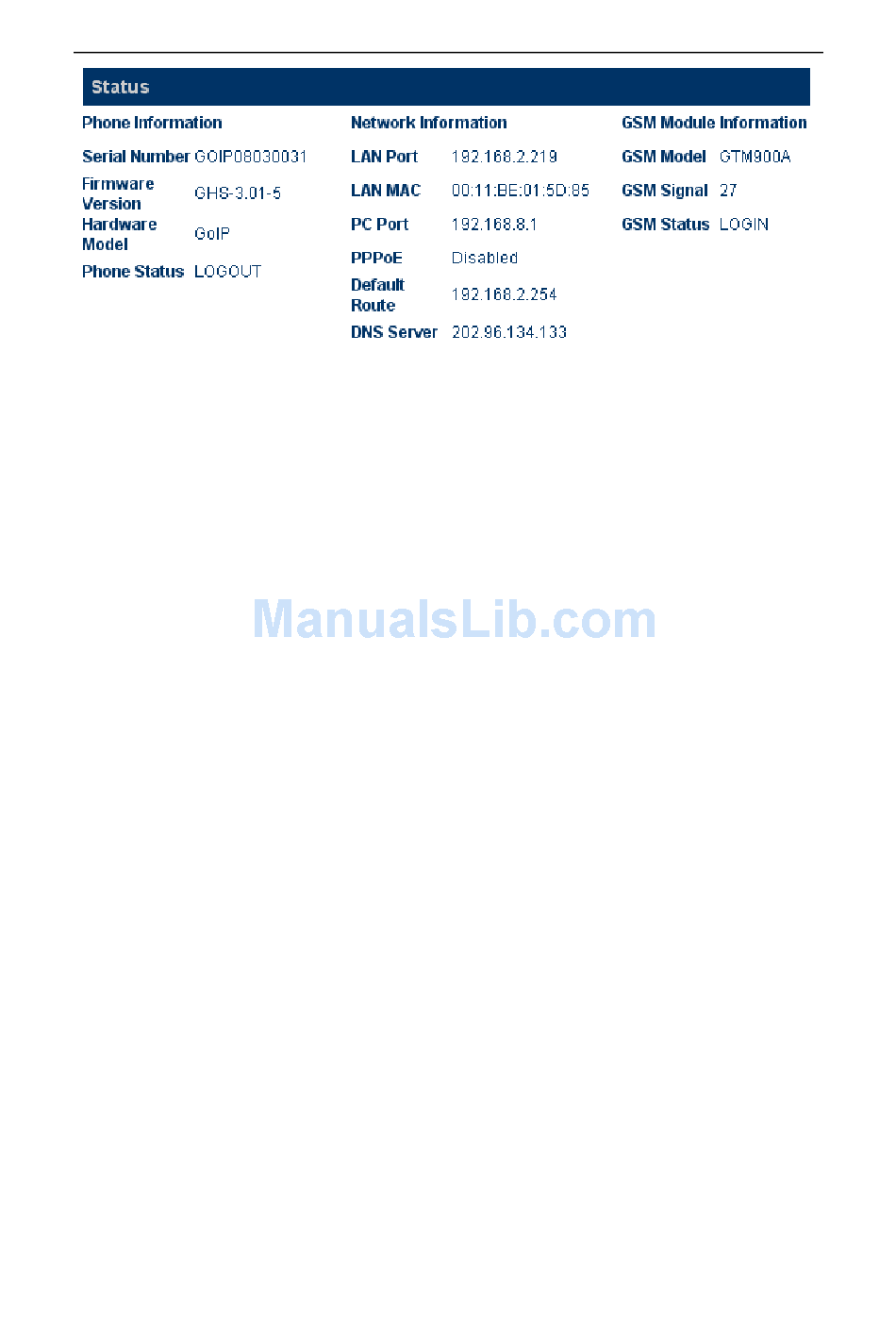

3.2.1 Phone Information

A. Serial Number
Each Gateway has a unique serial number assigned by the factory such as
GOIP08030031
. This number is important for centralized configuration, technical
support, and warranty. This number is printed on the bottom of the Gateway and is
associated with your software license.
B. Firmware Version
Firmware version identifies the firmware version of the Gateway such as
C. Hardware Mode
This field shows terminal's hardware type.
D. Phone Status
This field shows the status of Line's connection status. If the connection is successful,
this field displays LOGIN; otherwise, it displays LOGOUT.

3.2.2 Network Information

A. LAN Port Configuration
This field displays the status of the LAN port.
B. PC Port Configuration
This field displays the status of the LAN port.
C.
PPPoE
If PPPoE is enabled, it displays its status.
D. Default Route
This field displays the IP address of the default routing Gateway.
E. DNS Server
This field displays the IP address of the Domain Name Server.
One Chunnel GSM VoIP Gateway
GHS-3.01-5.
11
