D） Fast Start
Enable or disable the Fast Start in H.225.0. Most H.323 terminals or Gateways
support the Fast Start feature.

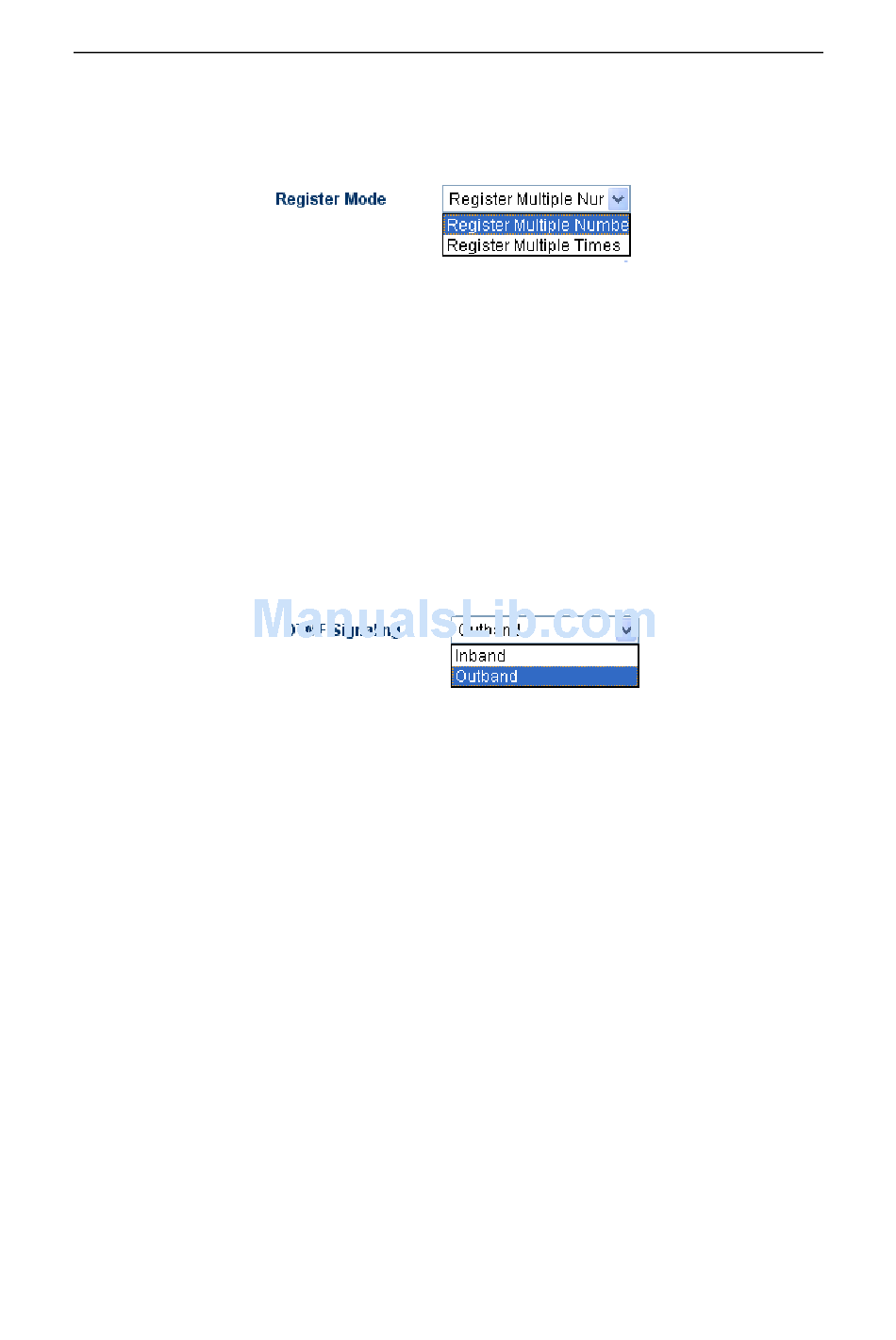

E） Register Mode
Register Multiple Numbers: The GoIP Gateway sends registration request in one
Register Multiple Times: In this mode, the GoIP Gateway will register like two
F） DTMF Signaling
1） DTMF TYPE
DTMF signals can be sent over to the called party once a call is established. GoIP
Gateway supports both Inband and Outband DTMF signal types.
For Inband DTMF type, DTMF signals are generated locally at the calling phone and
then send to the called party as part of the voice signals. This method is not reliable
since the quality of the DTMF signals is subject to the Codec used and the quality of
the network traffics.
For Outband DTMF type, DTMF signal commands are sent to the called party and the
actual DTMF signals are actually generated by the called party. This method allows
more reliable DTMF signaling. However, it requires the called party to support this
feature in order for this to work properly. GoIP Gateway supports RFC2833 Outband
DTMF protocols.
2）DTMF Payload Type
DTMF Payload Type is by RFC2833 protocol to carry the tone definitions for various
applications. The default DTMF Payload Type is 96. Please consult your VoIP service
provider for the proper setting if required.
.

3.4.2 SIP Phone

Set the "Endpoint Type" to SIP Phone for connections to SIP Servers.
signaling packet to the gatekeeper. In the mode, one
signaling packet includes two VoIP line's registration
information.
terminals.
One Chunnel GSM VoIP Gateway
20
