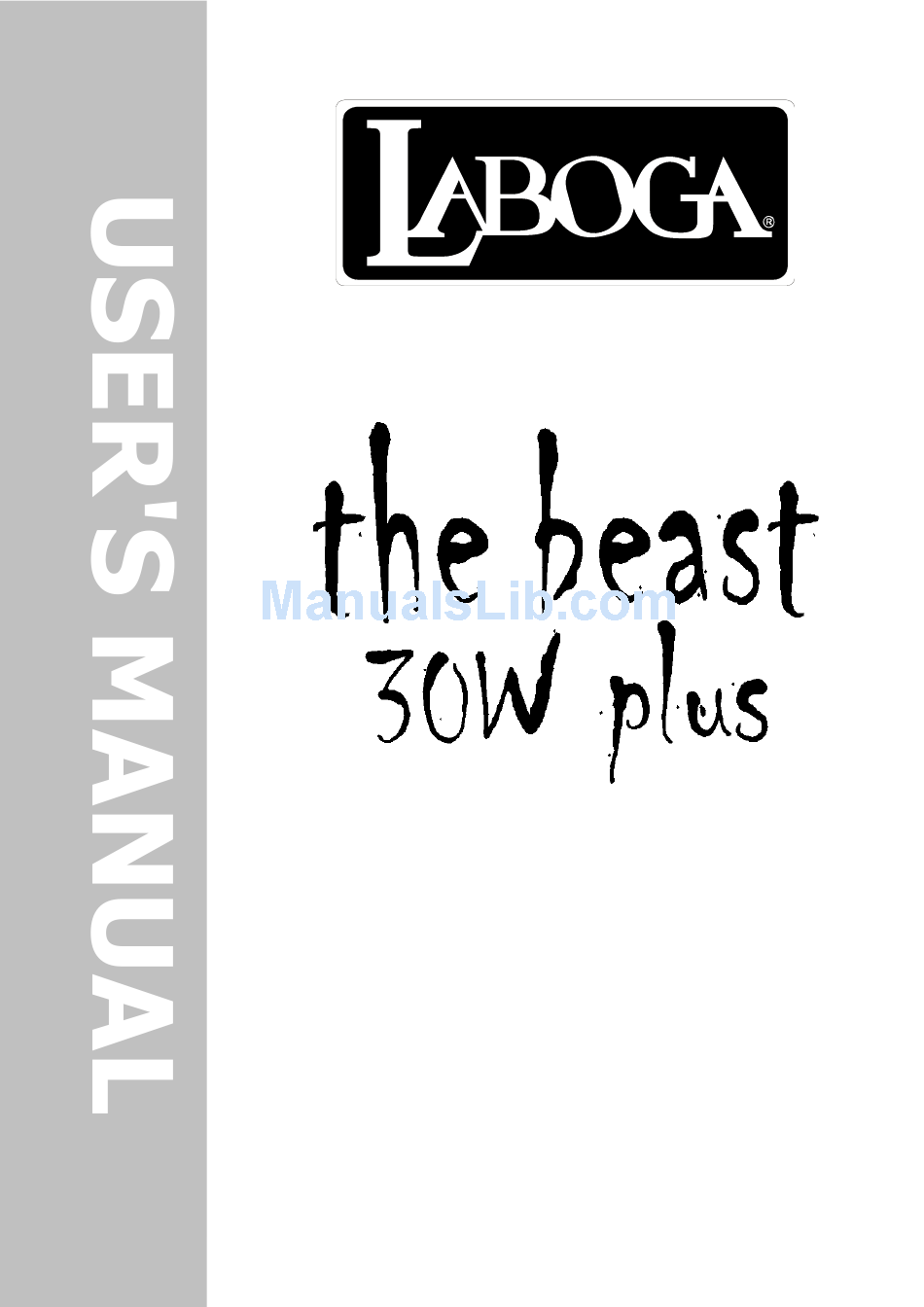

- Page 1 Hand made, 30/15 Watt, Tube Guitar Amplifier Models: The Beast 30W Plus - head The Beast 30W Plus – combo Ver. 1.0...
- Page 2 LABOGA – The Beast 30 Plus Congratulations on purchasing a tube guitar amplifier and joining Laboga Family. Thank you for your trust. The Alligator belongs to the world’s top tube constructions. It is designed with over 35-years of experience in creating and servicing top quality equipment.
-
Page 3: Table Of Contents
LABOGA – The Beast 30 Plus TABLE OF CONTENTS: ..................3 MPLIFIER EATURES ..................4 AFETY PRECAUTIONS ..............5 ECHNICAL INTS ROPER SAGE ....................6 RONT ANEL ......................8 ANEL ......................10 UBES ....................11 ECHNICAL ..................13 ROUBLESHOOTING ....................15 ONNECTIONS AMPLIFIER FEATURES - power capacity: 30 and 15 W, - power tubes: 4 ×... -
Page 4: Safety Precautions
do not install the apparatus near any heat sources and do not cover the back side of the amplifier, let the airflow cool the amplifier. Always use the highest quality signal cables (we recommend Laboga cable “Way of sound”) and volume signal cables. Using improper speaker cables could cause damage to the amplifier. -
Page 5: Technical Hints, Proper Usage
LABOGA – The Beast 30 Plus TECHNICAL HINTS, PROPER USAGE • Do not use the amplifier, before connecting it to the correct cabinet, or using built-in fake load (Speaker Off mode at the back panel). • After switching Power On, wait about 30-60 seconds on Standby (“0”) until tubes get heated. -
Page 6: Front Panel
LABOGA – The Beast 30 Plus FRONT PANEL Combo version : Head version: 1. Input switched to the drive channel, then Input jack socket (TS 6,3” jack) to pressing this button changes connect the guitar to the amplifier. Clean/Crunch channel... - Page 7 LABOGA – The Beast 30 Plus Drive Gain Master Volume Master volume control. Gain control for the distorted channel. HINT: Apart from controlling With a little value you can obtain fuzz volume, it influences saturation of the effect or soft overdrive. By turning the power tubes.
-
Page 8: Rear Panel
LABOGA – The Beast 30 Plus REAR PANEL Combo: Head: 1. Main fuse integrated with mains connection amplifier, which power supply socket bypasses front-panel channel switches. Slo-Blo fuse T1,25A is in the case, integrated with 3. Return socket power supply socket. - Page 9 LABOGA – The Beast 30 Plus alternative preamplifier, including Headphones volume is controlled by simple stomp box. Master Volume knob at the front panel. 6. Power output socket for a 4 ohm Note: the simulation tone character impedance cabinet might...
-
Page 10: Tubes
LABOGA – The Beast 30 Plus TUBES Tube placement in the chassis V1 – 12AX7 preamp tube. It's the very first tube stages of the preamplifier. Therefore it might produce an effect called microphonic. It's a normal effect varying on the tube. First half of this tube works only for drive channel and the second one works for both. -
Page 11: Technical Data
LABOGA – The Beast 30 Plus TECHNICAL DATA INPUTS: • Guitar input sensitivity: -10 dBV • Maximum signal level: +4 dBV • Input impedance: 1 MΩ OUTPUTS: • Power output impedance: - 4 Ω output impedance - 8 Ω output impedance - 16 Ω... -
Page 12: Troubleshooting
5). If you do, check if any of preamp tubes aren’t broken by swapping them. If there is still no result, contact authorized Laboga service or any Laboga retailer. 6). If you can’t hear the guitar, contact Laboga service or any Laboga retailer. Clean channel works, but Check if any Drive Gain or volume knob isn’t turned down. - Page 13 V2. It could happen, that sounds won’t stop even if the Master is turned down - then contact Laboga service and tell your observations. Footswitch won’t change Unplug the cable from the Footswitch and try to change channels;...
-
Page 14: Connections
LABOGA – The Beast 30 Plus CONNECTIONS Page 14... - Page 15 LABOGA – The Beast 30 Plus Page 15...
- Page 16 LABOGA – The Beast 30 Plus ALL RIGHTS RESERVED © 2012 LABOGA Page 16...
