Page 1: Power Supply

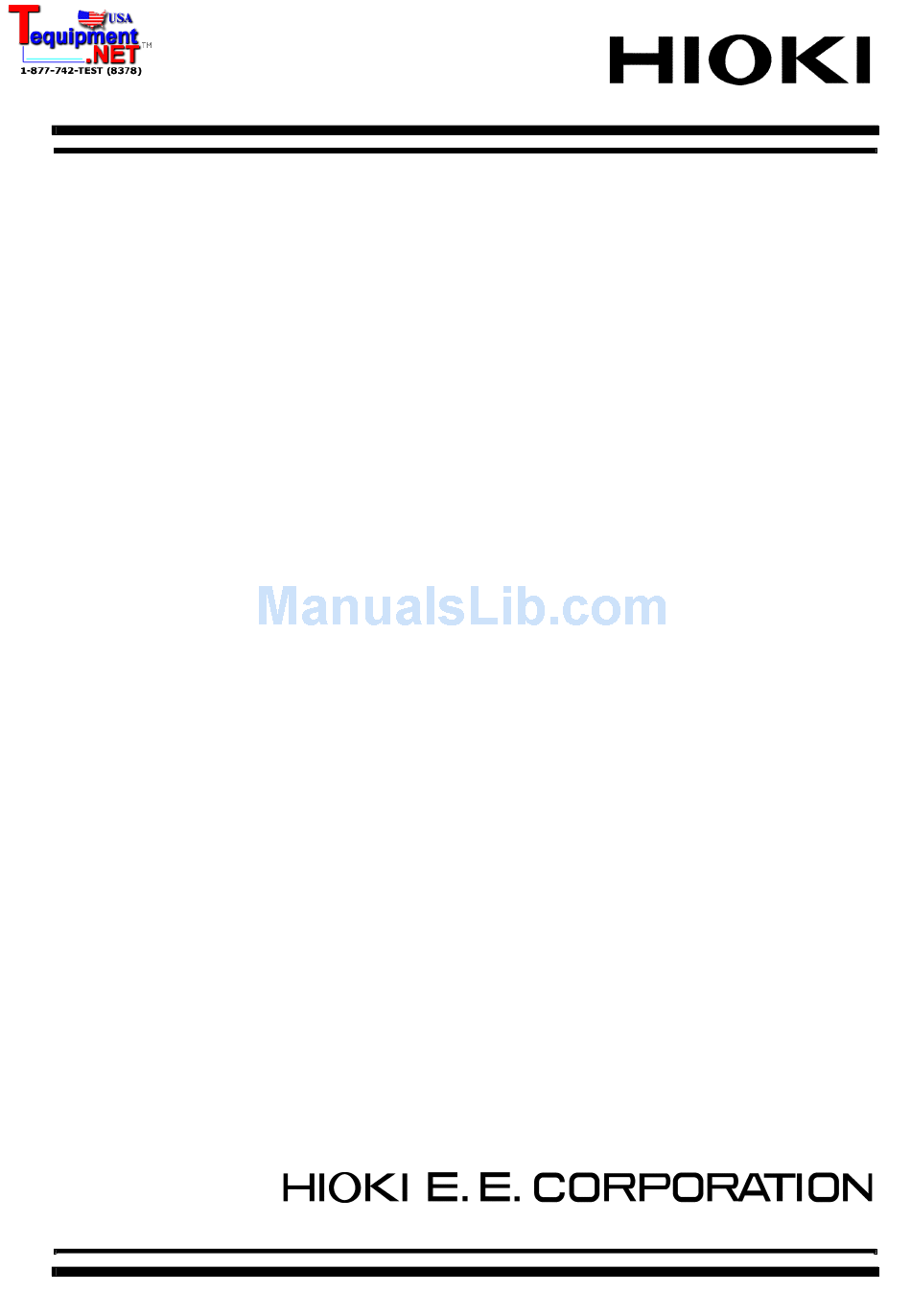

INSTRUCTION MANUAL For... 3269 POWER SUPPLY... -
Page 3: Table Of Contents
Contents Contents Introduction ............... 1 Inspection..............1 Safety Notes ............. 2 Operating Precautions ..........5 Chapter 1 Overview Product Overview ........9 Names of Parts..........9 Chapter 2 Measurement Procedure Preparations ..........11 Measurement Procedure ......12 Chapter 3 Specifications Chapter 4 Maintenance and Service Replacing the fuse........ - Page 4 Contents...
-
Page 5: Introduction
Introduction Introduction Thank you for purchasing the HIOKI “Model 3269 POWER SUPPLY”. To obtain maximum perfor- mance from the instrument, please read this man- ual first, and keep it handy for future reference. Inspection When you receive the instrument, inspect it care- fully to ensure that no damage occurred during shipping. -
Page 6: Safety Notes
Safety Notes Safety Notes This instrument is designed to comply with IEC 61010 Safety Standards, and has been thoroughly tested for safety prior to ship- ment. However, mishandling during use could result in injury or death, as well as damage to the instrument. Be certain that you understand the instructions and precau- tions in the manual before use. - Page 7 Safety Notes Indicates AC (Alternating Current). Indicates the ON side of the power switch. Indicates the OFF side of the power switch. The following symbols in this manual indicate the relative importance of cautions and warnings. Indicates that incorrect operation presents an ex- treme hazard that could result in serious injury or death to the user.
- Page 8 Safety Notes Measurement categories (Overvoltage categories) To ensure safe operation of measurement instruments, IEC 61010 establishes safety standards for various electrical envi- ronments, categorized as CAT I to CAT IV, and called mea- surement categories. These are defined as follows. CAT I : Secondary electrical circuits connected to an AC elec- trical outlet through a transformer or similar device.
-
Page 9: Operating Precautions
Before Use Before using the product the first time, verify that it operates normally to ensure that the no damage occurred during storage or shipping. If you find any damage, contact your dealer or Hioki representa- tive. - Page 10 Operating Precautions • To avoid accidents, when using other mea- surement instruments with this one, observe the usage precautions described for each instrument. • To avoid electric shock or damage, when connecting the clamp-on probe to a mea- surement instrument that does not have its input terminals isolated from the chassis, or to an instrument that does not have it input terminals isolated from one another...
- Page 11 Operating Precautions Observe the following to avoid damage to the instrument. • Installation and Operating Environment Between 0 and 40°C(32 and 104°F); 80% RH or less; indoors only. • Do not store or use the instrument where it could be exposed to direct sunlight, high tem- perature or humidity, or condensation.
- Page 12 Operating Precautions...
-
Page 13: Chapter 1 Overview
Chapter 1 Overview Chapter 1 Overview 1.1 Product Overview This unit is a special-purpose power supply for the 3273-50, 3273, 3274, 3275, and 3276 CLAMP ON PROBE. Connect up to four clamp-on probes. 1.2 Names of Parts Front view Power indicator Power supply receptacles 1 Not used 2 Ground... -
Page 14: Rear View
Chapter 1 Overview Rear view Grounding terminal Power switch Power supply connector Fuse holder... -
Page 15: Chapter 2 Measurement Procedure
Chapter 2 Measurement Procedure Measurement Chapter 2 Procedure 2.1 Preparations • To avoid accidents, when using other mea- surement instruments with this one, observe the usage precautions described for each instrument. • To avoid electric shock or damage, when connecting the clamp-on probe to a mea- surement instrument that does not have its input terminals isolated from the chassis, or to an instrument that does not have it... -
Page 16: Measurement Procedure
(2-contacts + ground). Connect the power plug of the sensor to be used to the power receptacle of the 3269. Turn the 3269 power switch on, and check that the front panel power indicator lights. 2.2 Measurement Procedure See the 3273-50, 3273, 3274, 3275, or 3276 instruction manual. -
Page 17: Chapter 3 Specifications
Chapter 3 Specifications Chapter 3 Specifications Product Specifications 3273-50,3273,3274,3275,3276 CLAMP Compatible sensors ON PROBE Number of power supply connectors Output voltage ±12 V±0.5 V Rated output current ±2.5 A (sum total of all channels) Ripple voltage 50 mVp-p or less Within output voltage limits indicated Load influence above for current output in the range 0 to... - Page 18 Chapter 3 Specifications Accessories Instruction Manual Power cord Spare fuse (stored in Fuse holder) φ (250V T3.15AL 5 × 20mm) Safety EN61010-1:2001, Pollution Degree 2 EMC EN61326:1997+A1:1998+A2:2001 Standards applying +A3:2003 EN61000-3-2:2000 EN61000-3-3:1995+A1:2001...
-
Page 19: Chapter 4 Maintenance And Service
Chapter 4 Maintenance and Service Maintenance and Chapter 4 Service 4.1 Replacing the fuse • To avoid electric shock, turn off the power switch • Replace the fuse only with one of the spec- ified characteristics and voltage and cur- rent ratings. -
Page 20: Cleaning And Service
• When sending the instrument for repair, pack carefully to prevent damage in transit. Include cushioning material so the instrument cannot move within the package. Be sure to include details of the problem. Hioki cannot be responsi- ble for damage that occurs during shipment. - Page 23 HIOKI 3269 POWER SUPPLY Instruction Manual Publication date: September 2006 Revised edition 1 Edited and published by HIOKI E.E. CORPORATION Technical Support Section All inquiries to International Sales and Marketing Department 81 Koizumi, Ueda, Nagano, 386-1192, Japan TEL: +81-268-28-0562 / FAX: +81-268-28-0568 E-mail: os-com@hioki.co.jp...
- Page 24 HEAD OFFICE 81 Koizumi, Ueda, Nagano 386-1192, Japan TEL +81-268-28-0562 / FAX +81-268-28-0568 E-mail: os-com@hioki.co.jp / URL http://www.hioki.co.jp/ HIOKI USA CORPORATION 6 Corporate Drive, Cranbury, NJ 08512, USA TEL +1-609-409-9109 / FAX +1-609-409-9108 3269A981-01 06-09H Printed on recycled paper...
