Contents Introduction Inspection Notes on Safety Precautions Chapter 1 Overview 1.1 Product Overview 1.2 Names of Parts Chapter 2 Specifications 2.1 Product Specifications 2.2 Standards Applying Chapter 3 Measurement Procedure 3.1 Preparations 3.2 Measurement Procedure Chapter 4 Description of Parts 4.1 Power Supply Receptacle 4.2 How to Change the Power Supply Fuse and Change the Power Supply Voltage... - Page 5 ――――――――――――――――――――――――――― Introduction Thank you for purchasing the HIOKI "Model 3272 POWER SUPPLY." To obtain maximum performance from the product, please read this manual first, and keep it handy for future reference. Inspection When you receive the product, inspect it carefully to ensure that no damage occurred during shipping.
-
Page 6: Notes On Safety
――――――――――――――――――――――――――― Notes on Safety WARNING This product is designed to comply with IEC 61010 Safety Standards, and has been thoroughly tested for safety prior to shipment. However, mishandling during use could result in injury or death, as well as damage to the product. Be certain that you understand the instructions and precautions in the manual before use. - Page 7 ――――――――――――――――――――――――――― Safety Symbols This manual contains information and warnings essential for safe operation of the product and for maintaining it in safe operating condition. Before using it, be sure to carefully read the following safety precautions. symbol printed on the product indicates that the user should refer to a corresponding topic in the manual (marked with the...
- Page 9 ――――――――――――――――――――――――――― Measurement categories (Overvoltage categories) To ensure safe operation of measurement products, IEC 61010 establishes safety standards for various electrical environments, categorized as CAT I to CAT IV, and called measurement categories. These are defined as follows. CAT I : Secondary electrical circuits connected to an AC electrical outlet through a transformer or similar device.
- Page 10 ――――――――――――――――――――――――――― Higher-numbered categories correspond to electrical environments with greater momentary energy. So a measurement device designed for CAT III environments can endure greater momentary energy than a device designed for CAT II. Using a measurement product in an environment designated with a higher-numbered category than that for which the product is rated could result in a severe accident, and must be carefully avoided.
-
Page 11: Precautions
Preliminary Check Before using the product the first time, verify that it operates normally to ensure that the no damage occurred during storage or shipping. If you find any damage, contact your dealer or Hioki representative. ―――――――――――――――――――――――― Precautions... - Page 13 ――――――――――――――――――――――――――― WARNING To avoid electrical accidents and to maintain the safety specifications of this instrument, connect the power cord only to a 3-contact (two-conductor + ground) outlet. CAUTION To avoid damage to the product, protect it from physical shock when transporting and handling. Be especially careful to avoid physical shock from dropping.
- Page 14 When sending the product for repair, pack carefully to prevent damage in transit. Include cushioning material so the instrument cannot move within the package. Be sure to include details of the problem. Hioki cannot be responsible for damage that occurs during shipment. ―――――――――――――――――――――――― Precautions...
-
Page 15: Chapter 1 Overview

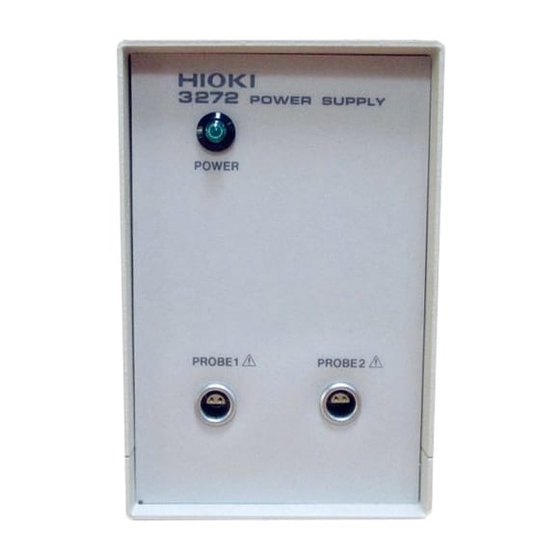

――――――――――――――――――――――――――― Chapter 1 Overview 1.1 Product Overview This unit is a special-purpose power supply for the 3273-50, 3273, 3274, 3275, and 3276 CLAMP ON PROBE. ―――――――――――――――――――――――― Chapter 1 Overview... - Page 18 ――――――――――――――――――――――――――― ―――――――――――――――――――――――― Chapter 1 Overview...
-
Page 19: Chapter 2 Specifications
――――――――――――――――――――――――――― Chapter 2 Specifications 2.1 Product Specifications Compatible 3273-50, 3273, 3274, 3275, 3276 sensors CLAMP ON PROBE Number of power supply connectors Output voltage 12 V 0.5 V Rated output 600 mA (sum total of all channels and current all output voltages) Ripple voltage 3 mVp-p or less (at rated output current) Load influence... -
Page 20: Standards Applying
――――――――――――――――――――――――――― Location for use Indoor,altitude up to 2000 m (6562 feet) Rated supply 100 V AC (120, 220, and 240 V require voltage specification) (Voltage fluctuation of 10% from the rated supply voltage are taken into account.) Rated supply 50/60 Hz frequency Maximum rated 20 VA... -
Page 21: Chapter 3 Measurement Procedure
――――――――――――――――――――――――――― Chapter 3 Measurement Procedure ―――――――――――――――――――――――― Chapter 3 Measurement Procedure... -
Page 23: Measurement Procedure
(2) Connect the power plug of the sensor to be used to the power receptacle of the 3272. Turn the 3272 power switch on, and check that the front panel power indicator lights. 3.2 Measurement Procedure See the 3273-50, 3273, 3274, 3275, or 3276 instruction manual. - Page 24 ――――――――――――――――――――――――――― AC(f=50Hz) (1) 3273-50 current (A) AC(f=50Hz) (2) 3274 current (A) AC(f=50Hz) 100 200 300 400 500 600 700 (3) 3275 current (A) ―――――――――――――――――――――――― Chapter 3 Measurement Procedure...
- Page 25 ――――――――――――――――――――――――――― AC(f=50Hz) (4) 3276 current (A) AC(f=50Hz) (5) 3273 current (A) Fig.1 Current consumption* vs. current to be measured(typical) *The sum total of a positive and negative current consumption ―――――――――――――――――――――――― Chapter 3 Measurement Procedure...
- Page 26 ――――――――――――――――――――――――――― ―――――――――――――――――――――――― Chapter 3 Measurement Procedure...
-
Page 27: Chapter 4 Description Of Parts
4.2 How to Change the Power Supply Fuse and Change the Power Supply Voltage The power supply fuse for the 3272 unit, and the power supply voltage selector, are housed in the power input socket on the rear panel. ――――――――――――――――――――――――... - Page 28 ――――――――――――――――――――――――――― WARNING To avoid electric shock, turn off the power switch and disconnect the clamp on probe before replacing the fuse. Replace the fuse only with one of the specified characteristics and voltage and current ratings. Using a non-specified fuse or shorting the fuse holder may cause a life-threatening hazard.

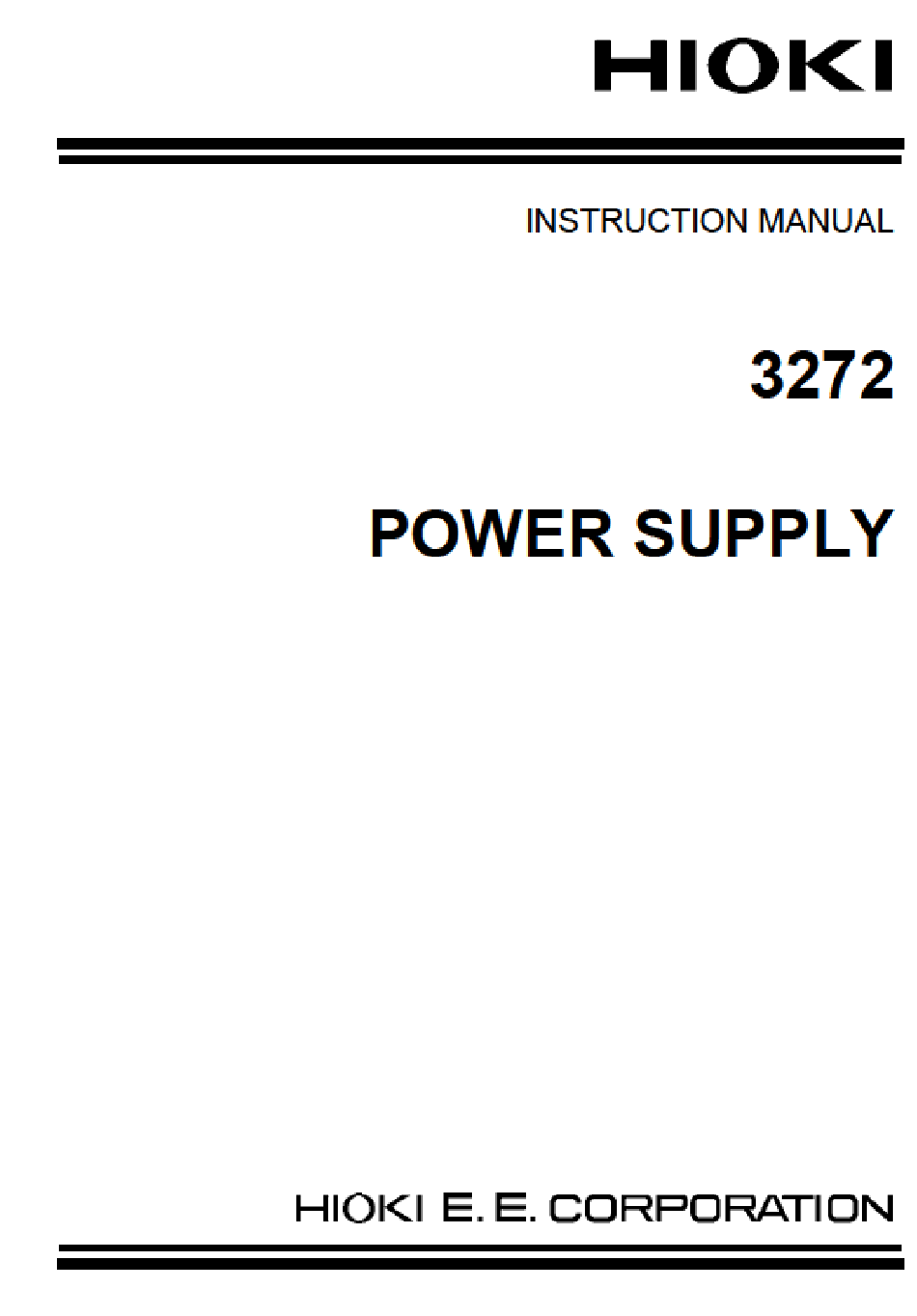

- Page 33 HIOKI 3272 POWER SUPPLY Instruction Manual Publication date: September 2006 Revised edition 7 Edited and published by HIOKI E.E. CORPORATION Technical Support Section All inquiries to International Sales and Marketing De- partment 81 Koizumi, Ueda, Nagano, 386-1192, Japan TEL: +81-268-28-0562 / FAX: +81-268-28-0568 E-mail: os-com@hioki.co.jp...
