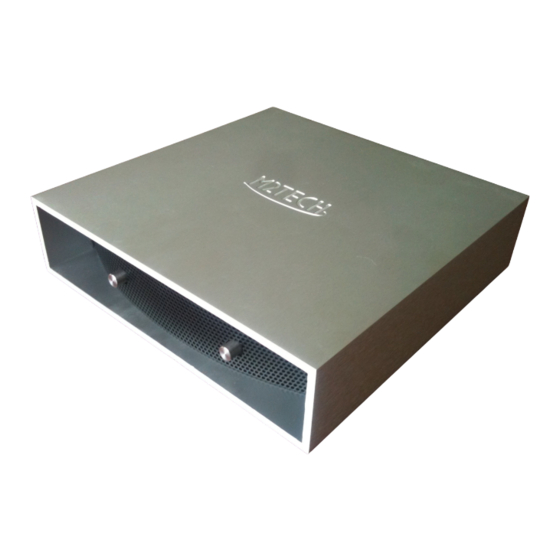

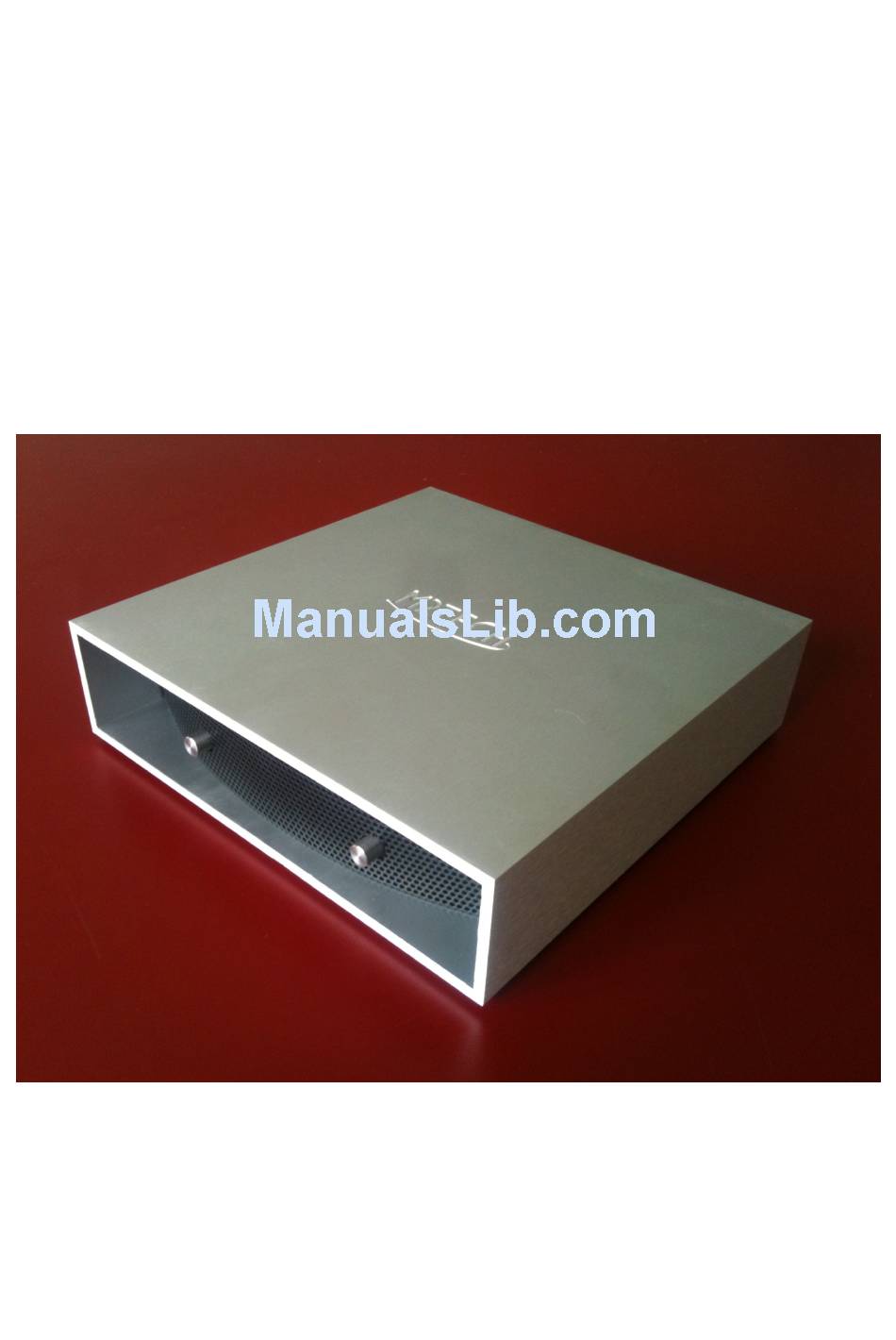

- Page 1 M2TECH PALMER POWER STATION LOW NOISE BATTERY POWER SUPPLY/CHARGER USER MANUAL REV. P A – 10/2011...
- Page 2 Materials recycling helps saving natural resources. For more in-depth information about recycling this product, please contact M2Tech Srl. Copyright © 2011, M2Tech Srl...
- Page 3 A – NOVEMBER 2011 Dear customer, thank you for purchasing PALMER POWER STATION. What you have is not just a simple power supply, but a first-rate dedicated power supply with many unique features conceived to obtain the best audio performance out of the YOUNG 384/32 DAC and other 15V-operated M2Tech products.
-
Page 4: Table Of Contents
1. Unpacking........................5 2. Front Panel ........................6 3. Back Panel........................7 4. Connections........................8 5. Operation .........................9 5.1. Charge policy ......................9 5.2. Forced battery operation ...................9 5.3. Battery safety and life duration..................9 5.4. Placement .......................10 6. Technical Specifications ....................11 Copyright © 2011, M2Tech Srl... -
Page 5: Unpacking
REVISION P A – NOVEMBER 2011 1. Unpacking The PALMER POWER STATION box contains the following items: • Palmer Power Station • 1 supply cable terminated with 5.5/2.1mm plug on one end and with Bulgin heavy duty plug on the other end •... -
Page 6: Front Panel
A – NOVEMBER 2011 2. Front Panel 1) Mains switch. Push to apply mains power to the PALMER POWER STATION. Depending on the status of the output switch (item 2) and the battery charge level, switching power on may start battery charge. Also, charge may be terminated at any time by switching power off. -
Page 7: Back Panel
5) Outputs. Connect the supply cable provided in the package. Positive is the upper hole, negative is the lower hole. 6) Charge indicator. Fuses holder. Contains two 2.5A slow blow 5x20mm fuses. 7) Mains socket. Connect the power cord included in the package. Copyright © 2011, M2Tech Srl... -
Page 8: Connections
Connect the female plug of power cord to the mains socket (Page 7, no.7) of PALMER POWER STATION. Connect the Bulgin plug of the supply cable to one of the PALMER POWER STATION output connectors (Page 7, no.5). Connect the 5.5/2.1mm plug of the supply cable to a 15V-operated M2Tech device. Of course, two cables may be used when two devices need supply;... -
Page 9: Operation
5.3. Battery safety and life duration The Li-Po battery used inside the PALMER POWER STATION is a very high quality unit, with long life and high surge current. To avoid damaging it, protections are included in the PALMER POWER STATION circuit, as well as inside the battery itself. -
Page 10: Placement
Li-Ion battery) which needs to be properly used to avoid damages. Particularly, do not expose the PALMER POWER STATION to excessive heat or cold or fire, nor drop liquids on it. Do not short-circuit the outputs. Should the PALMER POWER STATION be exposed to temperature beyond the allowed range, put the unit in a normal environment and allow for at least one hour before operating it. -
Page 11: Technical Specifications
Operative temperature range:... 0°C to 40°C Size: ..........200x50x200mm (w x h x d, cabinet) 200x55x210mm (w x h x d, with connectors and feet) 360x120x260mm (w x h x d, box) Weight:..........2.5kg (unit only) 3kg (box) Copyright © 2011, M2Tech Srl...
