- Page 1 M2TECH VO UPPLY LOW N OISE B ATTERY P OWER S UPPLY/CHARGER USER M ANUAL ...
- Page 2 Materials recycling helps saving natural resources. For more in-depth information about recycling this product, please contact M2Tech Srl. Copyright © 2012, M2Tech Srl...
- Page 3 This allows for uninterrupted operation anc certain full charge time. vo UPPLY h as two outputs to power two M2Tech 9V devices, like the hi ace vo and the vo ...
-
Page 4: Table Of Contents
2. Front Panel ........................6 3. Connections ........................7 4. Operation modes ......................8 4.1. Charge Inhibit ......................8 4.2. Automatic Charge Start ..................... 8 5. Notes on Battery Usage....................9 6. Technical Specifications ....................10 Copyright © 2012, M2Tech Srl... -
Page 5: Unpacking

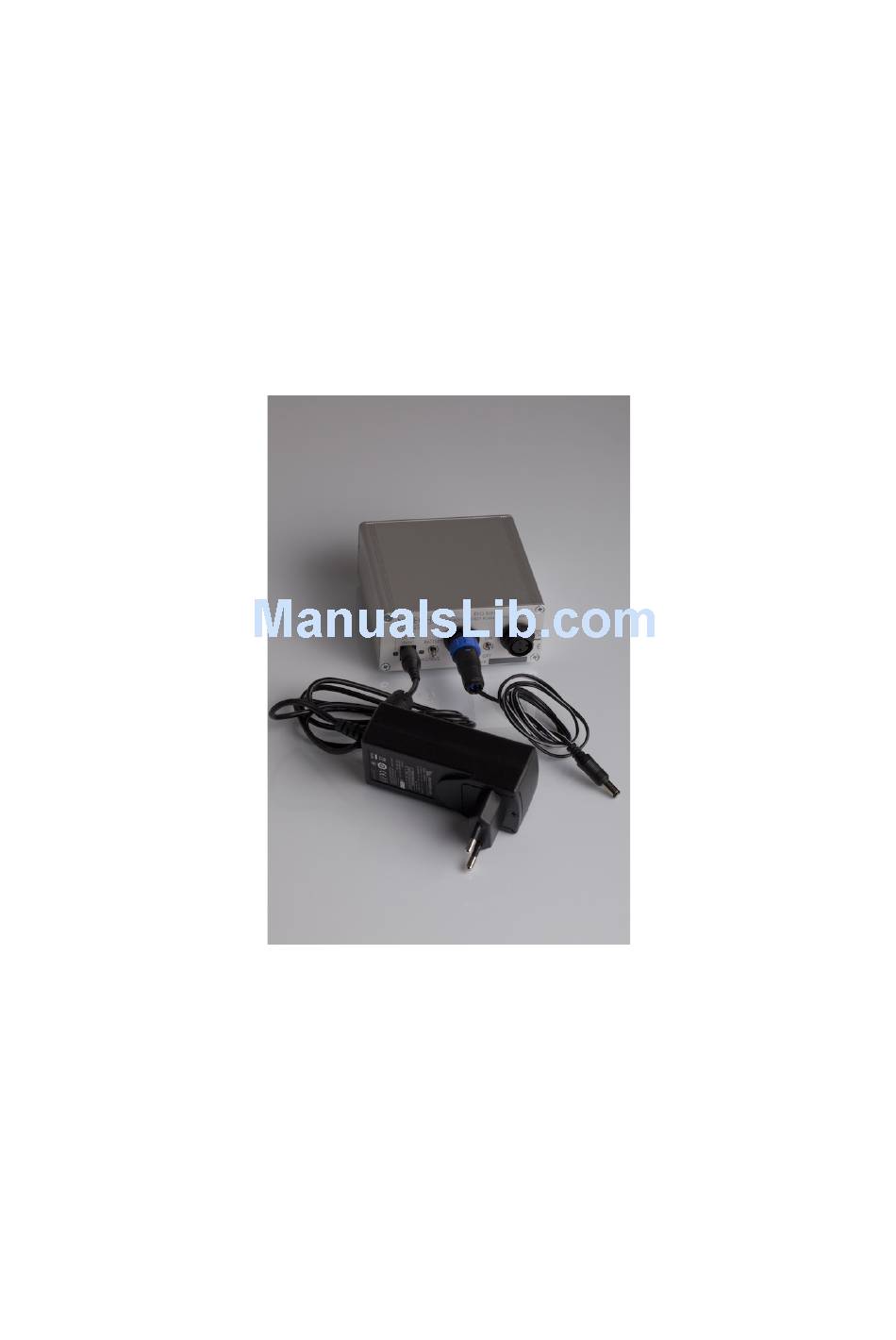

• 15V/2A wall adaptor or 15V/2A adaptor with detachable power cord Should any item be missing, please contact your dealer for a warranty claim. Please note the supply cable may be obtained as a separate item if needed. Copyright © 2012, M2Tech Srl... -
Page 6: Front Panel
UPPLY and 5) Power indicator. Turns on when the wall adaptor is connected to the to a mains socket. 6) Charge indicator. Turns on when charge is in progress. Copyright © 2012, M2Tech Srl... -
Page 7: Connections
Connect the Bulgin plug of each supply cable to one of the (Page 6, no.3). Connect the 5.5/2.1mm plug of each supply cable to a 9V-operated M2Tech device. Of course, one cable may be used when one device only needs supply; the other output will be unused. -
Page 8: Operation Modes
At the end of the charge time, the outputs automatically revert to the battery. The automatic charge start mode must be selected to manually enable the battery charge after the unit has automatically switched outputs off following to battery depletion in charge inhibit mode. Copyright © 2012, M2Tech Srl... -
Page 9: Notes On Battery Usage
Too cold or too hot a battery would result in an explosion when operated. Please refer to the specifications section (Page 10) for temperature limits. Copyright © 2012, M2Tech Srl... -
Page 10: Technical Specifications
TBD (low noise regulator, 0 to 500mA output current) Battery duration: .......min. 7 hours (@ 240mA output current) Battery charge time......3 hours +/- 30 minutes Battery charge cycles ......1000 Operative temperature range:....0°C to 40°C Size: ..........105x50x104mm (cabinet) 105x50x150mm (with connectors) Weight:..........400g Copyright © 2012, M2Tech Srl...
